Ro-ràdh
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new Generic replacement carburetor, model Xtruoqart#27126-06991. This carburetor is designed as a replacement part for Craftsman 987799610 and 987.799610 Chipper Shredder models.
Before proceeding with installation, please carefully read all instructions. It is crucial to compare the physical appearance of this carburetor with your original part to ensure compatibility, even if the model numbers match.
Fiosrachadh Sàbhailteachd
Thoir prìomhachas do shàbhailteachd an-còmhnaidh nuair a bhios tu ag obair le siostaman connaidh agus uidheam cumhachd. Faodaidh fàilligeadh ann a bhith a’ leantainn ceumannan sàbhailteachd dochann mòr no milleadh seilbh adhbhrachadh.
- Ensure the engine is turned off and cooled down before beginning any work.
- Cuir a-mach an uèir plug spark gus casg a chuir air tòiseachadh gun fhiosta.
- Obraich ann an àite le deagh fhionnarachadh gus casg a chur air anail a tharraing a-steach do cheò connaidh.
- Cuir ort uidheam dìon pearsanta (PPE) iomchaidh, leithid miotagan agus dìon-sùla.
- Handle fuel with extreme care. Keep away from open flames, sparks, and heat sources.
- Cuir às do sheann chonnadh agus pàirtean gu ciallach a rèir riaghailtean ionadail.
Susbaint pacaid
Bu chòir an rud a leanas a bhith sa phacaid agad:
- 1 x Generic Carburetor (Model Xtruoqart#27126-06991)
Note: Some package labels may display a part number instead of the model number.
Stàladh agus stàladh
This section outlines the general steps for replacing a carburetor. Specific procedures may vary slightly depending on your Craftsman chipper shredder model. Refer to your equipment's original service manual for detailed instructions.
- Ag ullachadh: Ensure the engine is off and cool. Disconnect the spark plug wire. Place a suitable container under the fuel line to catch any spilled fuel.
- Thoir air falbh Co-chruinneachadh Criathrag Adhair: Thoir air falbh taigheadas an criathrag adhair agus an criathrag adhair gu faiceallach gus faighinn chun charburator.
- Dì-cheangail an loidhne connaidh: Pinch off the fuel line or drain the fuel tank. Disconnect the fuel line from the old carburetor.
- Ceanglaichean a dhì-cheangal: Detach any throttle and choke linkages connected to the old carburetor. Note their positions for reassembly.
- Thoir air falbh an seann charburetor: Fuasgail an seann charbadair bhon iomadachd einnsein. Bi faiceallach mu ghaisgtean sam bith.
- Stàlaich Carburetor Ùr: Place new gaskets (if supplied or required) and mount the new Generic carburetor (Model Xtruoqart#27126-06991) onto the engine manifold. Secure with bolts.
- Ath-cheangail na Ceanglaichean agus an Loidhne Connaidh: Reattach the throttle and choke linkages to their correct positions. Reconnect the fuel line.
- Ath-chruinnich an criathrag adhair: Ath-stàlaich an criathrag adhair agus taigheadas a’ chriathrag adhair.
- Sgrùdaidhean deireannach: Ensure all connections are secure and there are no fuel leaks. Reconnect the spark plug wire.

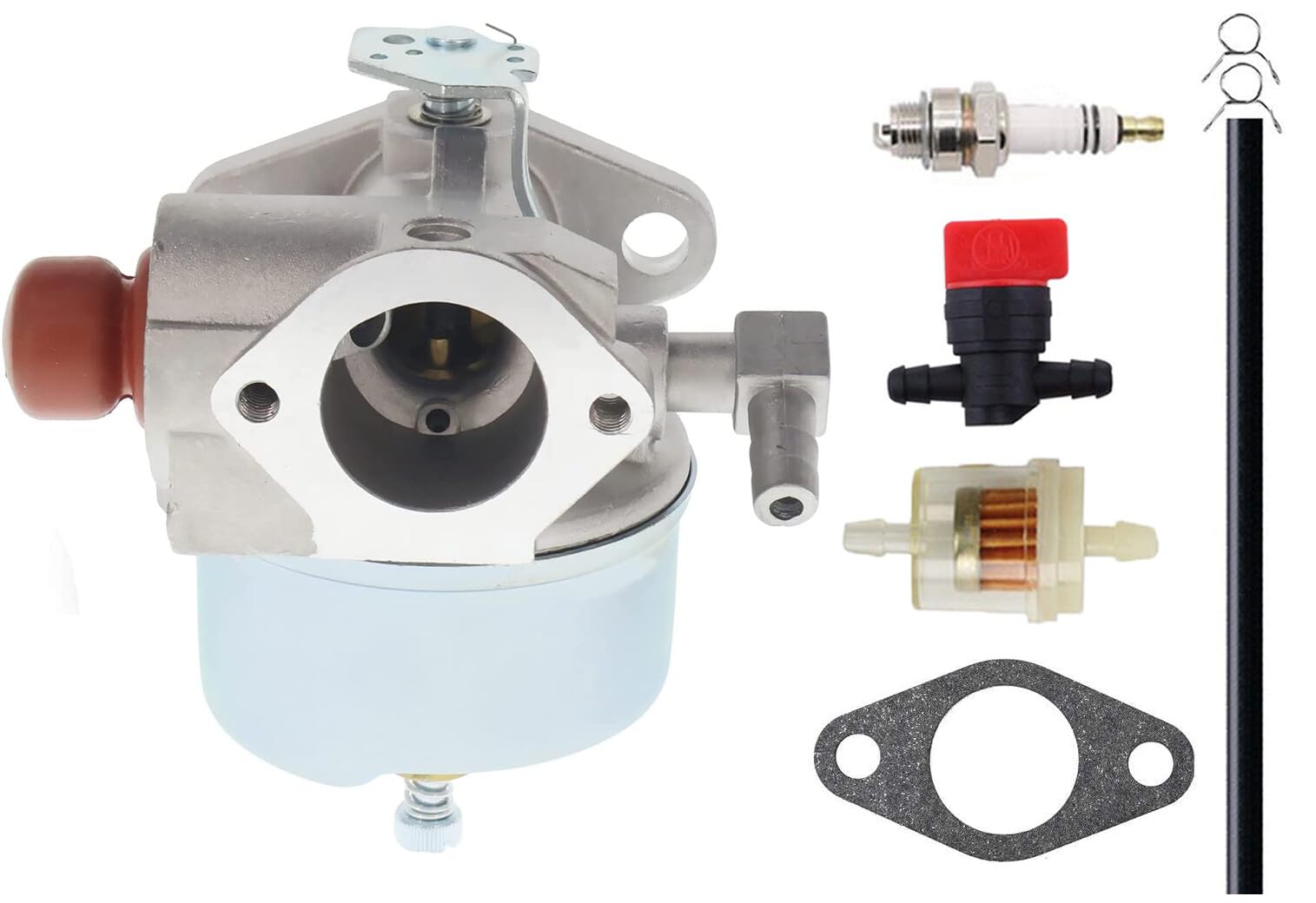

Image 1: The Generic replacement carburetor, showing its main components and mounting points. This image helps in identifying the part during installation.
Prionnsabalan Obrachaidh
The carburetor is a vital component responsible for mixing air and fuel in the correct ratio for combustion in the engine. Once installed, it functions automatically to deliver the fuel-air mixture required for your chipper shredder's operation. No specific operational adjustments are typically required for a new replacement carburetor unless specified by the engine manufacturer.
Cumail suas
Proper maintenance of your carburetor and fuel system will ensure optimal performance and longevity of your chipper shredder.
- Càileachd connaidh: Cleachd connadh ùr, glan an-còmhnaidh. 'S e connadh sean no truaillte prìomh adhbhar dhuilgheadasan leis a' charbadair. Smaoinich air cobhsaichear connaidh a chleachdadh ma thèid an uidheamachd a stòradh airson ùine mhòr.
- Filter connaidh: Dèan sgrùdadh cunbhalach air an criathrag connaidh agus cuir na àite e gus casg a chuir air sprùilleach bho bhith a’ ruighinn a’ charburadair.
- Filter Adhair: Keep the air filter clean to ensure proper airflow to the carburetor. A clogged air filter can lead to a rich fuel mixture and poor engine performance.
- Glanadh: If performance issues arise, the carburetor may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This task is recommended for experienced users or professional technicians.
Fuasgladh thrioblaidean
If your chipper shredder experiences issues after carburetor replacement, consider the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Cha tòisich an t-inneal | No fuel, clogged fuel line/filter, incorrect choke setting, spark plug issue. | Check fuel level, inspect fuel line/filter, ensure choke is set correctly, check spark plug. |
| Bidh an t-inneal a’ ruith gu garbh no a’ stad | Dirty carburetor jets, improper fuel-air mixture, air leak, old fuel. | Clean carburetor, check for air leaks around gaskets, use fresh fuel. |
| Dìth cumhachd | Clogged air filter, restricted exhaust, carburetor not delivering enough fuel. | Clean/replace air filter, check exhaust for blockages, inspect carburetor for clogs. |
| Aodion connaidh | Loose connections, damaged gaskets, float bowl issue. | Tighten connections, replace gaskets, inspect float and needle valve. |
Mura h-eil na ceumannan fuasgladh-cheistean a’ fuasgladh na trioblaid, thathar a’ moladh bruidhinn ri teicneòlaiche seirbheis teisteanasach.
Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Ainm Brand | gnèitheach |
| Modail Àireamh | Xtruoqart#27126-06991 |
| Dèanadair | Xtruoqarts |
| ASIN | B0GP1TGZCS |
| Co-fhreagarrachd | Craftsman 987799610, 987.799610 Chipper Shredder |
Fiosrachadh Barantais
As this is a replacement part, warranty coverage may vary. Please refer to the specific warranty terms provided by the seller or manufacturer at the time of purchase. Retain your proof of purchase for any warranty claims.
Taic
For technical assistance, installation guidance, or further inquiries regarding this Generic carburetor, please contact the seller or the manufacturer, Xtruoqarts, directly. Provide your product model number (Xtruoqart#27126-06991) and details of your chipper shredder for efficient support.
