Ro-ràdh
This manual provides detailed instructions for the assembly, operation, and maintenance of your U-MAX 16' x 8' Hard Top Lean-to Gazebo Pergola. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Proper installation and care will ensure the longevity and safety of your product.
Image: The U-MAX 16' x 8' Hard Top Lean-to Gazebo Pergola providing shelter on a snowy patio.
Fiosrachadh Sàbhailteachd
Cudromach: Always follow the provided manual and video tutorials for safe installation. Secure the gazebo to a stable foundation to withstand high winds. Be cautious during assembly and disassembly, as components may pose hazards. Always follow manufacturer guidelines for proper use and maintenance.
Susbaint pacaid
Your U-MAX Gazebo Pergola is shipped in two separate parcels, which may arrive at different times. Please ensure you have received both packages and all components before starting assembly.
The packages typically contain:
- Structural frame components (posts, beams, connectors)
- Hard top roof panels
- All necessary hardware (screws, bolts, washers, anchors)
- Innealan cruinneachaidh (ma tha iad air an toirt a-steach)
Image: Illustration indicating that the gazebo components are shipped in two separate parcels.
Suidheachadh agus Seanadh
Assembly of the U-MAX Gazebo Pergola requires careful attention to detail. It is recommended to have at least 2-3 people for assembly, especially when raising the main structure and installing roof panels. A cordless drill can assist with fastening, but exercise caution to avoid overtightening or stripping screws.
- Ag ullachadh: Unpack all components and verify against the parts list in your detailed manual. Ensure all punch-out holes are clear before inserting screws.
- Co-chruinneachadh frèam: Begin by assembling the main frame structure. Pay close attention to the orientation of posts and beams. The triangular support structures enhance stability.
- Stàladh Pannal Mullaich: Install the hard top roof panels. Do not fully tighten all frame bolts until all roof panels are in place, allowing for minor adjustments. Ensure the panels slide correctly into their slots.
- Stàladh balla: Securely attach the lean-to side of the pergola to a stable wall using the provided accessories. This is crucial for stability, especially in windy conditions.
- Acrachadh talmhainn: Anchor the gazebo legs to the ground using appropriate fasteners for your surface type (e.g., concrete anchors, deck screws). This prevents movement and enhances wind resistance.
Image: Close-up of the gazebo's structural elements, highlighting the triangular support, stable frame leg with pre-drilled holes, multi-frame roof support, and wall mounting bracket.
For visual guidance, please refer to the following videos demonstrating general pergola features and assembly:
Video: General overview of an outdoor pergola, demonstrating its structure and potential uses. This video is provided by the seller and shows a similar product.
Video: Another general overview of an outdoor pergola, showcasing its design and how it integrates into a patio setting. This video is provided by the seller and shows a similar product.
Video: A third general overview of an outdoor pergola, highlighting its features and benefits for outdoor living spaces. This video is provided by the seller and shows a similar product.
Obrachadh agus Feartan
Your U-MAX Gazebo Pergola is designed for year-round outdoor use, offering protection and comfort.
- Frith-aghaidh sìde: The hard top roof is engineered to withstand various weather conditions. It has been tested to support approximately 7 inches of heavy snow (6 lbs/sq.ft). The inclined design and meticulous detailing ensure waterproof performance.
- Seasmhachd na Gaoithe: When properly attached to a wall and anchored to the ground as instructed, the pergola can confidently withstand winds of approximately 70 mph.
- Dìon UV: The roof panels provide comprehensive protection against harmful UV rays, with a UPF 50+ rating, blocking up to 99% of UV radiation.

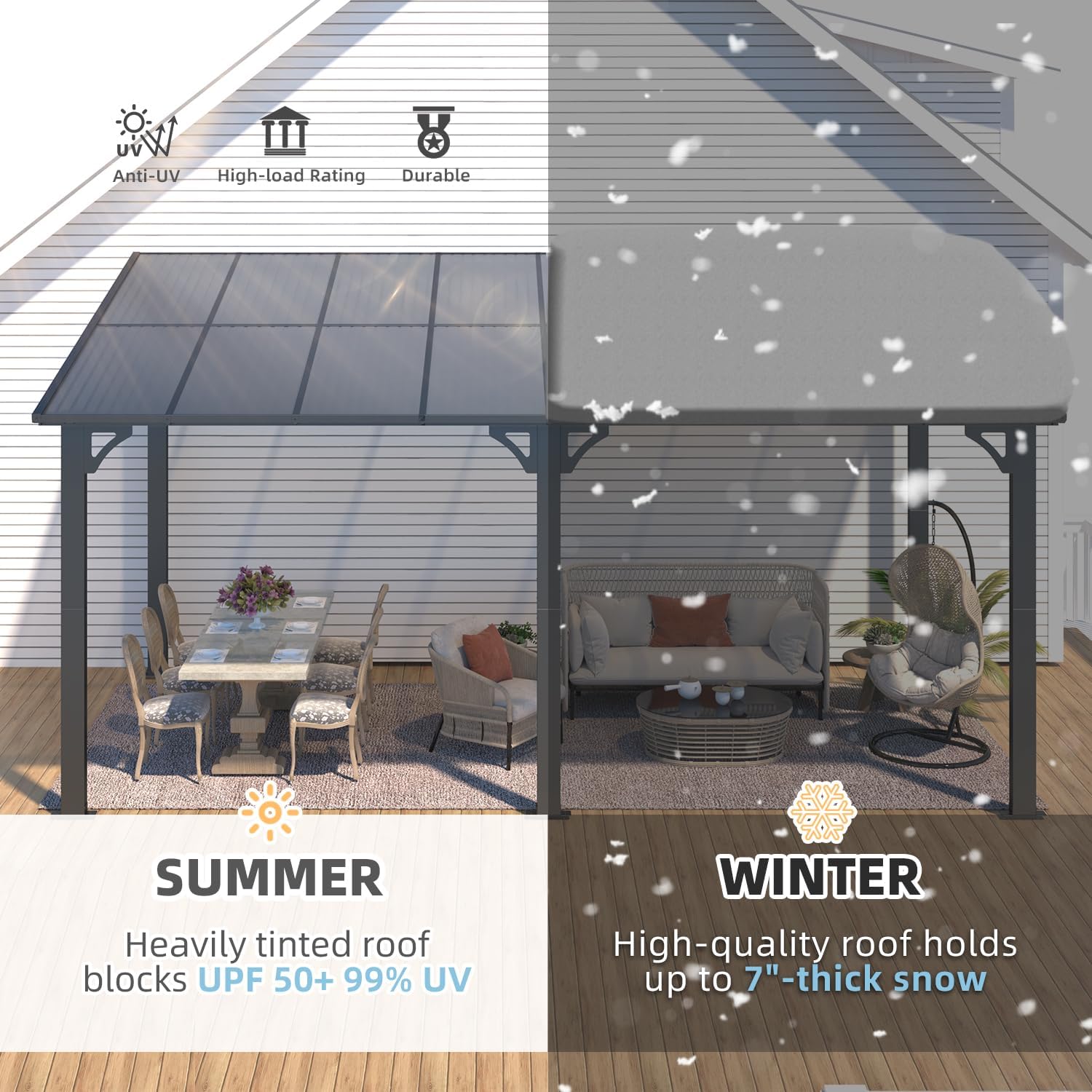

Image: Visual comparison illustrating the gazebo's roof performance in summer (UV protection) and winter (snow load capacity).
Image: Icons representing key features: Anti-UV, Fire-resistant, Waterproof, Smooth Drainage, Windproof (40-70mph), and Heavy-duty Frame.
Cumail suas
Regular maintenance will extend the life and appearance of your gazebo pergola.
- Glanadh: Clean the frame and roof panels periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or materials.
- Sgrùdadh fastener: Annually, inspect all bolts and screws to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
- Toirt air falbh sneachda: While designed for snow load, it is advisable to clear excessive snow accumulation from the roof to prevent potential damage, especially during heavy snowfall.
- Drèanadh: Ensure the drainage system remains clear of debris to allow for effective water runoff.
Fuasgladh thrioblaidean
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Water leakage from roof | Improper panel installation or sealant issues. | Verify roof panel alignment and ensure all seals are properly seated. Apply additional sealant if necessary. |
| Gazebo feels unstable or wobbly | Insufficient anchoring or loose fasteners. | Ensure all legs are securely anchored to the ground and the lean-to side is firmly attached to the wall. Check and tighten all bolts and screws. |
| Duilgheadas rè co-chruinneachadh | Misinterpretation of instructions or missing parts. | Review the manual and video tutorials carefully. Contact customer support if parts are missing or for remote assistance. |
Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Modail Àireamh | SS16409BK |

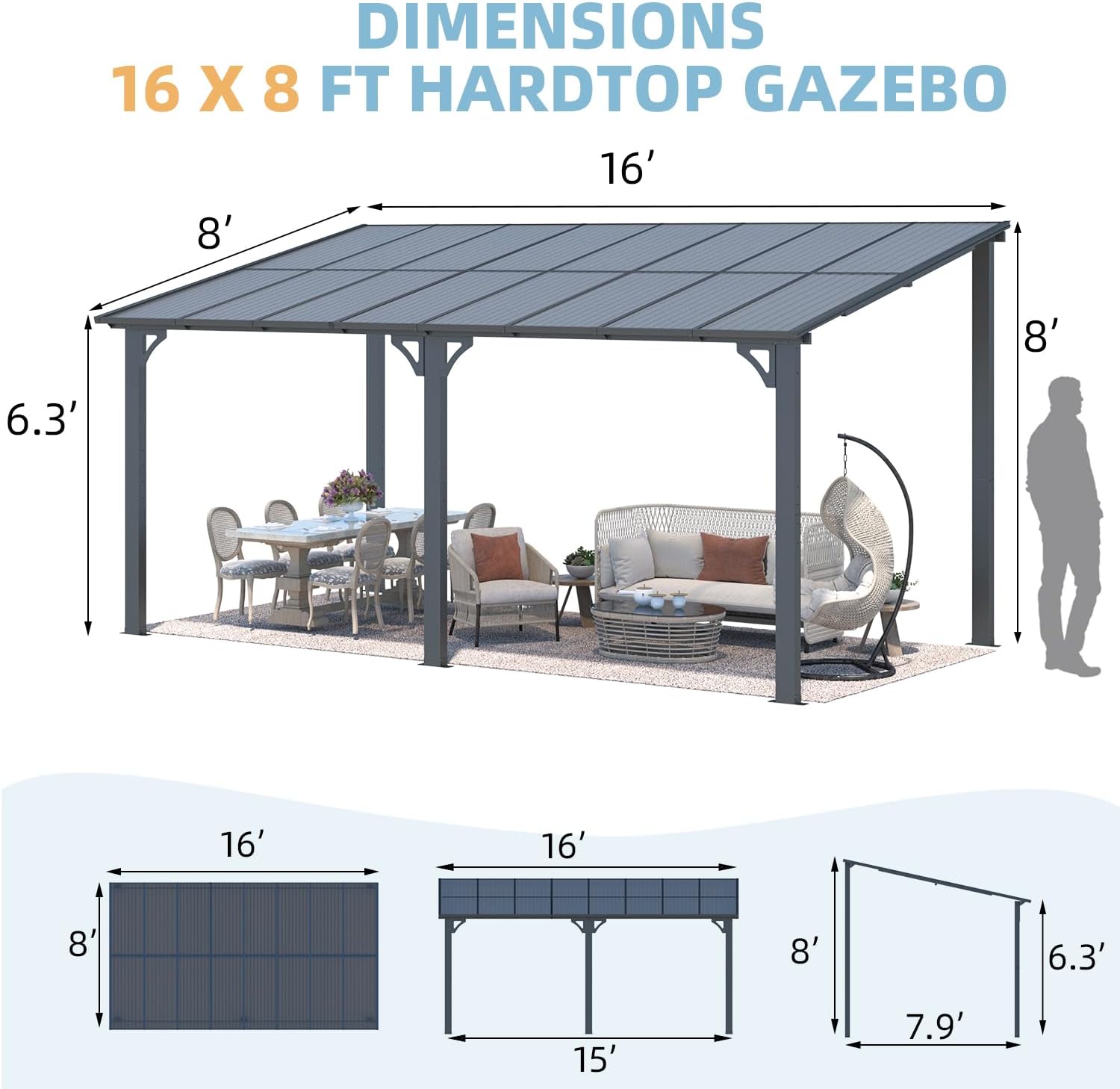

| Meudan toraidh (L x W x H) | 4.87L x 2.43W x 2.43H Meters (16' x 8' x 8') |
| Cuideam nì | 77.11 kg (170 not) |
| Stuth | Aluminum, Metal, Sun Panels |
| Dath | Dorch |
| Ìre an aghaidh uisge | Uisge-dhìonach |
| Dìon bho sholas ultraviolet | UV protection (UPF 50+, 99% UV block) |
| Comas Sneachda | 6 lbs/sq.ft (approx. 7 inches of heavy snow) |
| Frith-aghaidh na Gaoithe | Up to 70 mph (when properly secured) |
| Raon Làr | 128 troighean ceàrnagach |
| Co-chruinneachadh a dhìth | Tha |
| Dèanadair | U-MAX |
| Dùthaich Tùs | Sìona |
Barantas agus Taic
U-MAX stands behind its products, offering a worry-free experience. This includes maintenance and replacements for the product itself, along with a professional team available 24/7 to address any concerns related to installation, usage, and more. Please refer to your purchase documentation for specific warranty terms and contact information.
