This manual provides detailed instructions for the installation, operation, and maintenance of your KEMIMOTO Multifunctional Spare Tire Carrier and Cargo Rack. Designed for 2024-2026 Polaris RZR XP 1000 and XP 4 1000 models, this versatile accessory enhances your off-road adventures by providing additional storage and a secure spare tire mount. Crafted from high-quality alloy steel with a powder-coated finish, it offers excellent durability, corrosion resistance, and anti-collision properties.

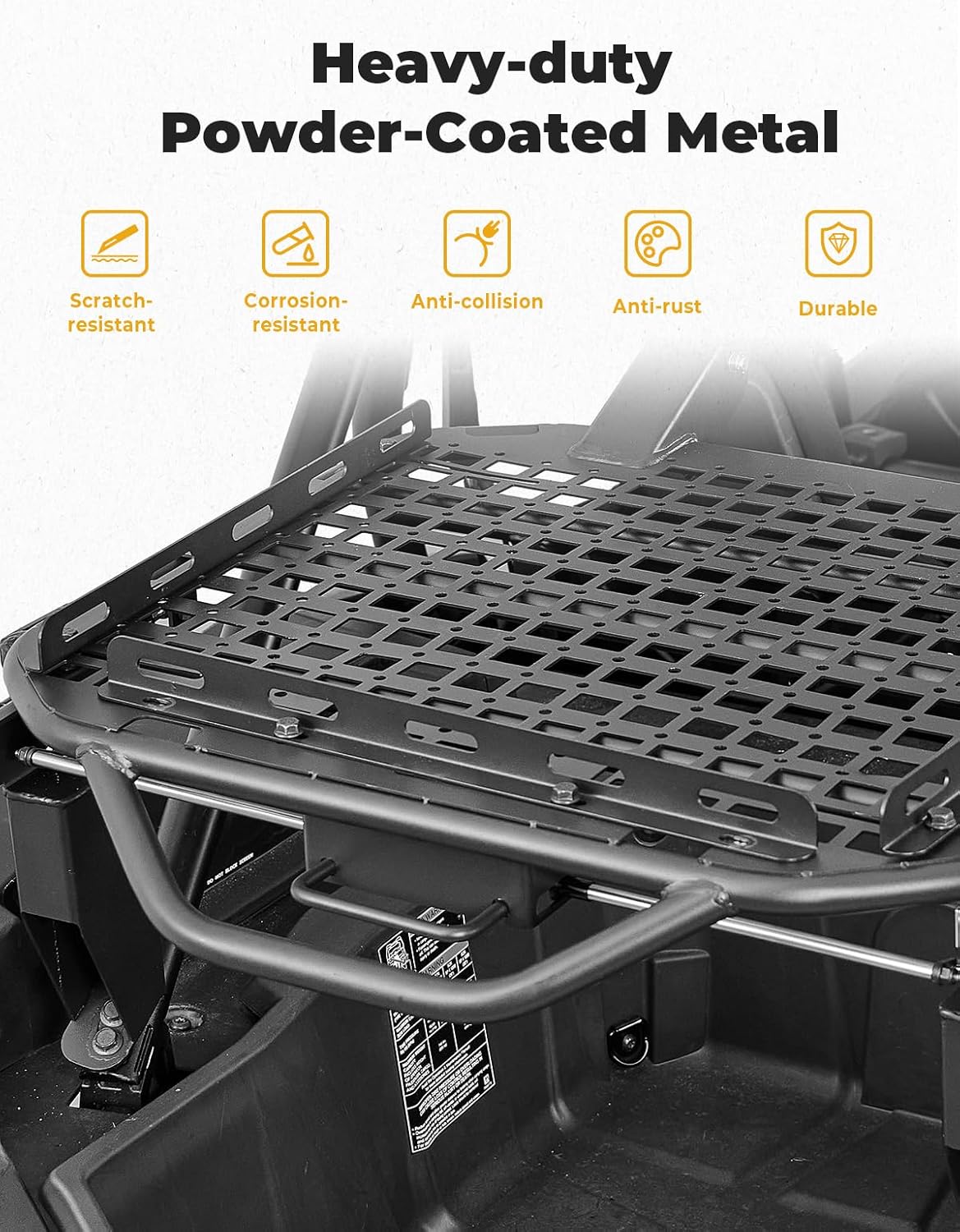

Image: Detail of the heavy-duty powder-coated metal construction of the KEMIMOTO cargo rack.
Co-phàirtean air an toirt a-steach
- Cargo Rack x1
- Ratchet straps x2
- Bathar-cruaidh (boltaichean, cnothan, leacan)
- Installation Instructions (paper document)
Stàladh agus stàladh
Follow these steps carefully to install your KEMIMOTO Multifunctional Spare Tire Carrier and Cargo Rack. Refer to the installation video for visual assistance.
Video stiùireadh airson stàladh a
Video: This video provides a step-by-step guide for installing the KEMIMOTO UTV Cargo Rack. It demonstrates the assembly of components and attachment to the vehicle.
Stiùireadh ceum air cheum
- Ullaich pàirtean: Lay out all components and hardware. Ensure all parts listed in the "Components Included" section are present. Refer to the provided paper instructions for detailed diagrams.
- Assemble Support Arms: Attach the support arms to the main cargo rack using the provided hardware. Ensure all bolts are securely tightened.
- Stàlaich air Carbad: Remove existing bolts from the vehicle's rear bed. Position the assembled cargo rack and secure it using the provided U-bolts and nuts. Do not fully tighten the locking plate initially.
- Dèan rèiteachadh agus tèarainte: Adjust the rack to its final desired position. Once positioned, securely tighten all bolts, including the locking plate, to ensure the rack is firmly attached and stable.
Stiùireadh Obrachaidh
The KEMIMOTO cargo rack offers versatile storage and easy access to your items.
Cargo Rack Functionality Video
Video: This video demonstrates the various functionalities of the KEMIMOTO UTV Cargo Rack, including its lifting mechanism and how to secure different types of cargo.
Lifting the Rack
The rack is equipped with two springs, each providing 55 lbs of support, totaling 110 lbs. To lift, squeeze the handle to unlock, then gently lift the platform. It will effortlessly lift and remain suspended at an angle (up to 25°) for easy access to the rear bed.

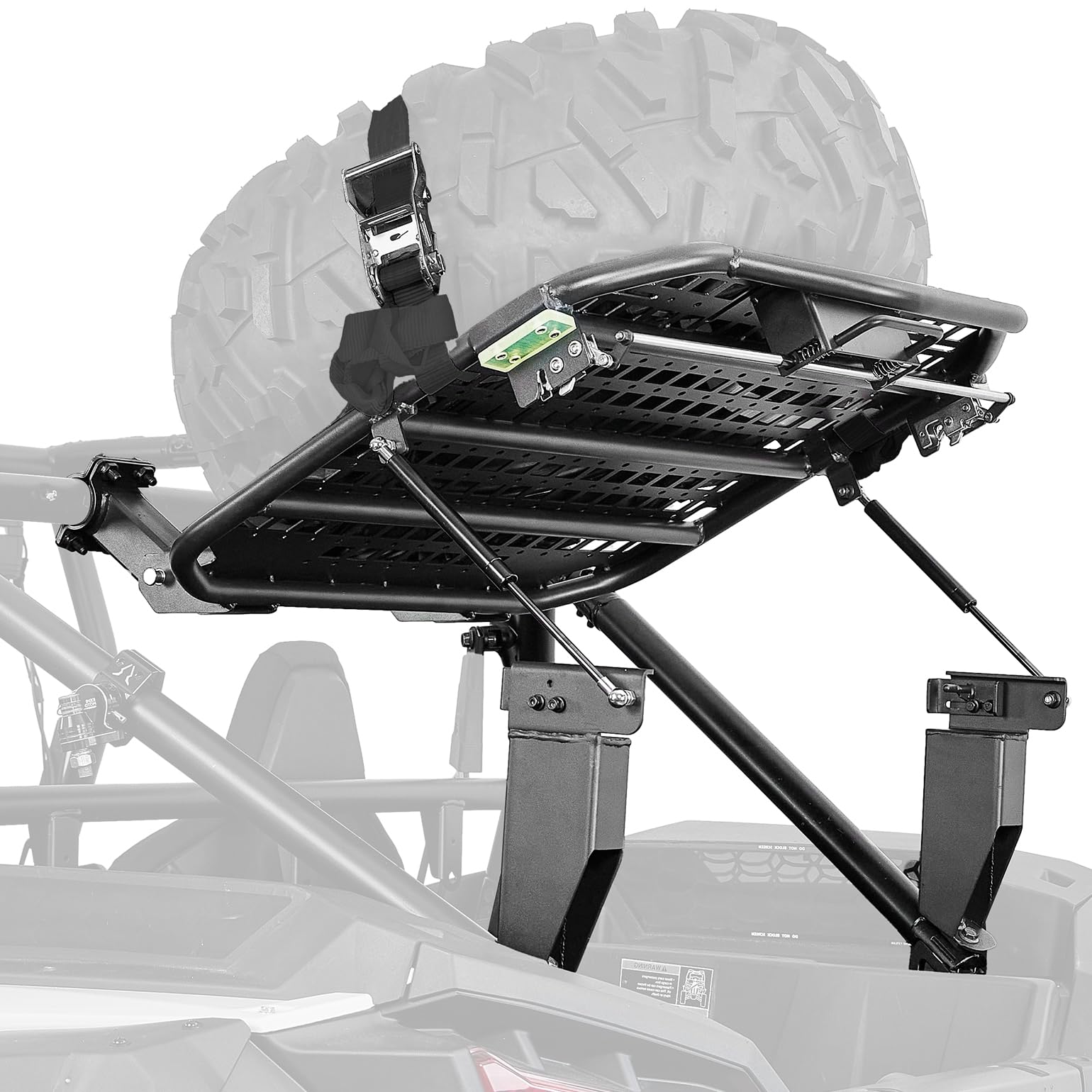

Image: The cargo rack lifted at a 25-degree angle, demonstrating the spring-assisted lift for easy access.
Image: The non-fixed storage rack lifted to a 25-degree angle, providing easy access to the rear storage box.
Securing Items
The cargo rack features multiple tactical holes and tie-down points for versatile securing options. Use the included ratchet straps to securely fasten items such as spare tires, storage boxes, camping gear, or bicycles. The rack has a weight capacity of up to 176 lbs (80 kg).
Ìomhaigh: Examples of various items like spare tires, large boxes, bicycles, and camping gear secured on the versatile storage rack.
Image: A spare tire secured with the included ratchet straps, highlighting the metal cam buckles.
Image: A large storage box securely fastened to the cargo rack.
Reinforcing Supports
The adjustable sheet metal supports help secure different sized storage boxes and spare tires, preventing movement during transit.
Image: Adjustable reinforcing supports on the cargo rack to accommodate various item sizes.
Cumail suas
- Regularly inspect all bolts and fasteners for tightness, especially after off-road use. Tighten as necessary.
- Clean the rack with mild soap and water. Avoid abrasive cleaners that could damage the powder-coated finish.
- Check the spring mechanisms for smooth operation and lubricate moving parts if needed.
- Inspect ratchet straps for wear and tear before each use. Replace damaged straps immediately.
Fuasgladh thrioblaidean
Rack not lifting smoothly:
Check the spring mechanisms for any obstructions or damage. Ensure they are properly lubricated.
Rack feels loose or unstable:
Re-check all installation bolts and nuts. Ensure they are tightened to the recommended specifications. Verify that the locking plate is engaged.
Difficulty securing cargo:
Ensure ratchet straps are correctly threaded and tightened. Utilize the various tie-down points for optimal load distribution and security.
Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Brand | KEMIMOTO |
| Modail Àireamh | KM1B0108-03207-BK |
| Stuth | Alloy Steel |
| Dath | Dubh |
| Meudan nì (L x W x H) | 35 x 30 x 9 òirleach |
| Cuideam nì | 50 Punnd |
| Comas luchdaidh | 176 punnd (80 kg) |
| Seòrsa stàladh | U-Bholt |
| Seòrsa carbaid co-fhreagarrach | UTV (2024-2026 Polaris RZR XP 1000 / XP 4 1000) |
| Taic an Earraich | Suas gu 110 lbs |
| Max Lifting Angle | 25° |
Fiosrachadh Barantais
This KEMIMOTO product comes with a manufacturer warranty for 12 months from the date of purchase. Please retain your proof of purchase for warranty claims.
Taic Luchd-cleachdaidh
For any questions, technical assistance, or warranty claims, please contact KEMIMOTO customer support through the retailer where the product was purchased or visit the official KEMIMOTO weblàrach.
