1. Ro-ràdh
The Generic XH-W3001 is a versatile digital temperature controller designed for precise temperature regulation in various applications. It supports both heating and cooling modes, allowing users to maintain a desired temperature range from -50°C to 110°C. This unit features an easy-to-read digital display, intuitive controls, and a waterproof stainless steel probe for accurate temperature detection. This manual provides essential information for the safe and effective use of your XH-W3001 temperature controller.
Dealbh 1.1: The XH-W3001 digital temperature controller can be used in a wide range of applications, such as controlling temperatures in incubators, greenhouses, pet enclosures, and industrial equipment like server racks.
2. Fiosrachadh Sàbhailteachd
- Dèan cinnteach gu bheil an solar cumhachd voltage matches the controller's specified voltage (DC12V, DC24V, or 110-220V AC). Connecting to an incorrect voltagfaodaidh e milleadh no teine adhbhrachadh.
- All wiring should be performed by a qualified individual or with extreme caution, following local electrical codes.
- Do not expose the main controller unit to water or excessive humidity. Only the stainless steel probe is waterproof.
- Keep the device away from flammable materials and heat sources.
- Do not attempt to disassemble or modify the controller. This will void the warranty and may lead to malfunction or electric shock.
- Ensure all connections are secure to prevent loose wiring, which can cause overheating or intermittent operation.
3. Toradh thallview
The XH-W3001 temperature controller features a compact design with a clear digital display and three control buttons. It includes a temperature detection probe connected via a cable.
Dealbh 3.1: Key components of the XH-W3001 controller. The display shows the current temperature, the 'OUT' light indicates when the output is active, and the 'Up' and 'Down' buttons are used for setting parameters.
3.1. Com-pàirtean
- Taisbeanadh didseatach: Shows the current temperature and parameter settings.
- Putan Suas (▲): Air a chleachdadh gus luachan àrdachadh no gus seòladh tro chlàran-taice.
- Putan Sìos (▼): Air a chleachdadh gus luachan a lùghdachadh no gus seòladh tro chlàran-taice.
- Set Button (implied by operation, usually long press Up/Down): Used to enter and confirm settings. (Note: The image labels only Up/Down, but setting requires a combination or long press).
- OUT Indicator Light: Illuminates when the heating or cooling output is active.
- Probe Teothachd: Waterproof stainless steel sensor for temperature detection.
- Power Input Wires: Red and black wires for connecting to the power supply.
- Load Output Wires: Yellow and black wires for connecting to the heating or cooling device.
4. Sònrachaidhean
| Feart | Sònrachadh |
|---|---|
| Modail | XH-W3001 |
| Raon Teòthachd | -50 ° C gu 110 ° C |
| Cruinneas Tomhais | ±0.1°C |
| Cruinneas smachd | ±0.1°C |
| Roghainnean solar cumhachd | DC12V, DC24V, 110-220V AC (Please check your specific model) |
| Cumhachd luchdaidh as àirde | 1500W (for 110-220V AC model) |
| Seòrsa Toraidh | Toradh dìreach |
| Seòrsa tilgeil | Waterproof NTC Sensor (1 meter length) |
| Meudan (approx.) | 5.97cm (L) x 4.47cm (W) x 3.1cm (H) |
Dealbh 4.1: Approximate physical dimensions of the XH-W3001 controller.
5. Setup agus Uèir
Before connecting, ensure the power supply is disconnected. Incorrect wiring can damage the device or cause electrical hazards.
5.1. Diagram uèir
Dealbh 5.1: Wiring connections for the XH-W3001. The red and black wires on the left are for power input, and the yellow and black wires on the right are for connecting to the controlled device.
- Cur a-steach cumhachd: Ceangail an dearg wire to the positive (+) terminal of your power supply and the dubh wire (from the same pair as red) to the negative (-) terminal. For AC models, connect to live and neutral. Ensure the voltage matches your controller's specification (DC12V, DC24V, or 110-220V AC).
- Toradh Luchdaidh: Ceangail an buidhe wire to one terminal of your heating or cooling device (e.g., heater, fan, compressor). Connect the dubh wire (from the same pair as yellow) to the other terminal of your device.
- Probe Teothachd: The waterproof stainless steel probe is permanently attached. Place the probe in the area where you wish to measure and control the temperature.
5.2. A’ chiad chumhachd air
After ensuring all wiring is correct and secure, connect the power supply. The digital display will illuminate and show the current temperature detected by the probe.
6. Stiùireadh Obrachaidh
The XH-W3001 operates by setting a 'Start Temperature' and a 'Stop Temperature'. The controller intelligently determines whether to operate in heating or cooling mode based on these settings.

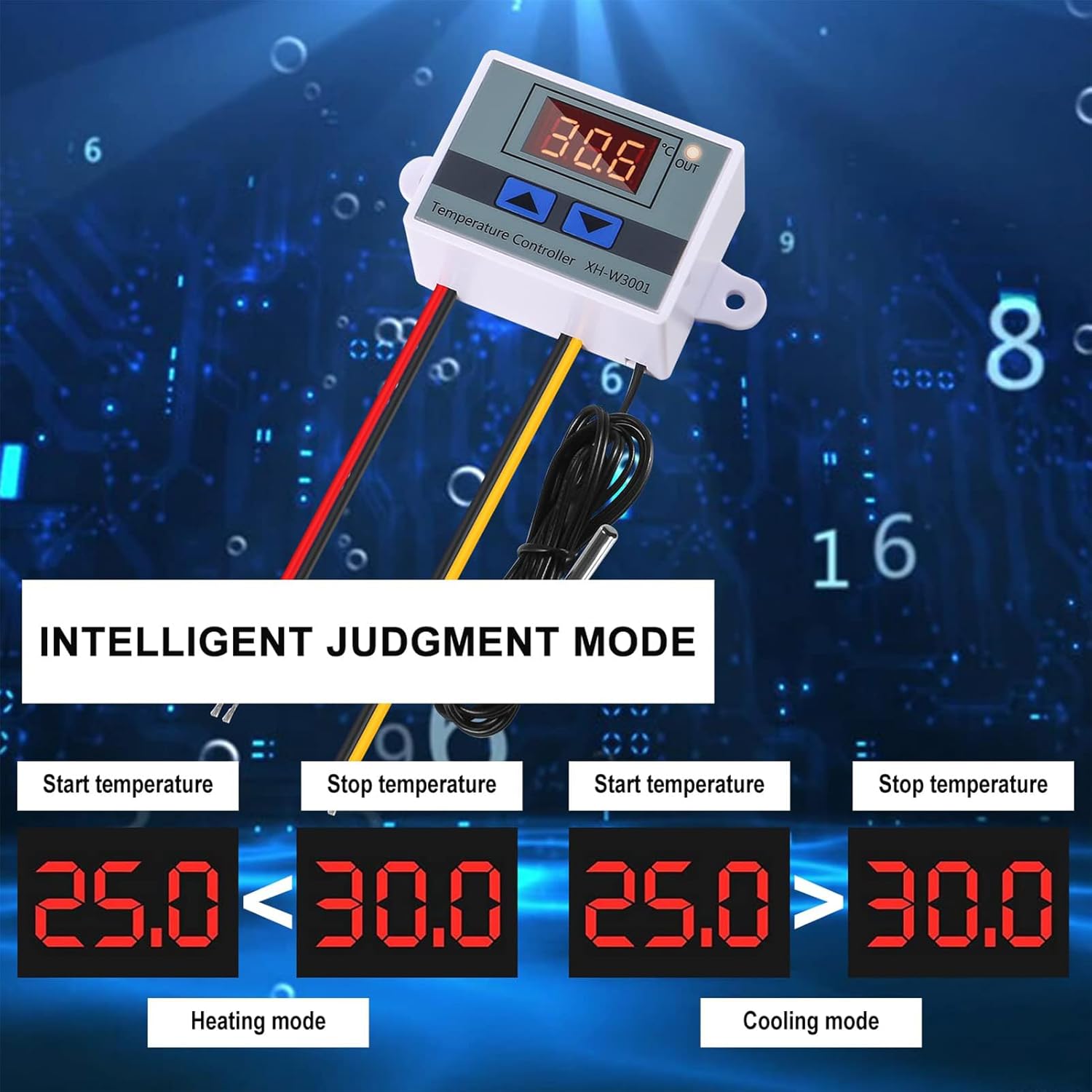

Dealbh 6.1: The controller automatically switches between heating and cooling modes based on the relationship between the Start and Stop temperatures.
6.1. Setting the Start Temperature (P0)
- Press and hold the Up (▲) button for approximately 3 seconds. The display will flash, indicating you are in the setting mode for the Start Temperature.
- Cleachd an Suas (▲) or Sìos (▼) buttons to adjust the desired Start Temperature.
- Once set, wait for a few seconds without pressing any buttons, and the controller will automatically save the setting and return to displaying the current temperature.
6.2. Setting the Stop Temperature (P1)
- Press and hold the Down (▼) button for approximately 3 seconds. The display will flash, indicating you are in the setting mode for the Stop Temperature.
- Cleachd an Suas (▲) or Sìos (▼) buttons to adjust the desired Stop Temperature.
- Once set, wait for a few seconds without pressing any buttons, and the controller will automatically save the setting and return to displaying the current temperature.
6.3. Modhan obrachaidh
- Modh teasachaidh: Ma tha an Start Temperature is set lower than the Stop Temperature (e.g., Start 25°C, Stop 30°C), the controller will activate the output (OUT light on) when the current temperature drops below the Start Temperature. It will deactivate the output when the temperature reaches the Stop Temperature.
- Modh fuarachaidh: Ma tha an Start Temperature is set higher than the Stop Temperature (e.g., Start 30°C, Stop 25°C), the controller will activate the output (OUT light on) when the current temperature rises above the Start Temperature. It will deactivate the output when the temperature drops to the Stop Temperature.
6.4. Ath-shuidheachadh gu Factory Settings
To reset the controller to its factory default settings, power off the device. Then, press and hold both the Suas (▲) agus Sìos (▼) buttons simultaneously while powering the device back on. Hold until the display shows '888' or '---', then release. The device will restart with default settings.
7. Cumail suas
- Glanadh: Wipe the controller's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no liquids enter the device.
- Cùram Probe: The stainless steel probe is durable and waterproof. Periodically check the probe cable for any signs of damage or wear. Ensure the probe is clean for accurate readings.
- Ceanglaichean: Dèan sgrùdadh bho àm gu àm air a h-uile ceangal uèiridh gus dèanamh cinnteach gu bheil iad tèarainte.
8. A ’dèanamh trioblaid
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Gun taisbeanadh/Gun chumhachd | mì-cheart voltage, loose wiring, power supply issue, damaged unit. | Dearbhaich solar cumhachd voltage matches controller. Check all power input wiring for secure connections. Test power supply. If still no power, unit may be faulty. |
| Tha leughadh teòthachd mearachdach | Probe not properly placed, damaged probe, environmental interference. | Ensure probe is fully immersed or positioned correctly in the measurement area. Check probe cable for damage. Avoid placing probe near strong electromagnetic fields. |
| Output (heating/cooling) not activating | Incorrect Start/Stop temperature settings, load device faulty, wiring issue. | Review Start and Stop temperature settings to ensure they are configured for the desired mode (heating or cooling). Check load device wiring and functionality. Ensure the load device is within the controller's power rating. |
| Display shows 'LLL' or 'HHH' | Probe error (open circuit or short circuit), temperature out of range. | Check probe connection and cable for damage. If the probe is damaged, it may need replacement. Ensure the measured temperature is within the -50°C to 110°C range. |
9. Barantas agus Taic
Warranty information for the Generic XH-W3001 Digital Temperature Controller is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the retailer directly for specific warranty terms and conditions.
For technical support or further assistance, please contact the vendor or retailer from whom you purchased this product. They can provide guidance on troubleshooting, replacement parts, or warranty claims.
