1. Ro-ràdh
The Refresh R-9010 Refrigerator Water Filter is designed to provide clean, fresh-tasting water and ice by reducing common impurities. This filter is compatible with various refrigerator models from brands such as Whirlpool, KitchenAid, Maytag, and Kenmore. For optimal performance, adhere to the installation and maintenance guidelines provided in this manual.
2. Co-fhreagarrachd
The Refresh R-9010 water filter is compatible with the following filter models and brands:
- An Ceann Mòr: 46-9010, 469010, 9010, 46-9085
- Aquacrest: AQF-4396508
- Aquafresh: WF285
- IcePure: RFC05000A
- Other compatible brands: Whirlpool, KitchenAid, Maytag, Puriclean, Swift Green, Tier1, Water Sentinel, Pureza, Waterdrop, FilterLogic, EcoAqua, Mist, Pure Line, Glacier Fresh, Water Filter Tree, OnePurify, Pure Green, ClearWater, PureH2O, WaterChef.
Important: Always verify your refrigerator's model number to ensure compatibility before installation.
3. Fiosrachadh Sàbhailteachd
- Read and follow all instructions carefully before installation and use.
- Install the filter on FUAR water lines only.
- To reduce the risk of property damage due to water leakage, install a pressure limiting device and water hammer arrestors if internal water pressure exceeds 80 psi (552 kPa). Refer to Uniform Plumbing Code, Sections 608.2 and 609.10.
- Never install or operate the filter where internal water pressure may exceed 120 psi (827 kPa).
- Protect the filter from freezing. Remove the filter if the temperature drops below 34°F (1°C).
- Na cleachd le uisge a tha mì-shàbhailte gu meanbh-bhitheòlasach no de chàileachd neo-aithnichte gun dì-ghalarachadh iomchaidh ro no às deidh an t-siostam.
4. Stàladh
Follow these steps to install your Refresh R-9010 water filter:
- Locate the filter housing in your refrigerator.
- Cuir dheth an solar uisge don fhrigeradair.
- Remove the old filter cartridge by rotating it approximately 1/4 turn counter-clockwise. Pull the old filter cartridge out.
- Insert the new Refresh R-9010 filter cartridge into the housing.
- Rotate the cap clockwise to the horizontal position until it locks into place.
- Tionndaidh air an t-solar uisge don fhrigeradair.
- Flush 3-5 gallons of water through the dispenser to remove air and carbon fines.
- Check for any leaks around the filter housing.

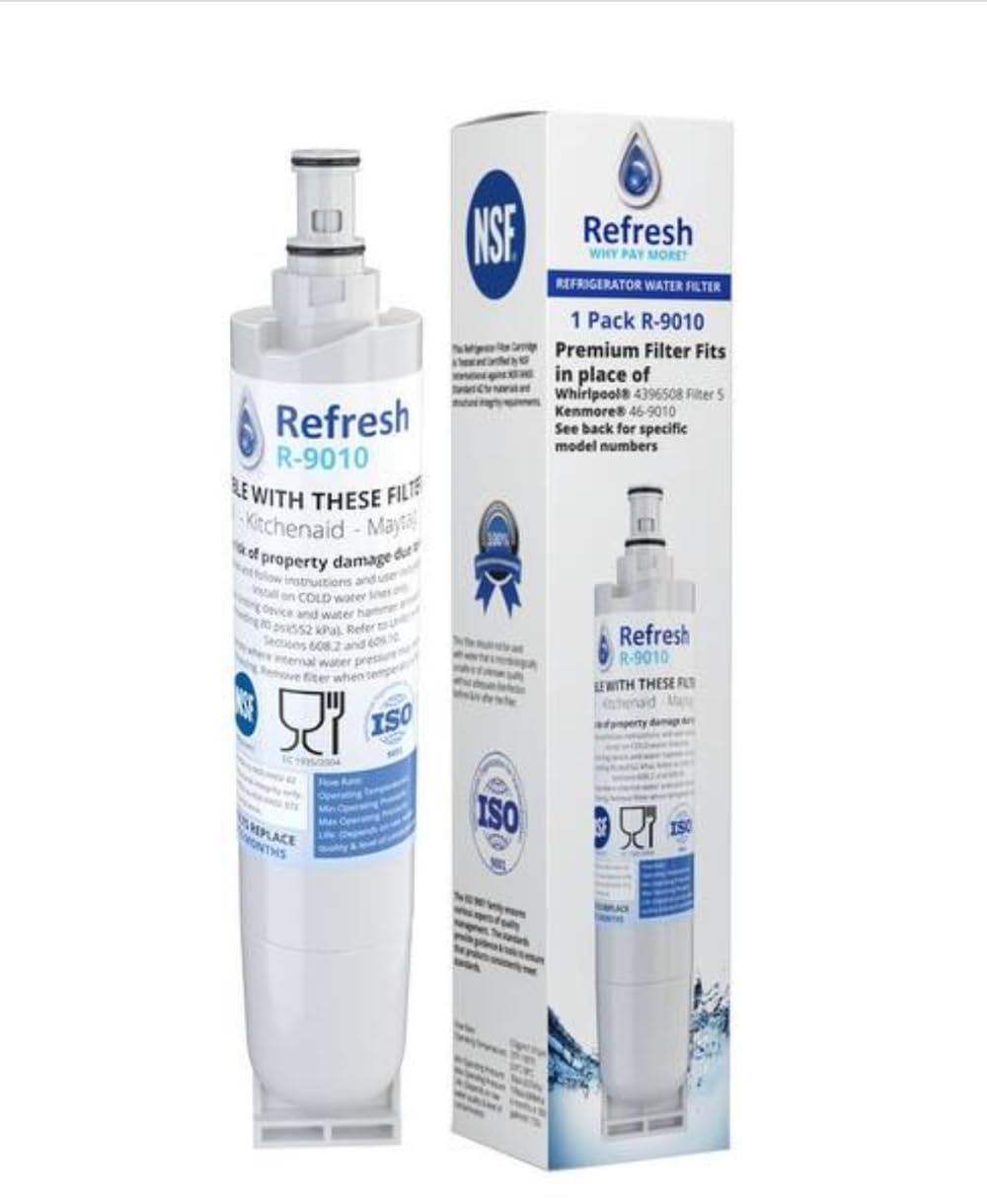

Image: The Refresh R-9010 water filter, showing its cylindrical shape and the top connection mechanism. A magnified view highlights the filter's connection point.
Image: A detailed performance data sheet and visual instructions for installing the Refresh R-9010 filter. It includes steps for removing the old filter, inserting the new one, and flushing the system.
Ceann-latha stàlaidh: For your convenience, a sticker may be included in the box to record the installation date. This helps track when the filter needs replacement.
5. Obrachadh
Once installed, the Refresh R-9010 filter operates automatically with your refrigerator's water dispensing system. It continuously filters water as it passes through, providing filtered water for drinking and ice production.
Image: A hand holding a glass under a refrigerator water dispenser, illustrating the ease of use and quick-connect fittings of the Refresh filter system.
6. Cumail suas
Bidh cumail suas cunbhalach a’ dèanamh cinnteach à coileanadh agus càileachd uisge as fheàrr.
Ath-chur sìoltachan
- For best results and to maintain water quality, replace the filter every 6 mìosan no às dèidh sìoladh 300 galan (1,135 liotair), ge b'e air bith a thig an toiseach.
- Refer to the installation section for steps on replacing the filter.
Image: A graphic emphasizing the compatibility of the Refresh R-9010 filter with various brands and reminding users to replace the filter every 6 months for best results.
7. A ’dèanamh trioblaid
If you encounter issues with your Refresh R-9010 filter, consider the following:
- Sruthadh Uisge Mall: This often indicates a clogged filter. Replace the filter if it has been in use for 6 months or longer, or if water quality has noticeably decreased.
- Ag aoidion: Ensure the filter is correctly seated and rotated fully into the housing. Check that the O-rings on the filter are intact and properly positioned. If leaks persist, turn off the water supply and re-install the filter carefully.
- Blas/fàileadh neo-àbhaisteach: If the water has an unusual taste or odor after installation, flush an additional 3-5 gallons of water through the dispenser. If the problem persists, the filter may be faulty or expired, and replacement is recommended.
- Criathrag nach eil iomchaidh: Double-check the compatibility list and your refrigerator's model number. Ensure you have the correct Refresh filter model.
8. Sònrachaidhean
| Sònrachadh | Luach |
|---|---|
| Modail Àireamh | R-9010 |
| Stuth | Plastaig |
| Meudan toraidh (D x W x H) | 2.5" x 6" x 8" |
| Cuideam nì | 0.34 cileagram |
| Ìre sruth | 0.5 gpm (1.9 Lpm) |
| Teòthachd Obrachaidh | 33°F - 100°F (0.6°C - 38°C) |
| Min Operating Pressure | 30 psi (207 kPa) |
| Brùthadh obrachaidh Max | 120 psi (827 kPa) |
| Filter Beatha | 6 mìosan no 300 galan (1,135 liotair) |
| Teisteanasan | ANSI, NSF/ANSI 42 |
Image: A woman holding a glass of water, with a prominent NSF certification logo and text highlighting the filter's benefits, including great tasting water and compliance with NSF/ANSI 42 standards.
Image: A child drinking water, accompanied by a list of contaminants successfully removed by the Refresh filter, such as heavy metals, chlorine, and unpleasant tastes.
9. Barantas agus Taic
Barantas cuibhrichte
Refresh provides a Barantas cuibhrichte 30-latha against defects in material and workmanship for this product. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.
Taic Luchd-cleachdaidh
For further assistance, questions, or warranty claims, please contact Refresh customer support. Contact information can typically be found on the product packaging or the official Refresh weblàrach.
