Tangkula 10 FT Solar Patio Umbrella Instruction Manual

1. Toradh thallview

The Tangkula 10 FT Solar Patio Umbrella is designed to provide shade and ambient lighting for outdoor spaces. It features a cantilever design, a 10-foot diameter canopy, and integrated solar-powered LED lights with multiple lighting modes. The umbrella includes a cross base and sandbags for stability, and offers tilt adjustment and 360-degree rotation for optimal sun protection.

Image 1.1: The Tangkula 10 FT Solar Patio Umbrella providing shade and illumination in an outdoor setting.

2. Stiùireadh Sàbhailteachd

• Always ensure the umbrella base is properly weighted and stable before use. The included sandbags are designed to hold up to 155 lbs of sand for enhanced stability.
• Do not use the umbrella in strong winds, heavy rain, or other severe weather conditions. Close and secure the umbrella to prevent damage or injury.
• Keep children and pets away from the umbrella during opening, closing, and adjustment to prevent accidents.
• Dèan sgrùdadh cunbhalach air na pàirtean uile airson caitheamh, milleadh, no ceanglaichean sgaoilte. Na cleachd ma tha pàirt sam bith ann an cunnart.
• Ensure adequate clearance around the umbrella when rotating or tilting to avoid striking objects or people.

3. Pasgan-susbaint

Dèan cinnteach gu bheil na pàirtean uile an làthair mus tòisich thu air an cruinneachadh:

• 1 x Patio Offset Umbrella Canopy and Frame Assembly
• 1 x Cross Base
• 2 x Sandbags (for weighting the base)
• 1 x User’s Manual (this document)

4. Stiùireadh Co-chruinneachadh

Assembly of the Tangkula Solar Patio Umbrella is straightforward. Follow these steps:

1. Ullaich am Bunait: Place the cross base in your desired location. Fill the two included sandbags with sand (up to 155 lbs total) and place them securely onto the cross base to provide stability.
2. Ceangail am Prìomh Phòla: Insert the main pole of the umbrella frame into the center of the weighted cross base. Secure it using the provided washers and bolts. Ensure the pole is firmly attached and upright.
3. Position the Umbrella: Ensure the umbrella canopy is positioned on the opposite side of the crank handle for correct operation.
4. Sgrùdaidhean deireannach: Double-check all connections to ensure they are tight and secure before proceeding to operate the umbrella.

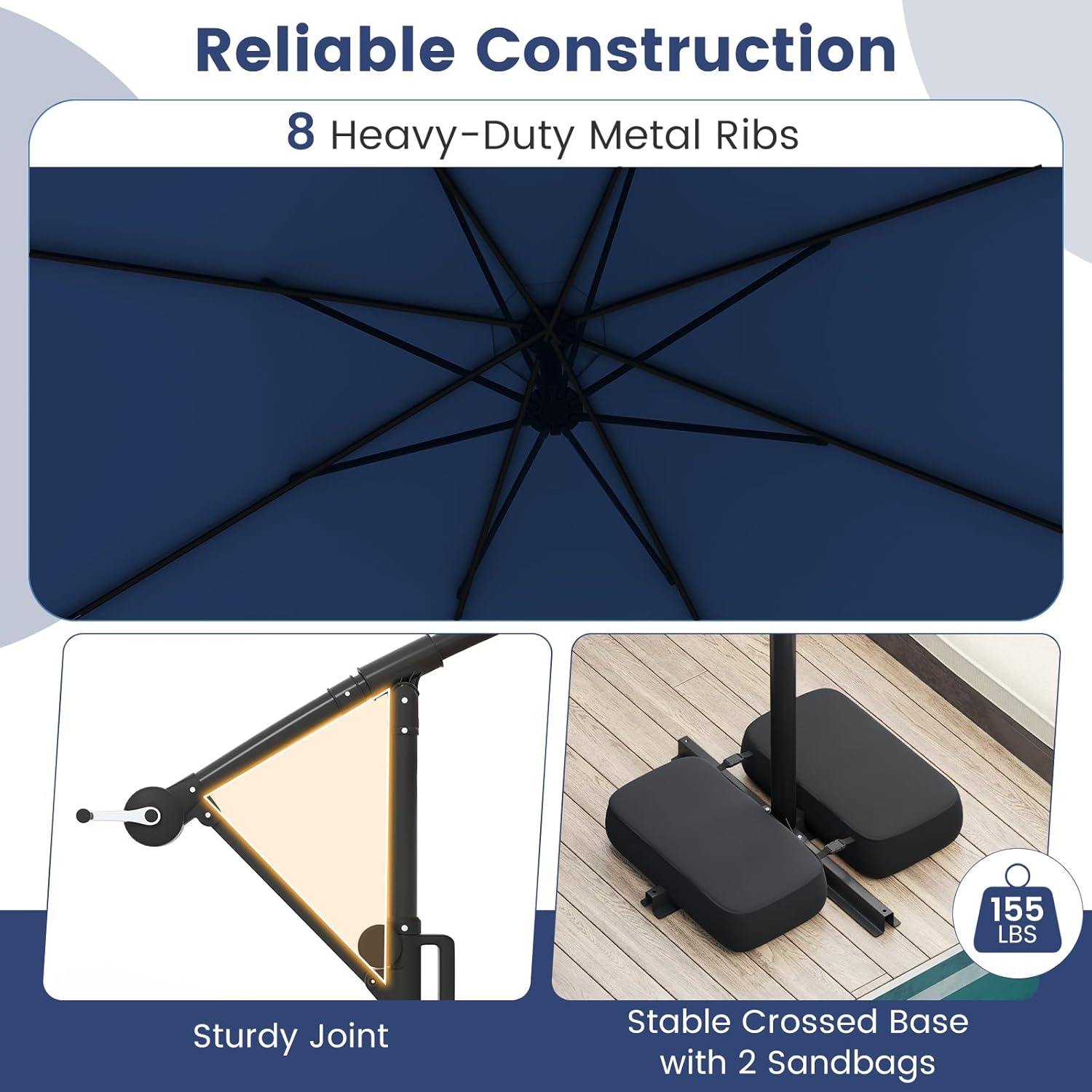

Image 4.1: Illustration of the umbrella's robust construction, including metal ribs and the weighted cross base.

5. Stiùireadh Obrachaidh

5.1. Opening and Closing the Umbrella

The umbrella features a convenient crank handle for easy operation.

• Gus fhosgladh: Rotate the crank handle clockwise until the canopy is fully extended.
• Gus dùnadh: Rotate the crank handle counter-clockwise until the canopy is fully retracted.

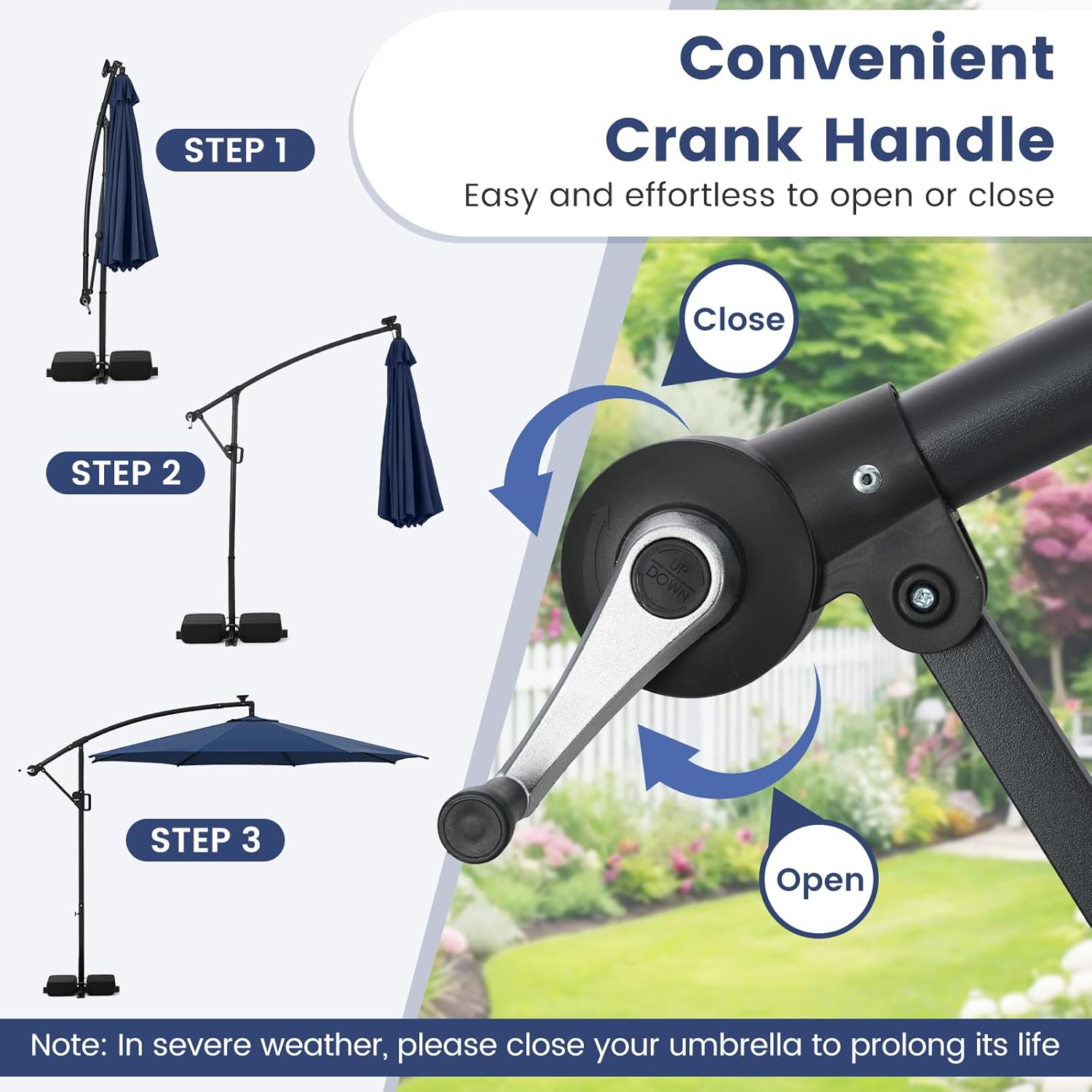

Image 5.1: Visual guide for operating the crank handle to open and close the umbrella.

5.2. Adjusting Tilt and Rotation

The umbrella offers infinite tilt and 360-degree rotation for flexible shade coverage.

• To Tilt: Loosen the locking mechanism on the main pole. Move the handle up or down to achieve the desired tilt angle. Once set, tighten the locking mechanism to secure the position.
• To Rotate: Loosen the locking mechanism on the main pole. Carefully rotate the entire canopy to the desired direction. Once positioned, tighten the locking mechanism to secure it.

Image 5.2: Instructions for adjusting the umbrella's tilt and 360-degree rotation.

5.3. A 'cleachdadh an LED Lights

The umbrella is equipped with 96 multi-colored LED lights powered by a solar panel.

• A' cur cosgais: Ensure the solar panel located on top of the umbrella receives direct sunlight during the day for optimal charging. A full charge provides approximately 5 hours of illumination.
• Obrachadh: Use the handy switch located on the umbrella frame to control the lights.
• Modhan: Short press the switch to cycle through 9 lighting modes, including 4 static colors (red, blue, green, white), 4 dynamic modes, and 1 multi-color mode. Long press the switch to turn the lights on or off.

Dealbh 5.3: Thairisview of the 9 distinct lighting modes for the LED lights.

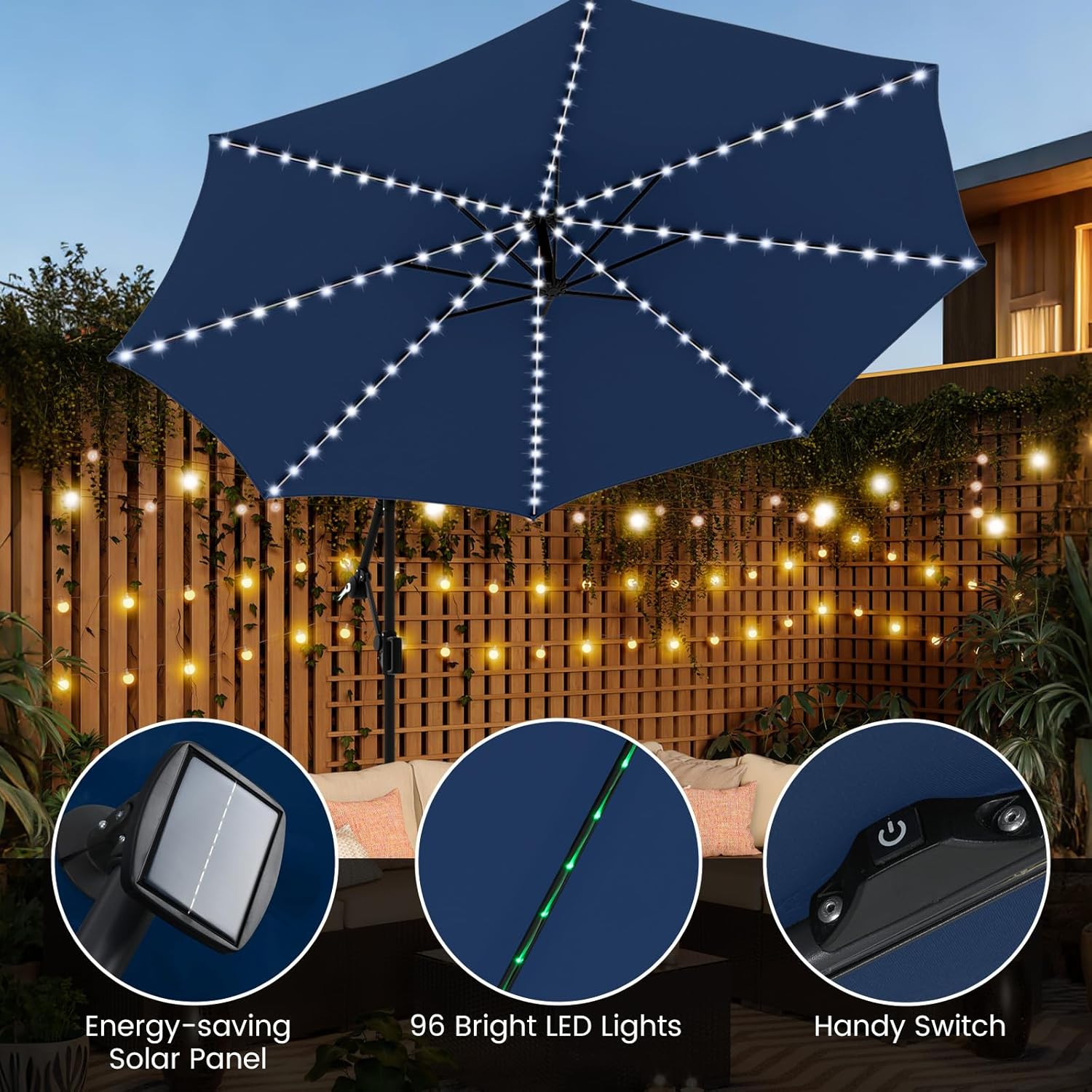

Image 5.4: Details of the solar panel, LED lights, and control switch.

6. Cumail suas agus Cùram

• Glanadh: Wipe the canopy and frame with a damp cloth as needed. For stubborn dirt, use a mild soap solution and rinse thoroughly. Allow to air dry completely before closing or storing.
• Stòradh: When not in use for extended periods or during severe weather, close the umbrella and store it in a dry, protected area. Consider using a protective cover to prolong its lifespan.
• Sgrùdadh: Periodically check all screws, bolts, and connections to ensure they remain tight. Inspect the canopy fabric for any tears or damage.
• Pannal grèine: Keep the solar panel clean and free of debris to ensure efficient charging of the LED lights.

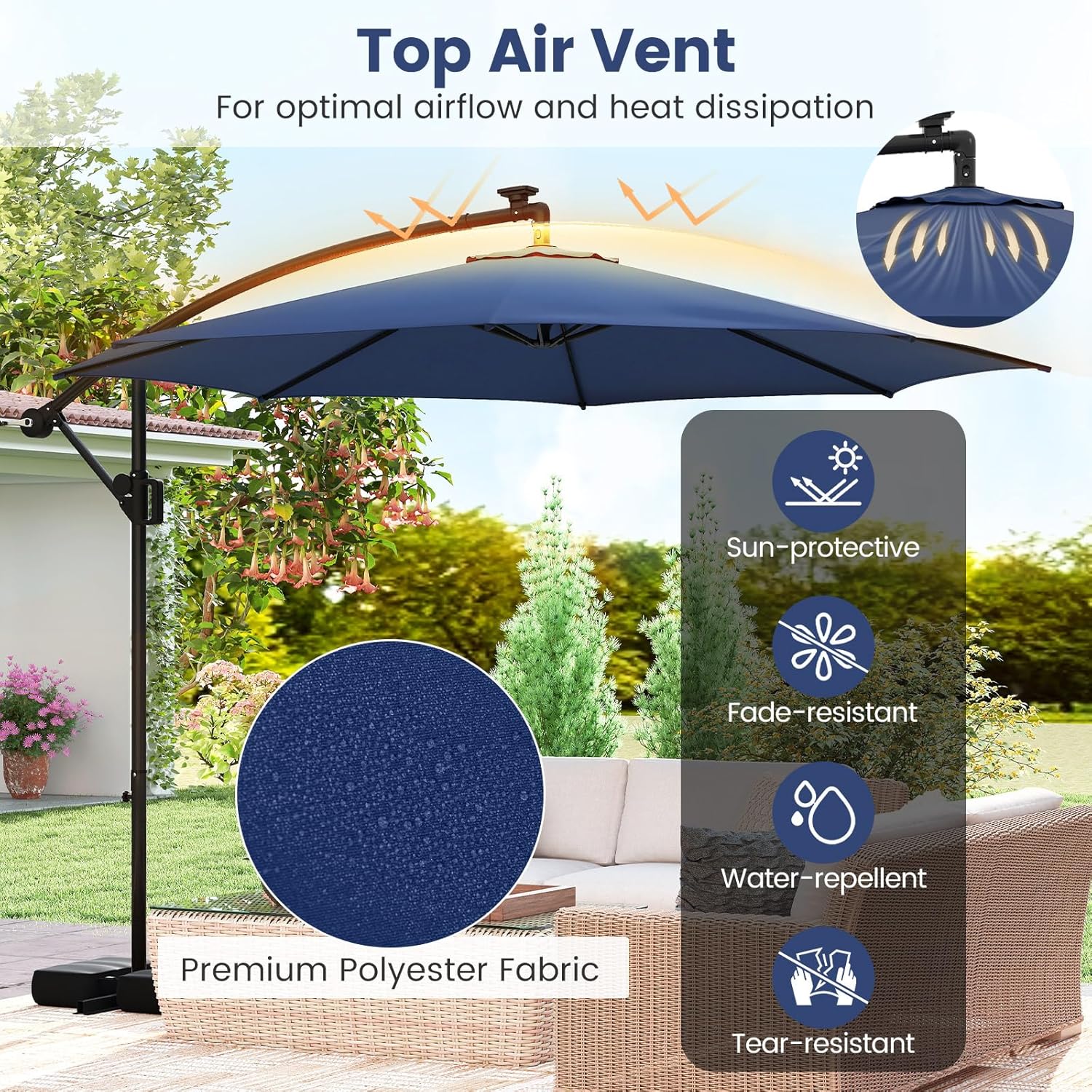

Image 6.1: Features of the canopy fabric, highlighting its durability and weather resistance.

7. A ’dèanamh trioblaid

8. Sònrachaidhean

Image 8.1: Detailed product dimensions of the umbrella.

9. Barantas agus Taic

For warranty information or technical support, please refer to the purchase documentation or contact Tangkula customer service directly. Contact details can typically be found on the retailer's weblàrach-lìn no dearbhadh an òrduigh agad.
