1. Ro-ràdh
This manual provides essential information for the safe and efficient operation of your DC HOUSE 48V/36V to 12V Step-Down Converter. Please read these instructions thoroughly before installation and use. This converter is designed to provide a stable 12V output from a 36V or 48V DC input, suitable for various applications including golf carts, off-road vehicles, and other equipment.
2. Stiùireadh Sàbhailteachd
Always observe the following safety precautions to prevent injury or damage to the converter and connected equipment:
- Dèan cinnteach gu bheil an cuir a-steach voltage is within the specified range (DC 30-60V).
- Do not exceed the maximum output current of 20A or power of 240W.
- Connect the converter with correct polarity. Reverse polarity can cause damage.
- Stàlaich ann an àite le deagh fhionnarachadh, air falbh bho stuthan lasanta.
- Dì-cheangail an cumhachd mus dèan thu ceanglaichean no dì-cheanglaichean sam bith.
- The converter is waterproof (IP66 rated), but avoid prolonged submersion.
- If the converter shows signs of damage or malfunction, discontinue use immediately.
3. Feartan toraidh
- Cuir a-steach farsaing Voltage Raon: Compatible with 36V/48V systems (DC 30-60V).
- High-Efficiency 12V Output: Provides stable 12V, 20A, 240W output with over 97% efficiency.
- Dìon tuigseach: Includes overload, overcurrent, overheating, and reverse polarity protection.
- Dealbhadh seasmhach: Features a die-cast aluminum housing, IP66 waterproof rating, and shock resistance.
- Stàladh furasta: Four-wire connection for plug-and-play use.
- Iarrtasan ioma-chruthach: Suitable for golf carts, trucks, LED lights, audio systems, monitoring systems, motors, and DIY projects.
4. Sònrachaidhean Teicnigeach
| Paramadair | Luach |
|---|---|
| Input Voltage | 36V/48V DC (30-60V) |
| Toradh Voltage | 12V DC |
| Toradh gnàthach | 20A air a char as àirde |
| Cumhachd Toraidh | 240W aig a’ char as àirde |
| Èifeachdas | >97% |
| Teòthachd Obrachaidh | -25 ° C gu +65 ° C |
| Teòthachd stòraidh | -40 ° C gu +80 ° C |
| Ìre uisge-dhìonach | IP66 |
| Meudan toraidh (L x W x H) | 2.91 x 2.91 x 1.26 òirleach |
| Cuideam nì | 10.8 unnsa |
5. Suidheachadh & Stàladh
Follow these steps for proper installation of the DC-DC Step-Down Converter:
- Dèan ullachadh airson an stàladh:
- Dèan cinnteach gu bheil gach stòr cumhachd air a dhì-cheangal mus tòisich thu air an stàladh.
- Identify a suitable mounting location for the converter. It should be secure, allow for adequate airflow, and be protected from direct physical impact.
- Ceanglaichean uèiridh:
The converter features a four-wire connection system:
- Uèir cuir a-steach: Red (+) and Black (-) wires connect to your 36V/48V DC power source (e.g., battery). The red wire includes an inline fuse for protection.
- Uèirichean toraidh: Yellow (+) and Black (-) wires connect to your 12V DC load (e.g., LED lights, audio system).
Dòigh-obrach ceangail:
- Ceangail an Red (+) input wire of the converter to the positive terminal of your 36V/48V battery.
- Ceangail an Black (-) input wire of the converter to the negative terminal of your 36V/48V battery.
- Ceangail an Yellow (+) output wire of the converter to the positive terminal of your 12V device.
- Ceangail an Black (-) output wire of the converter to the negative terminal of your 12V device.
Image: Quick connection and easy installation diagram. The converter's red and black wires are input, connecting to a 51.2V 100Ah battery. The yellow and black wires are output, connecting to a 12V fan.
Image: Efficient step-down, stable output. This image illustrates the converter connected between a 48V/36V battery and a 12V load in a golf cart environment.
- Ceanglaichean tèarainte:
- Dèan cinnteach gu bheil a h-uile ceangal teann agus tèarainte gus casg a chur air ceanglaichean sgaoilte agus cunnartan a dh’ fhaodadh a bhith ann.
- Use appropriate connectors (like the quick wiring connectors shown in the video) for reliable connections.
Video: This video demonstrates the unboxing and quick connection process of the DC HOUSE 36V/48V to 12V Voltage Converter, showing how to connect it to a battery and a load using quick wiring connectors.
6. Obrachadh
Once properly installed, the DC-DC Step-Down Converter operates automatically:
- Apply the 36V/48V DC input voltage to the converter.
- The converter will automatically regulate the voltage to a stable 12V DC output.
- Connect your 12V devices to the output terminals.
- The converter's intelligent protection features will safeguard against overcurrent, overheating, and other electrical issues.

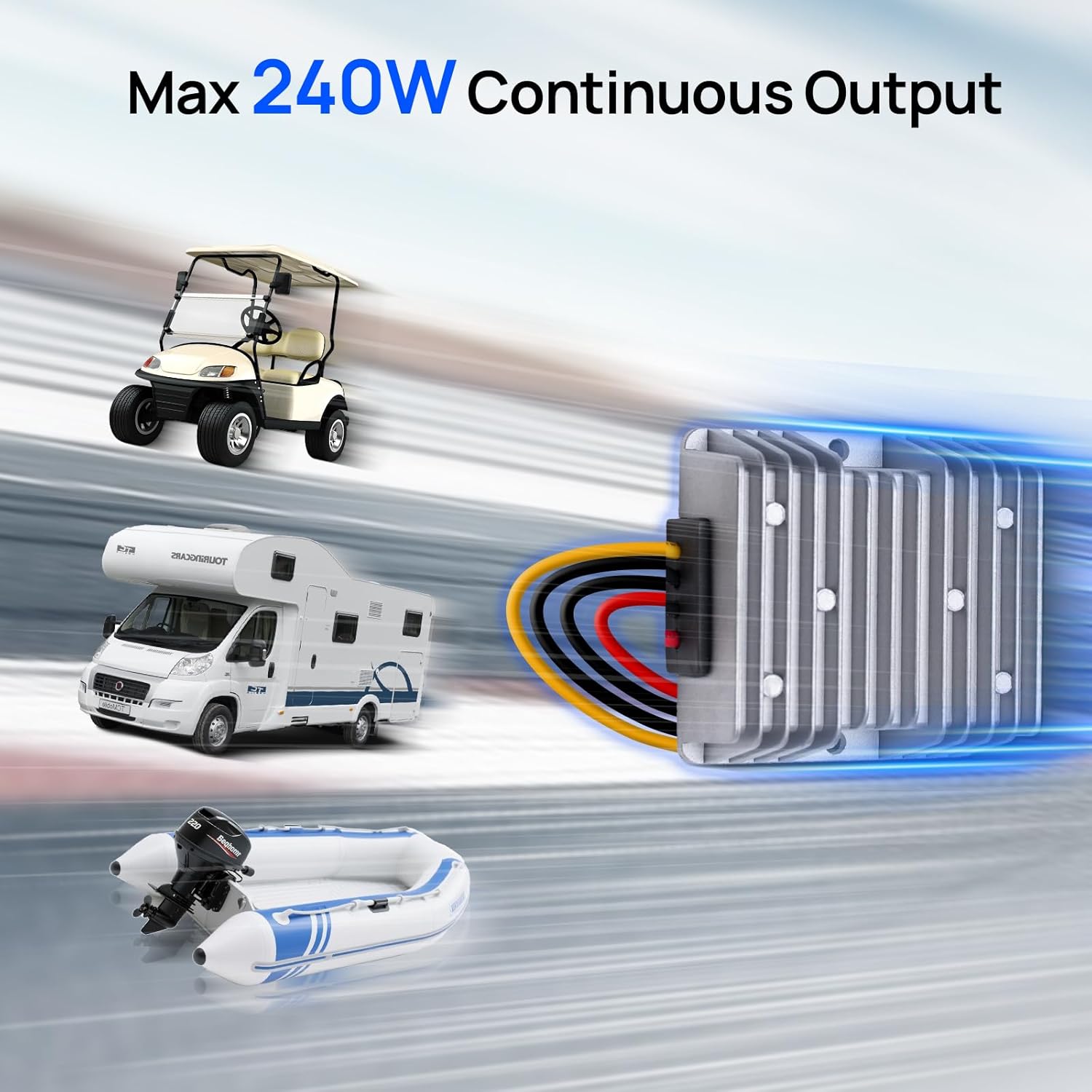

Image: Max 240W Continuous Output. This image shows the converter's application in various vehicles like golf carts, RVs, and boats with trolling motors, highlighting its continuous power output capability.
7. Cumail suas
The DC HOUSE Step-Down Converter is designed for minimal maintenance. However, regular checks can ensure optimal performance and longevity:
- Sgrùdadh ràitheil: Regularly inspect the converter and its wiring for any signs of physical damage, corrosion, or loose connections.
- Glanadh: Keep the converter clean and free from dust and debris. Use a dry cloth to wipe the exterior. Do not use harsh chemicals or abrasive cleaners.
- Fionnarachadh: Ensure that the converter's heat sink fins are not obstructed to allow for proper heat dissipation.
- Sgrùdadh Fuse: If the converter stops providing output, check the inline fuse on the red input wire. Replace it with a fuse of the same rating if blown.
Image: Multiple Protection Features. This image provides an X-ray view of the converter, highlighting its internal components and protection mechanisms such as short circuit, overheating, overpressure, and overcurrent protection.
8. A ’dèanamh trioblaid
If you encounter issues with your converter, refer to the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| No 12V output | No input power, incorrect wiring, blown fuse, overloaded output. | Check input power source. Verify all wiring connections for correct polarity. Inspect and replace the inline fuse if necessary. Reduce the load connected to the 12V output. |
| Toradh voltage is unstable or incorrect | Teachd a-steach voltage outside specified range, faulty connections, converter malfunction. | Dèan cinnteach à cuir a-steach voltage is between 30V and 60V DC. Check all connections for tightness. If the problem persists, contact customer support. |
| Converter is overheating | Excessive load, insufficient ventilation, high ambient temperature. | Reduce the load on the 12V output. Ensure the converter is installed in a location with adequate airflow and its fins are not blocked. |
| Converter shuts down unexpectedly | Overload protection, overheating protection, short circuit. | Disconnect the load and allow the converter to cool down. Check for short circuits in the output wiring. Reduce the load. If the issue continues, contact support. |
9. Barantas & Taic
DC HOUSE products are manufactured to high-quality standards. For warranty information and technical support, please refer to the official DC HOUSE weblàrach-lìn no cuir fios chun t-seirbheis teachdaiche aca gu dìreach.
- Seirbheis teachdaiche: Airson cuideachaidh, tadhail air an DC HOUSE Store on Amazon no thoir sùil air an fhiosrachadh conaltraidh a chaidh a thoirt seachad leis a’ cheannach agad.
- Tilleadh: This product is eligible for returns within 30 days of receipt for a refund or replacement, subject to Amazon's return policy.
