1. Ro-ràdh
Thank you for choosing the Yofidra Cordless Electric Hedge Trimmer. This manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before first use and keep them for future reference. This hedge trimmer is designed for trimming hedges, shrubs, and bushes in domestic gardens.

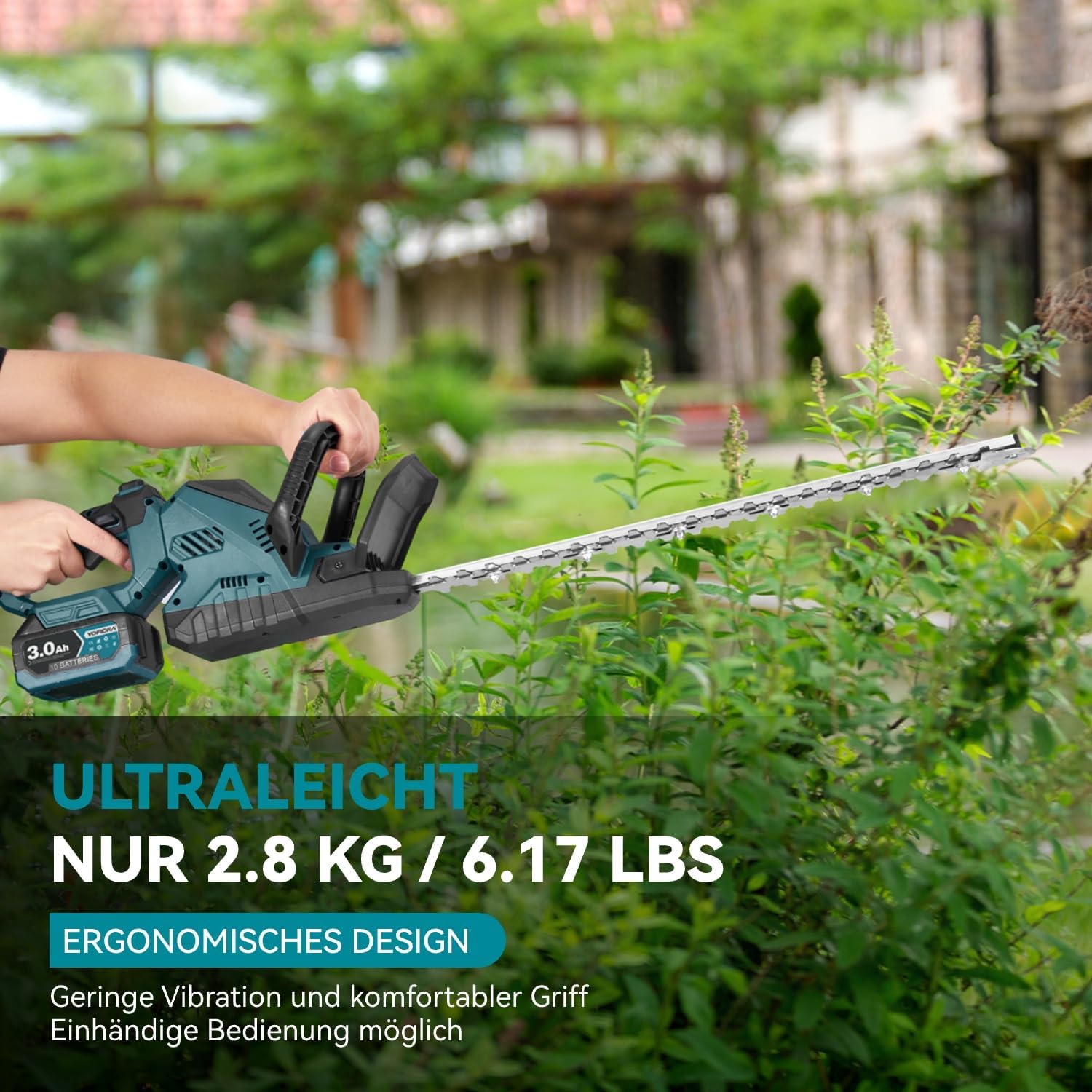

Figear 1: The Yofidra Cordless Electric Hedge Trimmer in use, demonstrating its lightweight and ergonomic design for comfortable handling.
2. Stiùireadh Sàbhailteachd
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Keep this manual handy for quick reference.
Rabhaidhean sàbhailteachd coitcheann:
- Leugh a h-uile stiùireadh: Dèan eòlas air na smachdan agus mar a chleachdas tu an inneal gu ceart.
- Cuir ort uidheam dìon pearsanta (PPE) iomchaidh: Always wear safety glasses, gloves, sturdy footwear, and hearing protection.
- Cùm clann agus luchd-amhairc air falbh: Do not allow children or untrained persons to operate the hedge trimmer.
- Seachain àrainneachdan cunnartach: Do not use the hedge trimmer in wet or damp cumhachan.
- Bi furachail: Do not operate the hedge trimmer when you are tired, ill, or under the influence of drugs or alcohol.
- Greim tèarainte: Cum an trimmer callaid gu daingeann leis an dà làmh an-còmhnaidh.
- Cuir casg air tòiseachadh gun dùil: The hedge trimmer is equipped with a safety switch. It will only activate when both the upper handle and the safety switch are pressed simultaneously.
- Dèan sgrùdadh air an raon obrach: Before trimming, check for hidden wires, fences, or other objects that could be struck by the blades.
- Cùm cothromachadh: Ensure proper footing and balance at all times. Do not overreach.
- Dì-cheangail bataraidh: Always remove the battery pack when not in use, before cleaning, or when changing accessories.
- Blade care: Keep blades sharp and clean for best performance.
- Stòradh: Store the hedge trimmer in a dry, secure place out of reach of children.
3. Pasgan-susbaint
Carefully unpack all items and check against the list below. If any parts are missing or damaged, contact your retailer immediately.
- Yofidra Cordless Electric Hedge Trimmer
- 1 x Lithium-Ion Battery (3.0 Ah)
- 1 x Charger bataraidh
- 1 x còmhdach lann
- 1 x Leabhar-làimhe Cleachdaiche
4. Toradh thallview
Familiarize yourself with the components of your hedge trimmer before operation.
Figear 2: Key components of the Yofidra Cordless Electric Hedge Trimmer.
- Làimhseachadh cùil: Main grip for operation.
- Tionndadh air / dheth: Activates/deactivates the motor.
- Làimhseachadh aghaidh: Provides a secondary grip for two-handed operation.
- Geàrd-làimhe: Protects the user's hand from debris and blades.
- lann gearraidh: The primary cutting mechanism.
- Steel Material: Refers to the durable steel construction of the blades.
- Atharrachadh sàbhailteachd: Must be pressed simultaneously with the On/Off switch to operate.
- Double-Edged Steel Blades: High-quality SK5 durable metal blades for efficient cutting.
- Pasgan bataraidh: A’ toirt cumhachd don trimmer.
5. Suidhich
5.1 A’ cur cosgais air a’ bhataraidh
Before first use, fully charge the battery. The battery pack is a Lithium-Ion 3.0 Ah battery.
- Ceangail an charger gu ionad cumhachd iomchaidh.
- Cuir a-steach am pasgan bataraidh a-steach don charger.
- The indicator light on the charger will show the charging status (refer to charger manual for specific light indications).
- Cho luath ‘s a bhios e làn-luchdaichte, dì-cheangail am bataraidh bhon charger agus dì-phlugaich an charger bhon t-socaid.
Figear 3: The Yofidra Li-Ion 3.0Ah battery pack, featuring multiple safety protections.
5.2 A ’stàladh a’ bhataraidh
- Dèan cinnteach gu bheil an trimmer callaid dheth.
- Align the battery pack with the battery slot on the trimmer.
- Sleamhnaich am pasgan bataraidh a-steach don t-slot gus an cliog e gu tèarainte na àite.
- Gus a thoirt a-mach, brùth air a’ phutan fuasglaidh bataraidh (ma tha e ann) agus sleamhnaich am bataraidh a-mach.
5.3 Removing the Blade Cover
- Before starting, carefully remove the blade cover from the cutting blades.
- Always replace the blade cover when the trimmer is not in use or during storage.
6. Stiùireadh Obrachaidh
Always wear appropriate PPE (safety glasses, gloves, hearing protection) before operating the hedge trimmer.
6.1 Tòiseachadh agus Stad
- Gus tòiseachadh: Hold the hedge trimmer firmly with both hands. Press and hold the safety switch (7) with one hand, then press the On/Off switch (2) with the other hand. The blades will begin to move.
- Gus stad: Release the On/Off switch (2). The blades will stop.
6.2 Dòighean-obrach Bearraidh
- Bearradh Coitcheann: Move the hedge trimmer in a smooth, sweeping motion along the hedge. The 22-inch double blades allow for precise and clean cuts, easily handling branches up to 20mm in diameter.
- Top Trimming: For flat tops, hold the trimmer level and move it steadily across the top of the hedge.
- Side Trimming: For vertical sides, hold the trimmer at a slight angle (5-10 degrees) to achieve a slightly tapered shape, which allows more light to reach the lower parts of the hedge.
- Motor gun bhruis: The efficient brushless motor provides up to 1600 RPM, ensuring high-efficiency cutting and reduced noise.
- Làimhseachadh rothlach: The 360-degree rotating handle allows for comfortable and precise cutting at various angles, reducing strain during extended use.
Figear 4: The 360-degree rotating handle facilitates precise cutting from various angles.
Figear 5: Demonstrating the hedge trimmer's cutting capability on a hedge.
The cordless design with a 3.0 Ah battery provides approximately 30 minutes of continuous use. For longer tasks, ensure you have a charged spare battery or plan for recharging breaks.
7. Cumail suas
Bidh cumail suas cunbhalach a’ dèanamh cinnteach à coileanadh as fheàrr agus a’ leudachadh beatha do ghearradair callaid.
- Always disconnect the battery mus dèan thu cumail suas no glanadh sam bith.
- Glanadh lann: After each use, clean the blades with a stiff brush to remove sap and debris. Apply a light coat of machine oil or blade lubricant to prevent rust and ensure smooth operation.
- A 'gearradh lann: Ma dh’fhàsas na lannan maol, faodaidh teicneòlaiche seirbheis teisteanasach an geurachadh. Na feuch rin geurachadh thu fhèin mura h-eil na h-innealan agus an eòlas ceart agad.
- Glanadh coitcheann: Wipe down the housing of the trimmer with a damp aodach. Na cleachd ceimigean cruaidh no innealan-glanaidh sgudail.
- Stòradh: Store the hedge trimmer in a dry, well-ventilated area, out of reach of children. Always attach the blade cover before storage.
- Cùram Bataraidh: Stòraich bataraidhean ann an àite fionnar, tioram. Na stòraich bataraidhean làn-luchdaichte airson ùine mhòr.
8. A ’dèanamh trioblaid
If you encounter problems with your hedge trimmer, refer to the following table for common issues and solutions.
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil an gearradair callaid a’ tòiseachadh. | Bataraidh gun a bhith air a stàladh gu ceart no air a leigeil ma sgaoil. Chan eil suidse sàbhailteachd an sàs. On/Off switch not pressed correctly. | Dèan cinnteach gu bheil am bataraidh làn-luchdaichte agus air a stàladh gu tèarainte. Press both the safety switch and the On/Off switch simultaneously. |
| Chan eil na lannan a’ gearradh gu h-èifeachdach. | Tha na lannan salach no maol. Cutting branches too thick. | Clean blades and apply lubricant. Sharpen blades if necessary (professional service recommended). Do not attempt to cut branches thicker than 20mm. |
| Spionnadh no fuaim anabarrach. | Co-phàirtean sgaoilte. Lannan air am milleadh. | Check for any loose screws or parts and tighten them. Inspect blades for damage; replace if necessary. If problem persists, contact customer support. |
| Tha beatha bataraidh nas giorra na bha dùil. | Bataraidh nach eil làn chosgais. Bataraidh sean no caite. Ag obair ann an teòthachd anabarrach. | Dèan cinnteach gu bheil am bataraidh làn-luchdaichte mus cleachd thu e. Smaoinich air bataraidh ùr a chur na àite ma tha i sean. Obraich taobh a-staigh nan raointean teòthachd a thathar a’ moladh. |
9. Sònrachaidhean
Technical specifications for the Yofidra Cordless Electric Hedge Trimmer.
| Feart | Sònrachadh |
|---|---|
| Modail Àireamh | sku006364Y_1-EU |
| Brand | Yofidra |
| Stòr cumhachd | Cumhachd bataraidh |
| Seòrsa bataraidh | Lithium Ion (1 included, 3.0 Ah) |
| Seòrsa motair | Gun bhruis |
| Luas motair | Suas gu 1600 RPM |
| Stuth lann | High Carbon Steel (SK5) |
| Fad Gearraidh | 52 cm (22 òirleach) |
| Trast-thomhas gearraidh as àirde | 20 mm |
| Meudan toraidh | 93 x 18 x 15 cm |
| Cuideam toraidh | 3.32 kg (approx. 1.5 kg without battery, as per description) |
| Dath | Turcach |
10. Barantas agus Taic
Yofidra products are manufactured to high-quality standards. In the unlikely event of a defect due to material or manufacturing fault, please contact your retailer or Yofidra customer support. Please retain your proof of purchase for warranty claims. Specific warranty terms and conditions may vary by region; refer to your purchase documentation for details.
For technical assistance or spare parts, please visit the official Yofidra weblàrach-lìn no cuir fios chun roinn seirbheis teachdaiche aca.
