Hafele Magnus Prime Cold Press Juicer Instruction Manual

1. Ro-ràdh agus Os a chionnview

The Hafele Magnus Prime Cold Press Juicer is designed for efficient juice extraction from fruits and vegetables, preserving maximum nutrients. Its slow-squeezing technology and wide inlet chute simplify the juicing process, making it a convenient addition to any kitchen.

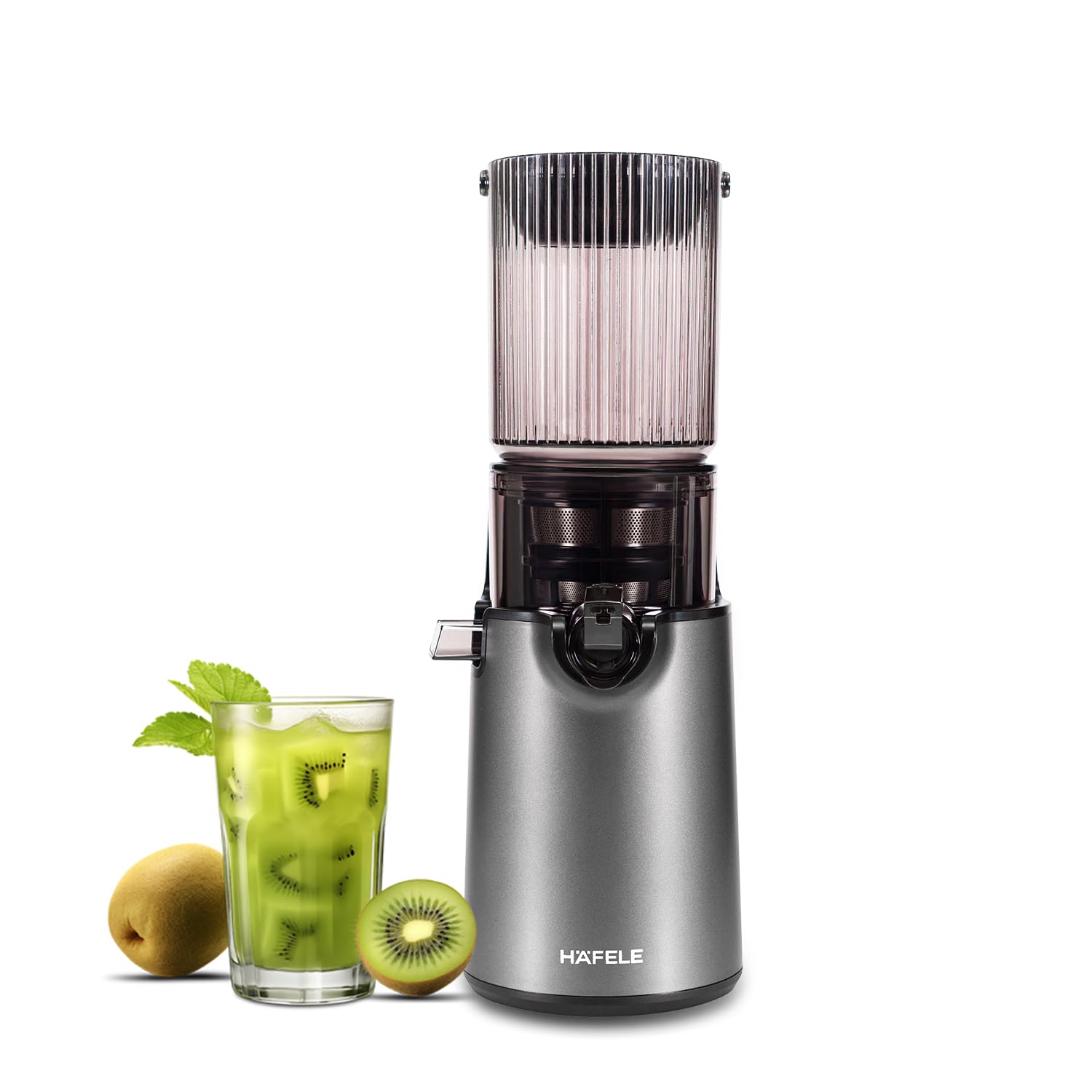

Image: Hafele Magnus Prime Cold Press Juicer in a kitchen setting, showcasing its sleek design and the fresh juice it produces.

2. Dè tha sa bhogsa

Nuair a dh’fhosglas tu am bogsa, dèan cinnteach gu bheil na pàirtean uile an làthair:

• Cold Press Juicer Assembly - 1 unit
• Pusher - 1 unit
• Juice Collection Cup - 1 unit
• Pulp Receiving Cup - 1 unit
• User Manual - 1 unit

Image: A detailed diagram illustrating all the individual parts of the Hafele Magnus Prime Cold Press Juicer, including the feeding cup, auger, juice filter, juice container with SmartFlow cap, main juicer component, pusher, juice collection cup, and pulp receiving cup.

3. Suidheachadh agus Seanadh

The Hafele Magnus Prime Cold Press Juicer features easily removable attachments for quick assembly. Follow these steps:

1. Place the main juicer component on a stable, flat surface.
2. Insert the juice container with the SmartFlow cap into the main component.
3. Place the juice filter inside the juice container.
4. Insert the auger into the filter.
5. Attach the feeding cup onto the top, ensuring it locks securely.
6. Position the juice collection cup and pulp receiving cup under their respective spouts.

Image: Visual guide showing four steps for assembling the juicer, from placing the main body to attaching the feeding cup.

4. Stiùireadh Obrachaidh

The juicer features a single button operation for ease of use. Ensure the juicer is properly assembled and plugged into a power outlet before operation.

1. Press the 'ON' button to start the juicer.
2. Utilize the 100 mm MagnaFeed Inlet to add whole fruits and vegetables, reducing the need for pre-cutting.
3. The auger rotates at a slow speed of 40 RPM, gently pressing ingredients to extract juice while preserving nutrients.
4. The SmartFlow System ensures thorough mixing of juices and the Smart Cap controls the juice flow during pouring.
5. Use the pusher for harder ingredients if necessary.
6. To reverse the auger direction (e.g., for clearing blockages), press the 'REV' button.
7. Once juicing is complete, press the 'OFF' button.

Image: The juicer actively extracting juice, with separate containers for juice and pulp, highlighting 'Less Waste' and 'More Juice'.

Image: A visual comparison between cold press juice and regular juice, illustrating the benefits of cold press in terms of maximum nutrients, higher juice yield, and smooth consistency.

Image: An infographic detailing the MagnaFeed Inlet, SmartFlow System, Single Button Operation, and Sleek and Compact Design features of the juicer.

5. Cumail suas agus Glanadh

Regular cleaning ensures optimal performance and longevity of your juicer. The easily removable attachments make cleaning simple.

1. Thoir am pluga den inneal-sùgh a-mach às an t-socaid cumhachd mus glan thu e.
2. Disassemble the juicer by reversing the assembly steps.
3. Rinse all removable parts under running water. Use the provided cleaning brush to remove pulp from the filter.
4. Most removable parts are dishwasher safe for added convenience.
5. Sguab am prìomh aonad motair le sanasamp aodach. Na bogadh an aonad motair ann an uisge.
6. Dèan cinnteach gu bheil na pàirtean uile gu tur tioram mus tèid an ath-chruinneachadh no an stòradh.

Image: Juicer parts placed in a dishwasher, indicating that they are safe for machine washing.

6. A ’dèanamh trioblaid

If you encounter any issues with your Hafele Magnus Prime Cold Press Juicer, refer to the following common troubleshooting tips:

• Juicer not turning on: Ensure the power cord is securely plugged into a working outlet and all parts are correctly assembled and locked into place.
• Stad am motair rè obrachadh: This may indicate an overload. Turn off the juicer, unplug it, disassemble, and clear any blockages. Allow the motor to cool down before restarting.
• Cus pronnadh anns an sùgh: Ensure the filter is clean and not clogged. For softer fruits, some pulp is normal.
• Fuaim àrd rè obrachadh: Check if all parts are correctly assembled and tightened. Ensure no foreign objects are inside the juicer.
• Toradh sùgh ìosal: Ensure ingredients are fresh. For fibrous ingredients, cut them into smaller pieces. The reverse function can help extract more juice.

Ma mhaireas na duilgheadasan, cuir fios gu taic luchd-cleachdaidh.

7. Sònrachaidhean

Image: The juicer displayed with its key dimensions (height, width, depth) indicated.

8. Barantas agus Taic

For warranty information, please refer to the documentation included with your product or visit the official Hafele website. For technical support, spare parts, or service inquiries, please contact Hafele customer service directly. Keep your purchase receipt and product model number handy for faster assistance.
