1. Ro-ràdh
Thank you for choosing the Quntis LED Cabinet Light. This manual provides essential information for the safe and efficient use of your new product. Please read these instructions carefully before installation and operation, and retain them for future reference.
2. Feartan toraidh
- High-Sensitivity PIR Motion Sensor: Detects motion within a 120° range and up to 10-16 feet (approx. 3-5 meters), automatically illuminating when movement is detected.
- Trì modhan solais: Choose between Always On Mode, Night Sensing Mode (activates only in dark environments), and All-day Sensing Mode (activates anytime motion is detected).
- USB-C Fast Charging & Long Battery Life: Equipped with a built-in 2200mAh rechargeable battery, fully charged in approximately 3 hours via the included 50cm USB-C cable. Provides 40-50 days of use in motion sensor mode or up to 13 hours in always-on mode.
- Stàladh furasta: Features strong internal magnets for direct attachment to metal surfaces, or use the included adhesive metal plates for non-metal surfaces. Tool-free setup allows for quick and versatile placement.
- Teòthachd Dath Atharrachail & Lasachadh gun Cheum: Fingerprint touch control allows switching between 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White). Long press for stepless brightness adjustment from 10% to 100%.
- Ultra-Thin Design & Durable Material: Slim 1cm thick aluminum alloy body ensures durability and a modern aesthetic, suitable for various interior spaces.
3. Pasgan-susbaint
- Quntis LED Cabinet Light (2 pieces)
- USB-C Charging Cable (50cm)
- Plataichean meatailt adhesive
- Leabhar-làimhe cleachdaiche
4. Fiosrachadh Sàbhailteachd
- Na cuir às no atharraich an toradh.
- Cùm air falbh bho uisge agus àrainneachdan àrd taiseachd.
- Cleachd dìreach an càball USB-C a tha air a thoirt seachad no càball co-ionann le teisteanas airson cosgais.
- Seachain an toradh a nochdadh gu fìor theodhachd no solas dìreach.
- Ensure the installation surface is clean and dry before applying adhesive plates.
5. Suidhich
5.1 Charging the Light
Before first use, fully charge the LED cabinet light. Connect the supplied USB-C cable to the charging port on the light and to a standard USB power adapter (not included). The indicator light will show charging status.
Image: The Quntis LED Cabinet Light connected via USB-C for charging, highlighting its 2200mAh battery and estimated usage times.
5.2 Stàladh
The Quntis LED Cabinet Light offers two convenient installation methods:
- Ceangal magnetach: For metal surfaces, simply place the light directly onto the surface. The built-in magnets will hold it securely.
- Adhesive Plate Attachment: For non-metal surfaces (wood, plastic, etc.), use the included adhesive metal plates.

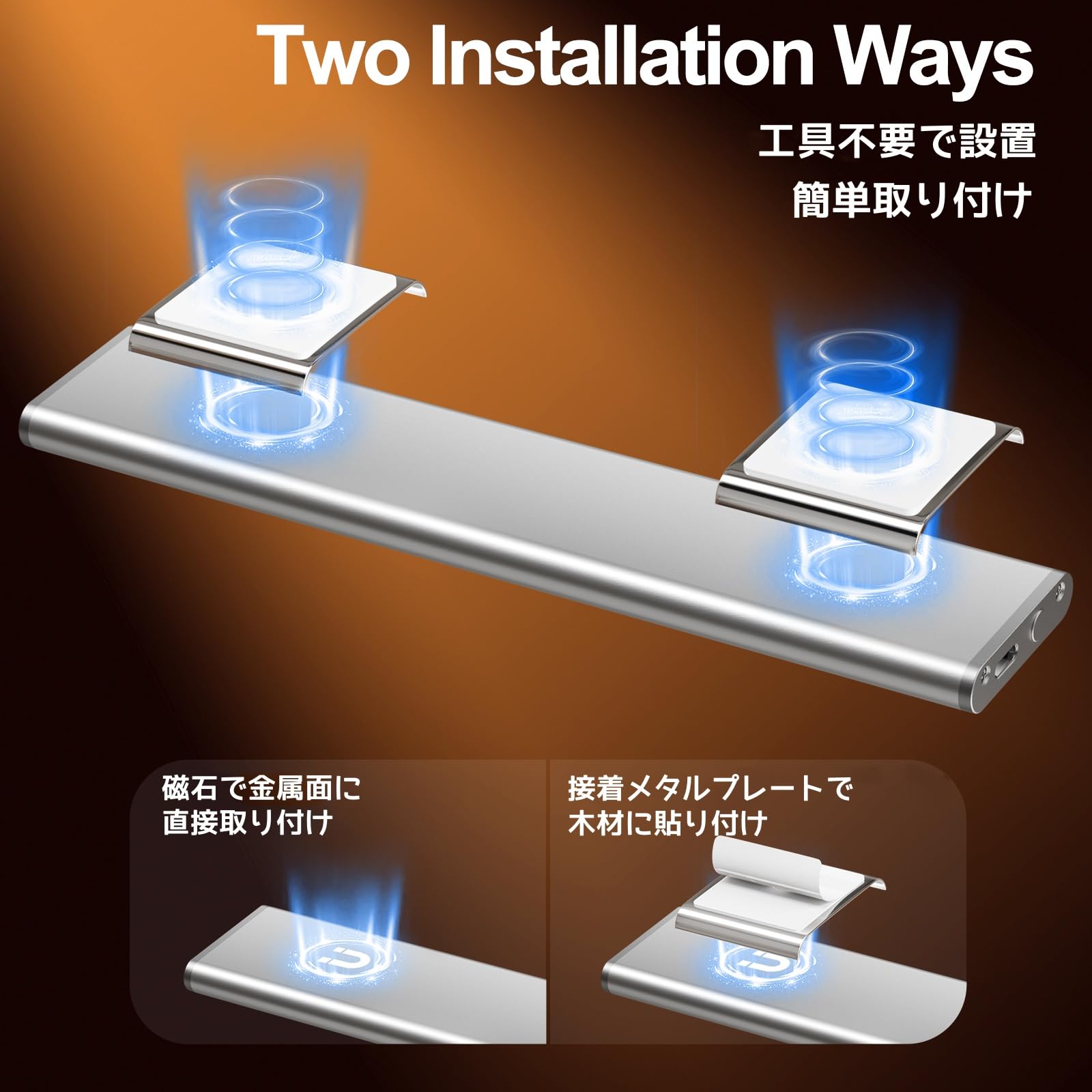

Image: Visual representation of the two installation methods: magnetic for metal surfaces and adhesive plates for other materials.
Steps for Adhesive Plate Installation:
- Clean the surface where you intend to install the light to ensure it is free of dust and grease.
- Peel off the protective film from the adhesive metal plate.
- Press the adhesive plate firmly onto the desired surface for a few seconds to ensure a strong bond.
- Attach the LED cabinet light to the metal plate using its built-in magnets.
Image: Step-by-step guide for installing the light using adhesive metal plates.
6. Stiùireadh Obrachaidh
The Quntis LED Cabinet Light features a multi-functional touch control button and a PIR motion sensor for versatile operation.
6.1 Power On/Off & Mode Selection
Use the fingerprint touch control button to cycle through the operating modes:
- Cliog Singilte: Gnìomhachadh An-còmhnaidh air Modh. The light remains continuously on.
- Cliog dùbailte: Gnìomhachadh Night Sensing Mode. The light will only turn on when motion is detected in a dark environment.
- Cliog triple: Gnìomhachadh All-day Sensing Mode. The light will turn on whenever motion is detected, regardless of ambient light conditions.
- Quadruple Click: Turns the light dheth.
Image: Illustration of how to use the touch control for different lighting modes.
6.2 Obrachadh Braitear Gluasaid
In Night Sensing Mode or All-day Sensing Mode, the built-in PIR sensor detects movement. The light will automatically turn on when motion is detected within its 120° range and up to 10-16 feet. If no further motion is detected for approximately 20 seconds, the light will automatically turn off to conserve battery.

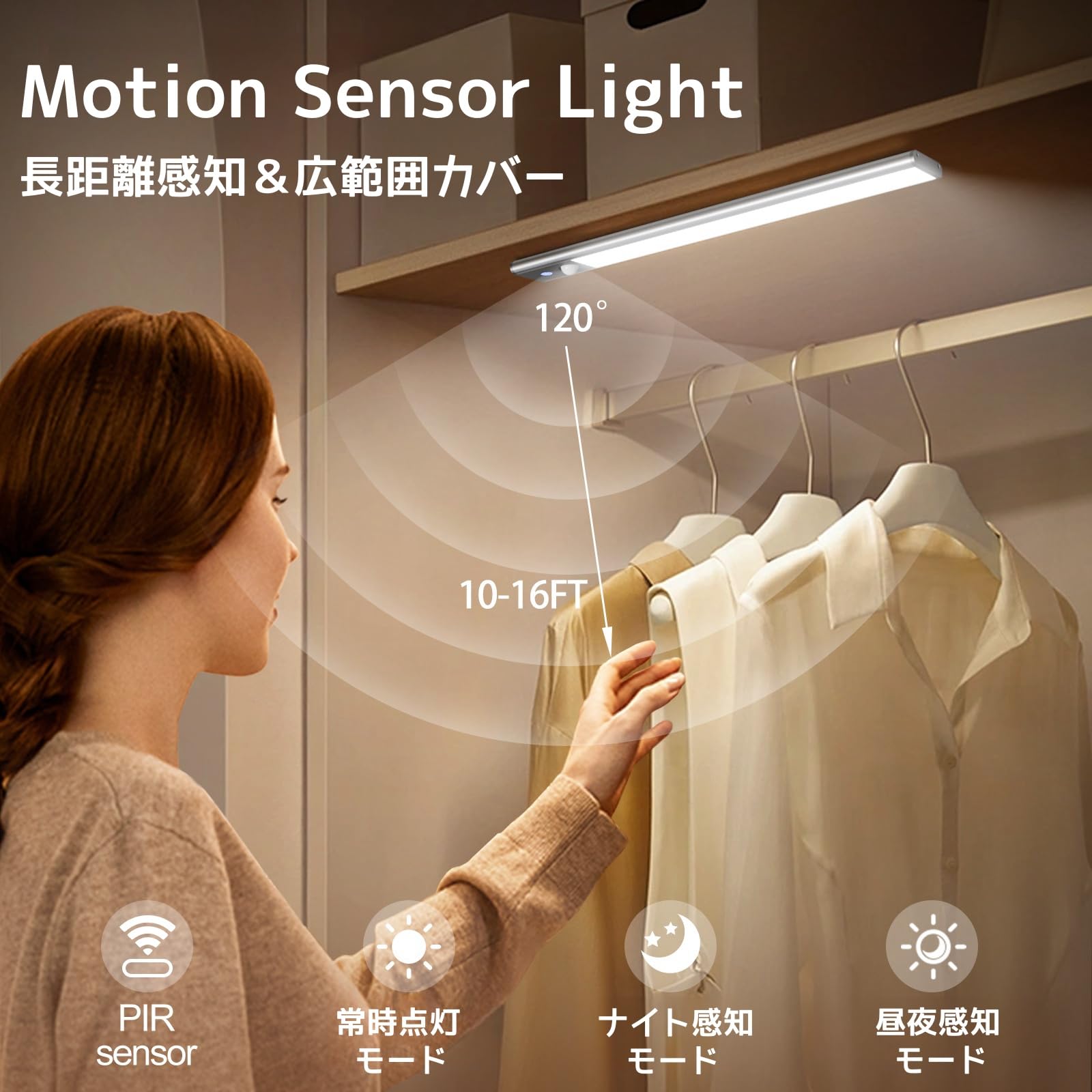

Image: The motion sensor light activating in a closet, demonstrating its detection capabilities.
Video: A demonstration of the Quntis LED Motion Sensor Light's automatic activation and shut-off feature when motion is detected and then ceases.
6.3 Color Teòthachd Atharrachadh
While the light is on, short press the fingerprint touch control button to cycle through the three available color temperatures: 3000K (Warm White), 4500K (Neutral White), and 6000K (Cool White).
6.4 Atharrachadh Soilleireachd (Lùghdachadh gun Cheum)
While the light is on, long press the fingerprint touch control button to adjust the brightness. The brightness will cycle between 10% and 100%. Release the button when the desired brightness level is reached.
Image: Visual guide for adjusting color temperature with a short press and brightness with a long press.
7. Cumail suas
7.1 Glanadh
To clean the light, gently wipe it with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the light in water.
7.2 Cùram Bataraidh
To prolong battery life, avoid fully discharging the light frequently. Charge the light regularly, especially if it has not been used for an extended period. Store the light in a cool, dry place when not in use.
8. A ’dèanamh trioblaid
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Cha bhith solas a ’tionndadh. | Battery is low or depleted. Incorrect mode selected. | Charge the light fully. Ensure the correct operating mode (Always On, Night Sensing, or All-day Sensing) is selected. |
| Chan eil sensor gluasad ag obair. | Light is in Always On Mode or Off. Ambient light is too bright (for Night Sensing Mode). Sensor is obstructed. | Switch to Night Sensing Mode or All-day Sensing Mode. Ensure the environment is dark enough for Night Sensing Mode. Clear any obstructions from the sensor. |
| Light falls off the surface. | Magnets not strong enough for the weight/surface. Adhesive plate not properly secured or surface was dirty. | Ensure the light is properly attached to the magnetic surface. If using adhesive plates, clean the surface thoroughly before re-applying new adhesive plates. Consider a more secure mounting method if the surface is unsuitable. |
| Chan urrainnear soilleireachd no teòthachd dath atharrachadh. | Obrachadh ceàrr. | Ensure the light is on. Short press for color temperature change. Long press for stepless dimming. |
9. Sònrachaidhean
- Brand: Quntis
- Modail: LI-HL-0033-SR-SWE
- Dath: Airgiod
- Meudan (L x W x H): 30 cm x 3 cm x 0.3 cm (mu 12 x 1.2 x 0.12 òirleach)
- Bataraidh: 2200mAh Rechargeable
- Port cosgais: USB-C
- Ùine cosgais: Mu thuairmeas. 3 uairean
- Ùine obrachaidh: 40-50 days (Motion Sensor Mode), up to 13 hours (Always On Mode)
- Teòthachd dath: 3000K (Geal Blàth), 4500K (Geal Neodrach), 6000K (Geal Fionnar)
- A' lùghdachadh: 10%-100% Stepless
- Raon mothachaidh gluasad: 120°, 10-16 ft (approx. 3-5 meters)
- Cuir dheth gu fèin-ghluasadach: 20 seconds (in sensor modes)
- Stuth: Alloy Aluminium
10. Barantas agus Taic
Quntis provides the following support for this product:
- Barantas 1-bliadhna: Product replacement for defects, no repair needed.
- 24-Hour Response: Customer support inquiries will receive a response within 24 hours.
- Tilleadh & Malairt an-asgaidh 30-latha: Hassle-free returns and exchanges within 30 days of purchase.
For further assistance or technical support, please contact Quntis customer service through your purchase platform or visit our official weblàrach.
