KICKER CXA400.1 Mono Class D Car Amplifier and CXARC Bass Knob Instruction Manual

Ro-ràdh

This manual provides essential information for the installation, operation, and maintenance of your KICKER CXA400.1 Mono Class D Car Amplifier and CXARC Remote Bass Control. Please read this manual thoroughly to ensure proper use and to achieve optimal performance from your audio system.

Ìomhaigh: Mullach view of the KICKER CXA400.1 Mono Class D Car Amplosgadair.

The KICKER CXA400.1 amplifier is designed for efficient power delivery to subwoofers, featuring a Class-D power plant and a compact design. The KICKER CXARC remote control allows for convenient adjustment of bass levels.

Fiosrachadh Sàbhailteachd

Cùm sùil an-còmhnaidh air na ceumannan sàbhailteachd a leanas nuair a bhios tu a’ stàladh agus ag obrachadh an amplosgadair:

• Disconnect the vehicle's battery negative terminal before making any electrical connections.
• Dèan cinnteach gu bheil a h-uile uèirleadh air a shligheadh ​​gu ceart agus tèarainte gus casg a chur air milleadh no cuairtean goirid.
• Cleachd uèirichean cumhachd is talmhainn den thomhas iomchaidh mar a tha air a shònrachadh san earrann stàlaidh.
• Seachain a bhith a 'stàladh an amplifier in locations exposed to excessive heat, moisture, or vibration.
• Na bi ag obrachadh an amplifier if it is damaged or malfunctioning. Refer to the troubleshooting section or contact KICKER support.
• Prolonged exposure to high sound pressure levels can cause permanent hearing loss. Use caution when adjusting volume levels.

Susbaint pacaid

Dèan cinnteach gu bheil a h-uile rud anns a’ phacaid agad:

• KICKER CXA400.1 Mono Class D Car Amplosgadair
• KICKER CXARC Remote Bass Control
• Mounting Hardware (screws, vertical mounting brackets)
• Leabhar-làimhe an t-Sealbhadair (an sgrìobhainn seo)

Stàladh agus stàladh

Tha stàladh ceart deatamach airson coileanadh agus sàbhailteachd as fheàrr. Mura h-eil thu cinnteach mu phàirt sam bith den phròiseas stàlaidh, bruidhinn ri stàlaichear proifeasanta.

A' cur suas an Amplosgadair

The CXA400.1 amplifier features a compact design and includes vertical mounting hardware for flexible installation options. Choose a location that is dry, well-ventilated, and protected from direct sunlight or excessive heat. Ensure there is sufficient space around the ampLifer airson cuairteachadh adhair.

Ceanglaichean wiring

All wiring should be done with the vehicle's battery disconnected. Use high-quality power, ground, and speaker wires of appropriate gauge.

Ìomhaigh: View of the KICKER CXA400.1 amplifier showing RCA input/output and control panel.

• Ceangal cumhachd: Connect the main power wire from the battery (with an inline fuse) to the ampCrìoch-uidhe +12V an t-solaraiche.
• Ceangal talmhainn: Connect a short, heavy-gauge ground wire from the amplifier's GND terminal to a clean, bare metal point on the vehicle's chassis.
• Tionndadh air astar: Ceangail an amplifier's REM terminal to the remote turn-on output of your head unit.
• Comharra inntrigidh: The CXA400.1 accepts both low-level (RCA) and high-level (speaker wire) input signals. It can accept up to 40 volts of speaker-level input, eliminating the need for line-out converters in many cases. Connect your head unit's RCA outputs to the amplifier's INPUT terminals for low-level input, or use the high-level input if your head unit does not have RCA outputs.
• Toradh neach-labhairt: Ceangail an subwoofer(s) agad ris amplifier's speaker output terminals. Ensure correct polarity.

Ìomhaigh: Taobh view of the KICKER CXA400.1 amplifer a’ sealltainn cinn-uidhe cumhachd, talmhainn, iomallach, agus luchd-labhairt.

Roghainnean tòiseachaidh

After all connections are made, reconnect the vehicle's battery. Before playing audio, set the amplifier's gain control to its minimum position. Adjust other settings like crossover and bass boost as needed for your specific audio setup.

Ag obrachadh an Amplifier and Bass Knob

The KICKER CXA400.1 amplifier offers several adjustable features to fine-tune your audio experience. The CXARC remote bass control provides convenient real-time adjustments.

Faigh smachd

Tha smachd buannachd a’ freagairt ris an amplifier's input sensitivity to the output level of your head unit. Start with the gain at minimum and slowly increase it until you hear distortion, then back off slightly. This ensures maximum clean signal from your head unit.

Roghainnean Crossover

Tha an amplifier features a variable 12dB low-pass crossover (50Hz–200Hz). This filter allows only frequencies below the set point to pass to the subwoofer, preventing higher frequencies from reaching it and improving overall sound clarity. Adjust this to blend smoothly with your main speakers.

Filter Subsonic

A 24dB/octave subsonic filter set at 25Hz helps protect your subwoofer by removing extremely low, inaudible frequencies that can cause excessive cone excursion and potential damage. It also improves efficiency by preventing the amplifier from wasting power on these frequencies.

Àrdachadh bass KickEQ

The KickEQ offers a variable 0-6dB bass boost centered at 40Hz. Use this feature to enhance low-frequency response. Adjust carefully to avoid distortion and speaker damage.

CXARC Remote Bass Control

The CXARC remote bass control connects to your CXA400.1 amplifier and allows you to adjust the bass level conveniently from the driver's seat. This provides on-the-fly control over your subwoofer's output without needing to access the amplosgadair gu dìreach.

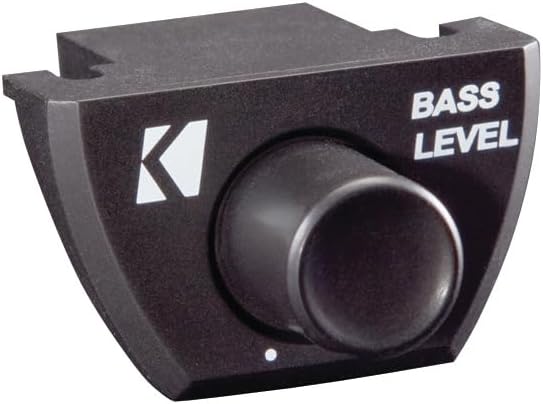

Image: The KICKER CXARC Remote Bass Control knob.

Cumail suas

Your KICKER amplifier and bass knob require minimal maintenance to ensure long-lasting performance.

• Glanadh: Glan bho àm gu àm an amplifier and remote with a soft, dry cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners.
• Ceanglaichean: Thoir sùil bho àm gu àm air na ceanglaichean uèiridh uile gus dèanamh cinnteach gu bheil iad tèarainte agus saor bho chreimeadh. Faodaidh ceanglaichean sgaoilte droch choileanadh no milleadh adhbhrachadh.
• Fionnarachadh: Dèan cinnteach gu bheil an amplifier's cooling fins are not obstructed to allow for proper heat dissipation.

Fuasgladh thrioblaidean

If you experience issues with your KICKER amplifier, thoir sùil air na duilgheadasan agus na fuasglaidhean cumanta a leanas:

• Gun chumhachd: Check the inline fuse on the power wire, ensure the ground connection is solid, and verify the remote turn-on wire is receiving 12V when the head unit is on.
• Gun fhuaim: Check all input and output connections. Ensure the gain is not set to minimum. Verify the head unit is sending an audio signal. Check speaker wires for shorts or open circuits.
• Fuaim air a shaobhadh: Reduce the gain setting. Check for proper crossover and bass boost settings. Ensure the input signal is not overdriven.
• AmpCus teasachadh an lifier: Dèan cinnteach gu bheil fionnarachadh gu leòr timcheall air amplifier. Check the impedance of your speakers; ensure it matches the ampcomasan an neach-togail.
• Remote Bass Knob Not Working: Check the connection cable between the CXARC and the amplifier. Dèan cinnteach gu bheil an amptha cumhachd aig an lifier air.

If problems persist after checking these points, contact KICKER customer support.

Sònrachaidhean

Barantas

The KICKER CXA400.1 Amplifier and CXARC Bass Knob are covered by a Barantas Dèanadair 1-bliadhna. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation included with your product or visit the official KICKER weblàrach.

Taic

For technical assistance, troubleshooting, or warranty inquiries, please contact KICKER customer support. You can find contact information and additional resources on the official KICKER website. When contacting support, please have your product model number (CXA400.1, CXARC) and proof of purchase readily available.
