1. Ro-ràdh
Thank you for choosing the JOOM JU011-12 Contactless Kitchen Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new kitchen faucet. Please read these instructions thoroughly before installation and keep them for future reference.
Image: The JOOM JU011-12 Contactless Kitchen Faucet, showcasing its modern design and brushed stainless steel finish.
2. Feartan toraidh
- Contactless Operation: Equipped with intelligent chips and a responsive sensor for hands-free water activation.
- 3-in-1 Multi-mode Sprayer: Features Stream, Broom, and Rain spray modes for versatile cleaning tasks.
- Spraeire Tarraing-Sìos: Includes a 24-inch braided hose with 360° rotation for extended reach and flexibility.
- Auto-Retraction Technology: Ensures the sprayer hose smoothly retracts back into place after use.
- Gnìomh Eas: Provides a unique cascade water flow option.
- Togail seasmhach: Made from high-quality stainless steel with a brushed finish.
- Smachd aon-làimhseachaidh: Allows for easy adjustment of water temperature and flow.

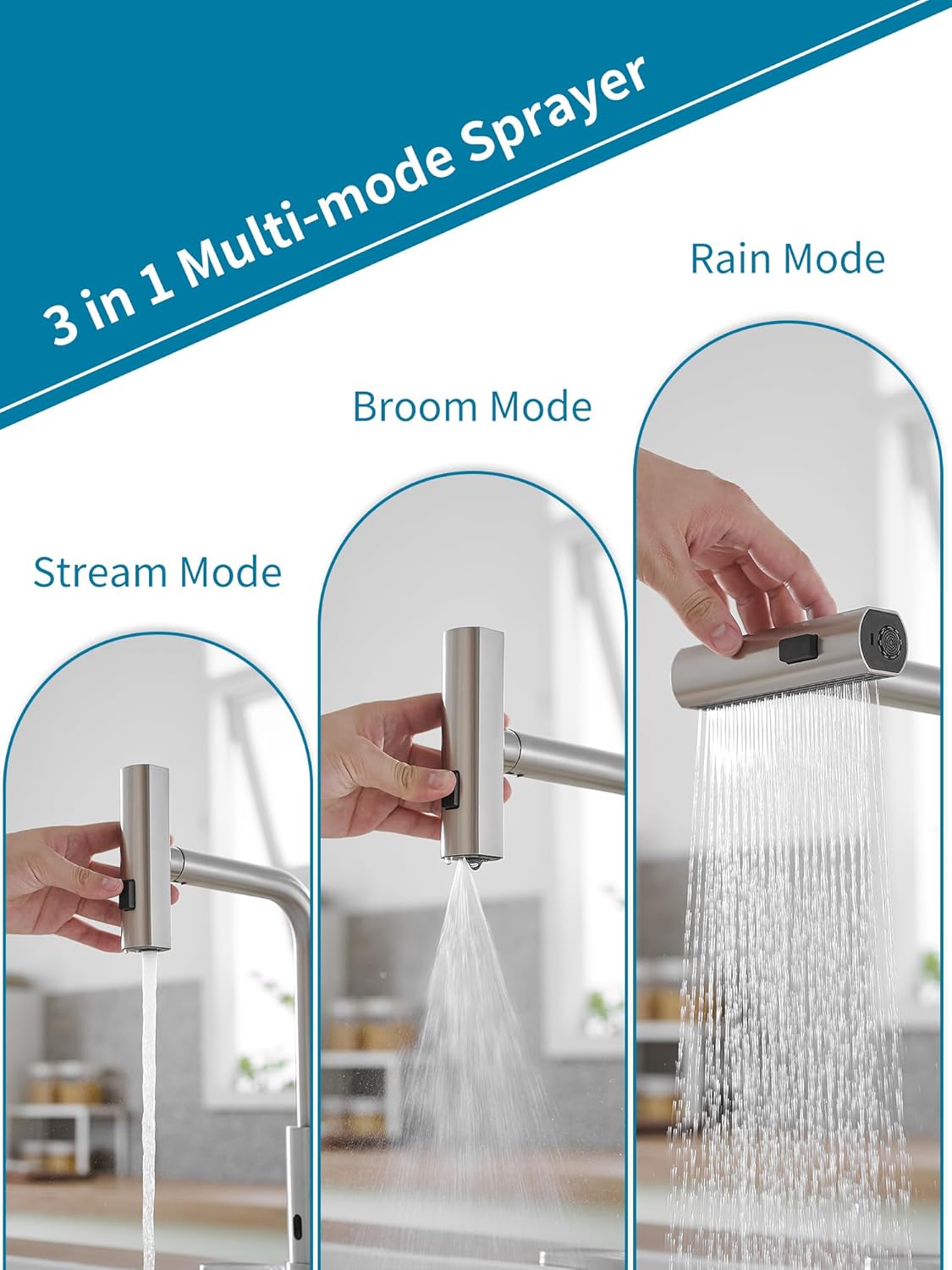

Image: The faucet's sprayer head demonstrating the three distinct water modes: Stream, Broom, and Rain.
Image: The pull-down sprayer extended from the faucet, highlighting the 24-inch braided hose and 360-degree swivel capability, along with the auto-retraction weight.
Ìomhaigh: Sealladh dlùth view of the faucet's intelligent chip sensor, indicating fast response for contactless operation.

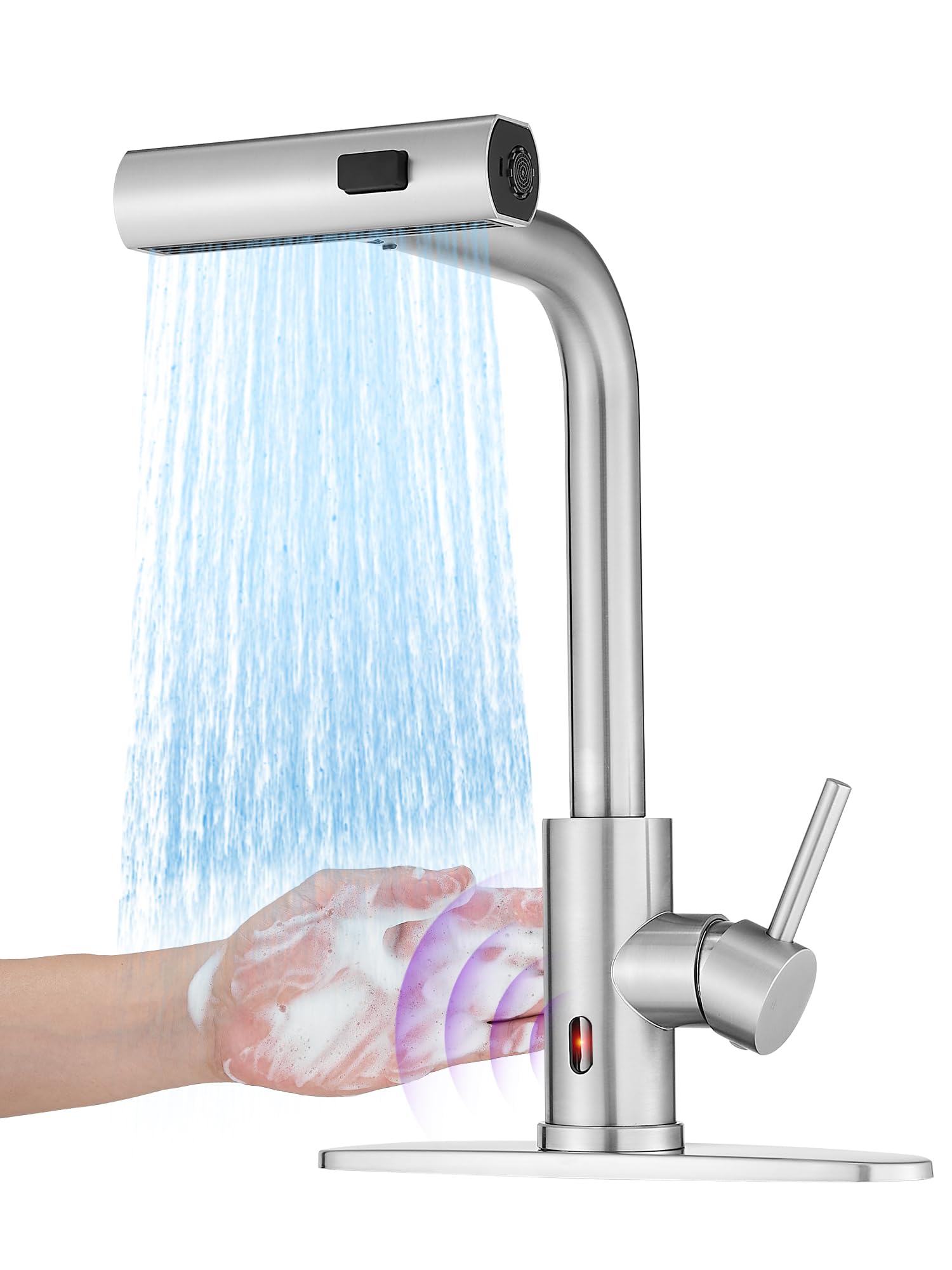

Image: A hand activating the contactless sensor on the faucet, showing water flowing in response to the gesture.
3. Sònrachaidhean
| Brand | JOOM |
| Modail Àireamh | JU011-12 |
| Cleachdadh air a mholadh | Cidsin |
| Seòrsa stàladh | Mount Dec |
| Seòrsa Crìochnachaidh | Bruisgte |
| Stuth | Stàilinn nach meirg |
| Àireamh de làmhan | 1 |
| Feartan sònraichte | Pull-down Sprayer, Contactless Sensor, Waterfall Function |
| Trast-thomhas toll sreap | 3.2-3.5 cm (1-3/10" ~ 1-3/8") |
| Max Countertop Thickness | 5 cm (2 òirleach) |
| Hose Sizes Supported | M 10x1, G3/8 |
Image: Detailed diagram showing the faucet's dimensions in centimeters and inches, along with mounting hole diameter and maximum countertop thickness requirements.
4. Fiosrachadh Sàbhailteachd
- Cuir dheth am prìomh sholar uisge an-còmhnaidh mus tòisich thu air stàladh no cumail suas sam bith.
- Cuir ort uidheam dìon pearsanta iomchaidh, leithid speuclairean sàbhailteachd agus miotagan, rè an stàlaidh.
- Dèan cinnteach gu bheil a h-uile ceangal tèarainte gus casg a chur air aodion. Na teannaich cus.
- Mura h-eil thu cinnteach mu phàirt sam bith den phròiseas stàlaidh, bruidhinn ri plumaire teisteanasach.
- Cùm pàirtean beaga air falbh bho chloinn gus casg a chuir air cunnartan tachdadh.
5. Stiùireadh stàlaidh
Follow these steps for proper installation of your JOOM kitchen faucet:
Image: A four-panel diagram illustrating the initial installation steps: 1) Installing the nut kit from below, 2) Tightening the nut kit with a screwdriver, 3) Connecting hot and cold water pipes to the valve, and 4) Installing the hose load-bearing ball.

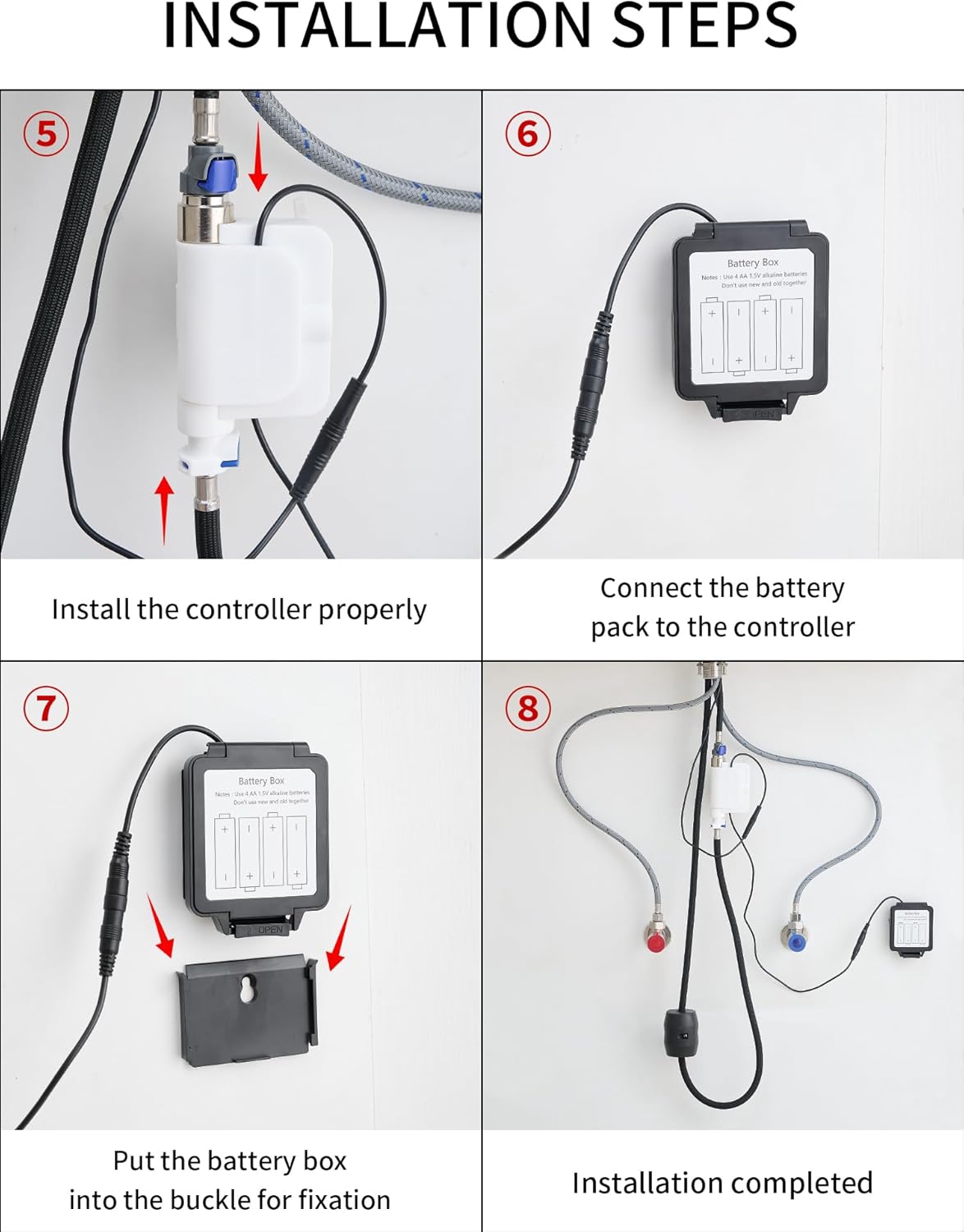

Image: A four-panel diagram illustrating the final installation steps: 5) Installing the controller, 6) Connecting the battery pack to the controller, 7) Securing the battery box into its buckle, and 8) A view of the completed installation under the sink.
- Ullaich an toll-sreap: Ensure your countertop has a suitable mounting hole (3.2-3.5 cm diameter) and is not thicker than 5 cm.
- Stàlaich an tap: Cuir corp an tap a-steach don toll sreap.
- Secure the Faucet (Step 1 & 2): From underneath the sink, install the nut kit onto the faucet shank and tighten it securely using a screwdriver until the faucet is stable.
- Connect Water Lines (Step 3): Connect the hot and cold water supply lines to the corresponding inlets on the faucet's valve. Ensure a tight, leak-free connection.
- Install Hose Load-Bearing Ball (Step 4): Attach the load-bearing ball to the pull-down hose underneath the sink. This provides the necessary weight for hose retraction.
- Install the Controller (Step 5): Mount the electronic controller unit in an accessible location under the sink.
- Connect Battery Pack (Step 6 & 7): Connect the battery pack to the controller. Insert the battery box into its designated buckle for fixation. Ensure batteries are correctly inserted (typically 4 AA batteries, not included).
- Deuchainn airson aoidion: Turn on the main water supply and check all connections for any leaks.
6. Obrachadh
- Manual Handle Operation: Use the single handle to control water flow and temperature. Lift the handle to turn on/off water and move it left/right for hot/cold water.
- Contactless Sensor Operation: Wave your hand near the sensor located on the faucet body to activate or deactivate water flow. The intelligent chip ensures a fast response.
- Changing Sprayer Modes: Press the button on the sprayer head to cycle through the Stream, Broom, and Rain modes.
- A’ cleachdadh an spraeire tarraing-sìos: Gently pull the sprayer head from the spout for extended reach. The 24-inch braided hose and 360° rotation allow for flexible use. When finished, the auto-retraction technology will pull the hose back into place.
- Gnìomh Eas: The faucet also features a waterfall mode, providing a broad, gentle flow of water.
Image: A person using the pull-down sprayer to rinse fruits in a colander, demonstrating the practical application of the sprayer function.
7. Cumail suas agus Cùram
- Glanadh: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed stainless steel finish.
- Cumail suas sensor: Keep the sensor area clean and free from obstructions to ensure proper contactless operation.
- Glanadh an adhair: Periodically unscrew and clean the aerator (if applicable) to remove mineral deposits and maintain optimal water flow.
- Sgrùdadh Hose: Regularly check the pull-down hose for any signs of wear or damage.
- Ath-nuadhachadh bataraidh: If the contactless function becomes unresponsive or intermittent, replace the batteries in the battery pack.
8. A ’dèanamh trioblaid
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Sruth uisge ìosal | Partially closed water supply valves, clogged aerator, debris in water lines. | Ensure hot and cold water supply valves are fully open. Clean or replace the aerator. Flush water lines. |
| Contactless sensor not working | Dead batteries, obstructed sensor, sensor malfunction. | Replace batteries in the battery pack. Clean the sensor area. If problem persists, contact customer support. |
| Aodion bho cheanglaichean | Loose connections, damaged O-rings/washers. | Tighten connections carefully. Inspect and replace any damaged O-rings or washers. |
| Sprayer hose does not retract fully | Obstruction under the sink, incorrect weight placement. | Clear any obstructions around the hose under the sink. Ensure the load-bearing ball is correctly positioned. |
9. Barantas agus Taic
This JOOM product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact JOOM customer service.
For technical support, replacement parts, or any questions regarding your JOOM JU011-12 faucet, please contact our customer support team through the retailer where you purchased the product or visit the official JOOM weblàrach.
