1. Ro-ràdh
This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of the ALLIANCE LAUNDRY SYSTEMS F8204701P 3Hp Drive Assembly. This component is a genuine OEM part designed for specific commercial laundry equipment. Please read this manual thoroughly before attempting any installation or service.
2. Fiosrachadh Sàbhailteachd
WARNING: Risk of electrical shock, injury from moving parts, or property damage.
- Feumaidh an stàladh agus an t-seirbheis a bhith air a dhèanamh le teicneòlaiche teisteanasach.
- Disconnect power to the laundry equipment before beginning any installation, maintenance, or troubleshooting.
- Cuir ort uidheam dìon pearsanta (PPE) iomchaidh, a’ gabhail a-steach speuclairean sàbhailteachd agus miotagan.
- Dèan cinnteach gu bheil a h-uile ceangal tèarainte agus air a insaladh gu ceart gus casg a chur air cunnartan dealain.
- Refer to the main equipment's service manual for specific safety procedures and wiring diagrams.
3. Pasgan-susbaint
Dearbhaich gu bheil na pàirtean uile an làthair agus gun mhilleadh nuair a gheibhear iad.
- 1 x ALLIANCE LAUNDRY SYSTEMS F8204701P 3Hp Drive Assembly
4. Setup agus Stàladh
This drive assembly is a critical component of commercial laundry machines. Proper installation is crucial for safe and efficient operation. This part is compatible with Huebsch, Ipso, Speed Queen, and UniMac washers manufactured by Alliance Laundry Systems.
- Ag ullachadh: Ensure the laundry machine is completely powered off and disconnected from its power source. Allow any moving parts to come to a complete stop.
- Cothrom: Follow the specific instructions in your machine's service manual to gain access to the existing drive assembly. This may involve removing panels, belts, or other components.
- Toirt air falbh Seann Cho-chruinneachadh: Carefully disconnect any electrical wiring, mounting bolts, and drive belts from the old drive assembly. Note the orientation and connections for reassembly.
- Stàladh Seanadh Ùr: Position the new F8204701P drive assembly in the designated location. Secure it with the appropriate mounting hardware, ensuring it is firmly seated.
- Ceanglaichean: Reconnect all electrical wiring according to the machine's wiring diagram. Ensure all connections are tight and properly insulated. Reinstall drive belts, ensuring correct tension.
- Dearbhadh: Before reassembling the machine panels, perform a visual inspection to confirm all components are correctly installed and secured.
- Deuchainn: Restore power to the machine and perform a test cycle to ensure the new drive assembly functions correctly and without unusual noises or vibrations.

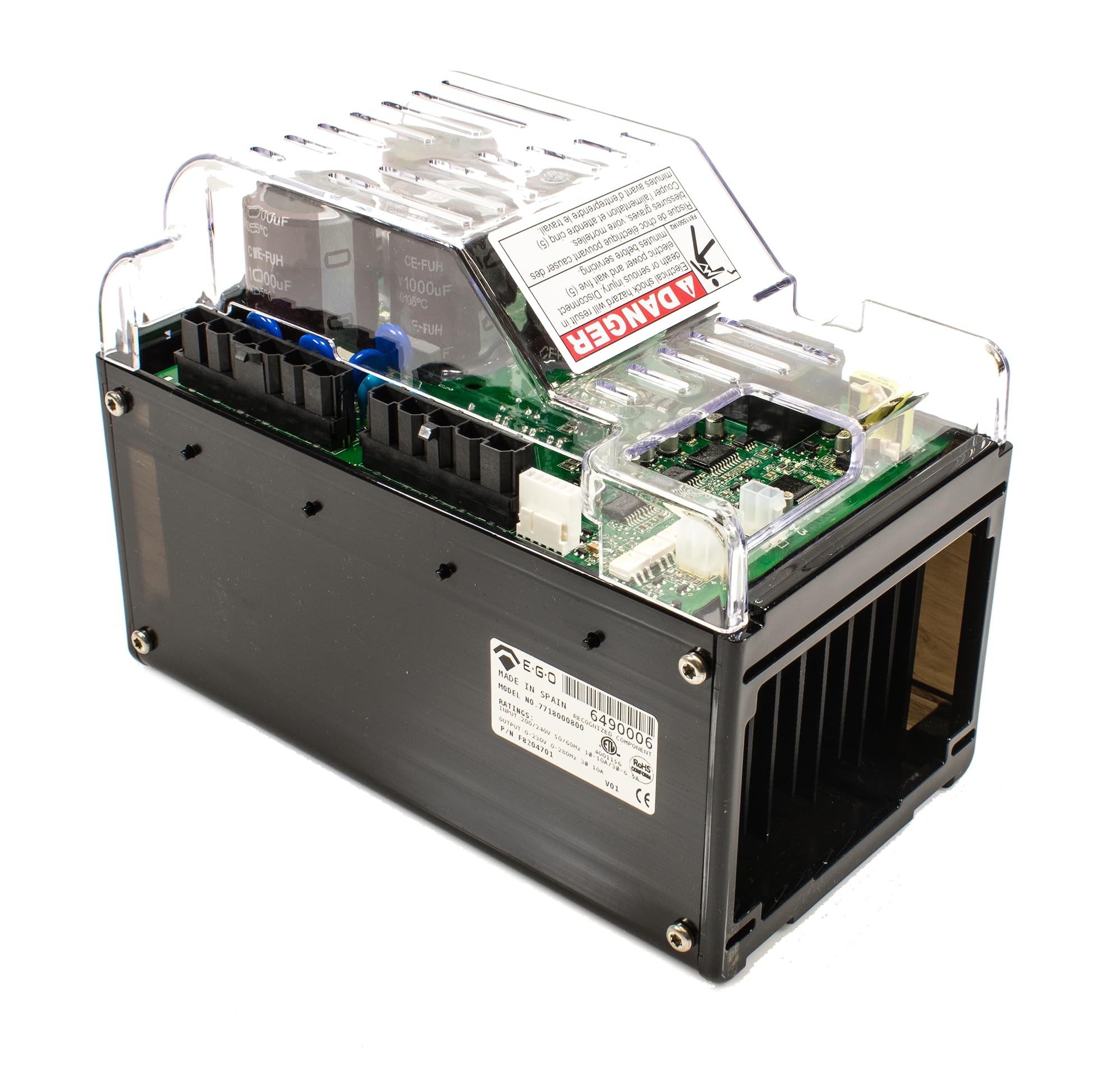

Image of the ALLIANCE LAUNDRY SYSTEMS F8204701P 3Hp Drive Assembly, showing its overall structure and components.
5. Obrachadh
The F8204701P drive assembly is an internal component that facilitates the mechanical operation of the laundry machine. Once correctly installed, its operation is integrated with the machine's control system. No direct user interaction with the drive assembly itself is required during normal machine operation.
Ensure that the machine operates smoothly and quietly after installation. Any unusual noises, vibrations, or failure to initiate cycles may indicate an installation issue or a problem with other machine components.
6. Cumail suas
The F8204701P drive assembly is designed for durability and typically requires minimal direct maintenance. However, regular inspection of the surrounding components can help ensure its longevity and proper function.
- Sgrùdadh ràitheil: During routine machine maintenance, visually inspect the drive assembly for any signs of wear, damage, loose connections, or excessive dust/debris buildup.
- Teannachadh crios: Check the tension and condition of any drive belts connected to the assembly. Replace worn or cracked belts as needed, and adjust tension according to the machine's service manual.
- Glanadh: Keep the area around the drive assembly clean and free from lint, dirt, and moisture to prevent overheating and premature wear.
- Seirbheis Proifeiseanta: If any issues are detected or if the drive assembly exhibits unusual behavior, contact a qualified service technician for inspection and repair.
7. A ’dèanamh trioblaid
If the laundry machine experiences issues after the drive assembly replacement, consider the following common troubleshooting steps. Always ensure power is disconnected before inspecting internal components.
| Comharradh | Adhbhar a dh’fhaodadh a bhith ann | Gnìomh |
|---|---|---|
| Machine does not start or agitate/spin | Loose electrical connection, faulty wiring, incorrect belt tension, or other machine component failure. | Verify all electrical connections to the drive assembly are secure. Check belt tension. Consult the machine's service manual for diagnostic codes. |
| Unusual noises (grinding, squealing) | Misaligned components, worn bearings (internal to drive assembly), loose mounting, or worn drive belt. | Inspect mounting for tightness. Check belt condition and alignment. If noise persists, the drive assembly may require professional inspection or replacement. |
| Crathadh cus | Improper mounting, unbalanced load (not related to drive assembly but can mimic symptoms), or internal drive assembly issue. | Ensure the drive assembly is securely mounted. Verify the machine is level. If the issue persists, professional diagnosis is recommended. |
For complex issues or if troubleshooting steps do not resolve the problem, contact a certified service technician.
8. Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Pàirt Àireamh | F8204701P |
| Dèanadair | Siostaman nigheadaireachd Alliance |
| Horsepower (Hp) | 3 h |
| Co-fhreagarrachd | Huebsch, Ipso, Speed Queen, UniMac Washers |
| Cuideam nì | 6.27 notaichean (timcheall air 2.84 kg) |
| Meud pacaid | 16 x 12 x 12 òirleach (timcheall air 40.6 x 30.5 x 30.5 cm) |
| Meud pacaid nì | 1 |
| ASIN | B0CXT8HFF3 |
9. Barantas agus Taic
For information regarding the warranty of your ALLIANCE LAUNDRY SYSTEMS F8204701P 3Hp Drive Assembly, please refer to the documentation provided with your original purchase or contact Alliance Laundry Systems directly. Keep your proof of purchase for warranty claims.
For technical support or service inquiries, please contact your authorized Alliance Laundry Systems dealer or a qualified service technician.
