CLOVER D25-B-TL Touchless Water Cooler Purifier Dispenser User Manual

Ro-ràdh

Thank you for choosing the CLOVER D25-B-TL Touchless Water Cooler Purifier Dispenser. This advanced system provides convenient access to purified cold and ambient water. Featuring a GAC filtration system, UV LED self-cleaning, and touchless dispense technology, it ensures a hygienic and refreshing hydration experience. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your dispenser.

Figear 1: Aghaidh view of the CLOVER D25-B-TL Water Cooler Dispenser.

Fiosrachadh Sàbhailteachd Cudromach

Leugh a h-uile stiùireadh gu faiceallach mus cleachd thu an inneal. Cùm an leabhar-làimhe seo airson fiosrachadh san àm ri teachd.

• Sàbhailteachd dealain: Ensure the dispenser is connected to a grounded electrical outlet. Do not use extension cords. Disconnect power before cleaning or servicing.
• Ceangal uisge: Connect the dispenser only to a potable water supply. Ensure all connections are secure to prevent leaks.
• Suidheachadh: Place the dispenser on a flat, stable surface. Allow adequate clearance around the unit for ventilation.
• Clann is Peataichean: Keep children and pets away from the dispenser, especially during operation and maintenance.
• Teòthachd: This unit dispenses cold and ambient water only. It does NOT produce hot water.
• Milleadh: Do not operate the dispenser if it has a damaged cord or plug, or if it has been dropped or damaged in any way. Contact customer support.

Susbaint pacaid

Verify that all items listed below are included in your package.

• CLOVER D25-B-TL Water Cooler Dispenser
• First Filter (GAC Purification System)
• Tubing uisge
• Ceangalaichean
• Emergency Shutoff Valve
• Tubing Clips
• Leabhar-làimhe cleachdaiche

Figure 2: Included installation kit components.

Stiùiridhean rèiteachaidh

1. A' dì-phapadh: Carefully remove the dispenser and all components from the packaging. Retain packaging for future transport if needed.
2. Suidheachadh: Position the freestanding dispenser on a level, stable surface. Ensure there is adequate space around the unit for proper ventilation, especially at the rear where the cooling coils are located. The dimensions are approximately 13.58"D x 12.2"W x 43.3"H.
3. Stàladh sìoltachain:
   • Locate the filter housing, typically at the rear or bottom access panel of the unit.
   • Insert the provided GAC purification filter into the housing as per the arrows indicating water flow.
   • Secure the filter firmly.

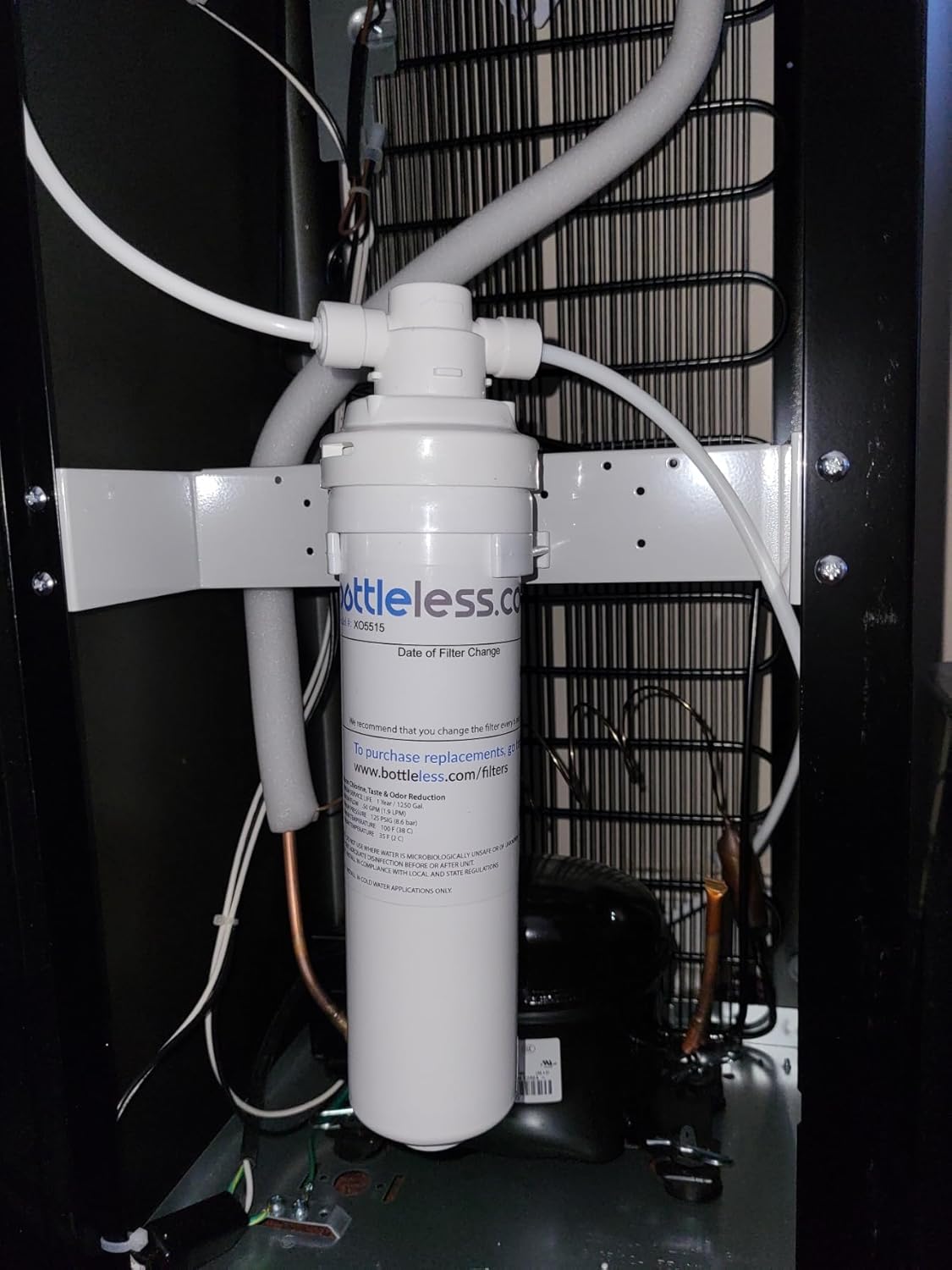

   Figear 3: Taobh a-staigh view illustrating filter placement and water tubing.
4. Ceangal solair uisge:
   • Connect the water tubing from your potable water source to the dispenser's inlet using the provided connectors and emergency shutoff valve.
   • Ensure all connections are tight to prevent leaks. Use tubing clips to secure the tubing if necessary.
   • Slowly open the water supply valve to allow water to fill the dispenser's internal tank. Check for any leaks.
5. Ceangal cumhachd: Plug the dispenser into a grounded 120V AC electrical outlet.
6. Sruthadh Tùsail: Before first use, dispense several cups of water from both cold and ambient spouts to flush the system and filter. Discard this water.

Stiùireadh Obrachaidh

The CLOVER D25-B-TL features touchless dispense and UV LED self-cleaning for enhanced hygiene.

1. Cumhachd air: Once plugged in, the dispenser will begin to cool the water. Allow approximately 1-2 hours for the water to reach optimal cold temperature (35.6°F).
2. Dispensing Water (Touchless):
   • Place your cup or container under the desired spout (cold or ambient).
   • Wave your hand in front of the sensor located above the spout. The water will begin to dispense.
   • Remove your hand to stop the water flow.


   Figure 4: Detail of the touchless dispense spouts and sensors.

3. UV LED Self-Cleaning: The dispenser is equipped with a UV LED self-cleaning system for enhanced water purification. This system operates automatically to maintain the hygiene of the internal water tanks. Refer to the indicator lights on the top panel for its status.

Cumail suas

Regular maintenance ensures the best performance and water quality from your dispenser.

1. Ath-chur sìoltachain:
   • The GAC purification filter should be replaced periodically, typically every 6 months or as indicated by the dispenser's filter change indicator (if present).
   • Turn off the water supply and unplug the dispenser before replacing the filter.
   • Follow the filter installation steps in the Setup section to replace the old filter with a new one.
   • Flush the new filter as described in the Initial Flush step.
2. Glanadh treidhe drip: The ABS drip tray is easily removed for cleaning.
   • Pull the drip tray forward to remove it.
   • Empty any collected water and wash the tray with mild soap and water.
   • Rinse thoroughly and reinsert the tray.
3. Glanadh a-muigh: Sguab na h-uachdaran a-muigh le bog, damp aodach. Na cleachd luchd-glanaidh sgudail no solventan.
4. Internal Tank Cleaning: The UV LED self-cleaning system helps maintain internal hygiene. For additional cleaning, consult the manufacturer's website or customer support for specific instructions.

Fuasgladh thrioblaidean

Mus cuir thu fios gu taic luchd-cleachdaidh, thoir sùil air na cùisean agus na fuasglaidhean cumanta a leanas:

Sònrachaidhean

Figear 5: Meudan toraidh airson fiosrachadh suidheachaidh.

Barantas agus Taic Luchd-cleachdaidh

For warranty information, product registration, or technical assistance, please contact CLOVER customer support.

Dèanadair: Seamrag
Weblàrach: CLOVER Official Store (airson fiosrachadh coitcheann mun toradh)
Feuch an toir thu sùil air na sgrìobhainnean ceannach agad airson teirmichean barantais sònraichte agus fiosrachadh conaltraidh.
