TASI TA500 Series Digital Tachometer User Manual

1. Ro-ràdh

This manual provides essential information for the safe and effective operation of your TASI TA500 series digital tachometer. The TA500 series includes models TA500A, TA500B, and TA500C, designed for accurate measurement of rotational and linear speeds. This device features both non-contact (photoelectric) and contact measurement capabilities, automatic ranging, and a clear digital display. It is suitable for a wide range of applications in various industries, including electric motors, fans, washing machines, automobiles, and more.

Please read this manual thoroughly before using the device and retain it for future reference.

2. Toradh thallview

The TASI TA500 series tachometer is a portable, handheld instrument engineered for precision. Its compact and lightweight design ensures ease of use and portability. Key features include a large LCD screen for clear readings, a memory function to store measurement data, and a dual-purpose design allowing for both non-contact and contact measurements.

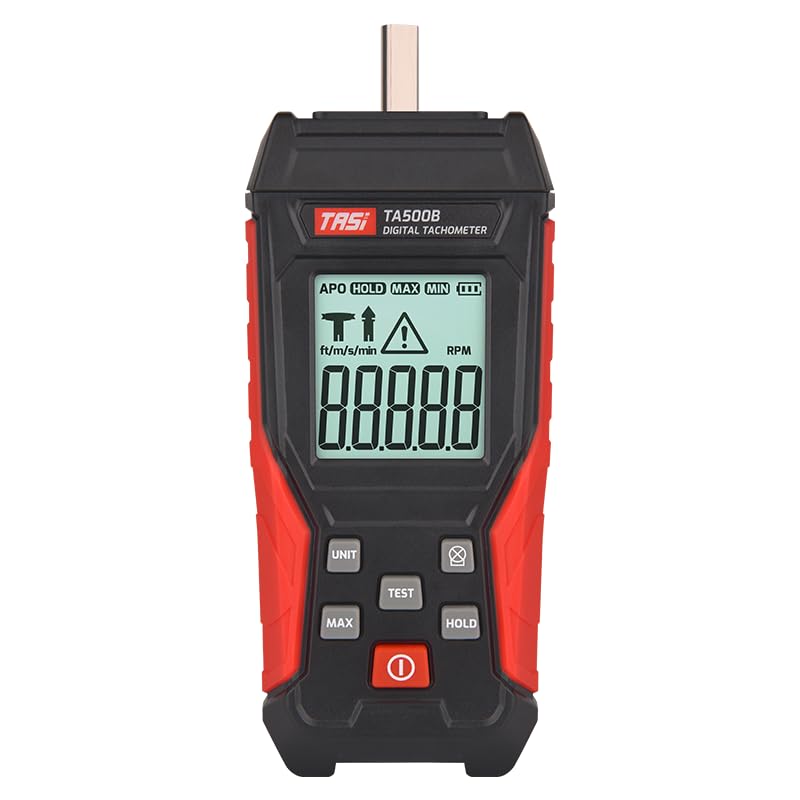

Figear 2.1: Aghaidh view of the TASI TA500B Digital Tachometer, showing the display and control buttons.

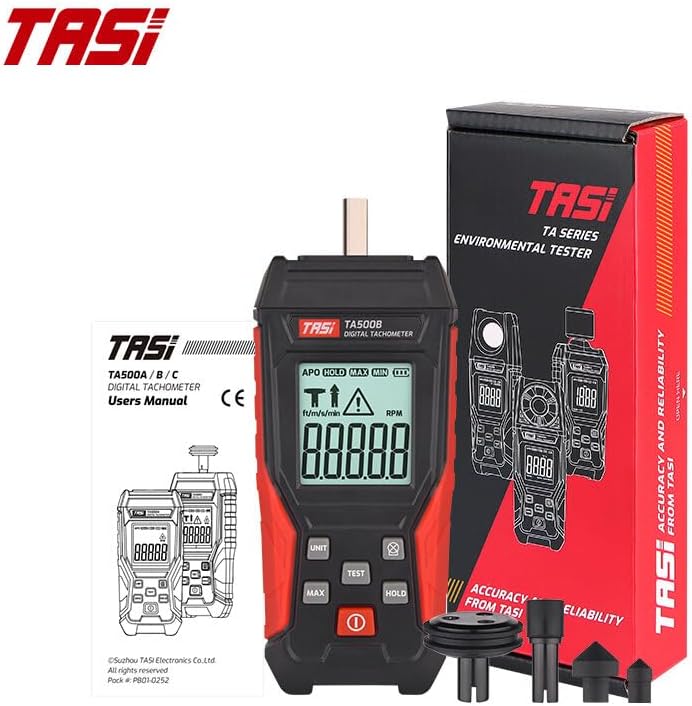

Figure 2.2: The TASI TA500B Digital Tachometer shown with its retail packaging and various contact measurement accessories.

3. Suidhich

3.1 Stàladh bataraidh

The TA500 series tachometer requires two AA batteries for operation. Batteries are not included with the device.

1. Lorg còmhdach roinn a’ bhataraidh air cùl an inneil.
2. Sleamhnaich no dì-chrioptaich an còmhdach gus an roinn fhosgladh.
3. Cuir a-steach dà bataraidh AA, a’ dèanamh cinnteach gu bheil am polarachd cheart (+ agus -) mar a tha air a chomharrachadh taobh a-staigh a’ bhataraidh.
4. Dùin an còmhdach roinn bataraidh gu tèarainte.

Figear 3.1: Cùl view of the tachometer, highlighting the battery compartment for installation of two AA batteries.

3.2 Attaching Contact Accessories (for TA500B/TA500C models)

For contact measurements, attach the appropriate contact wheel or cone to the shaft at the top of the tachometer. Ensure it is firmly seated to prevent inaccurate readings.

4. Stiùireadh Obrachaidh

4.1 Cumhachd air / dheth

Press the red power button (O) to turn the device on. Press and hold the power button to turn it off.

4.2 Selecting Measurement Mode and Units

The TA500 series supports different measurement modes and units. Press the "UNIT" button to cycle through available units and modes (e.g., RPM, ft/m/s, m/min). The selected mode will be displayed on the LCD screen.

4.3 Non-Contact (Photoelectric) Measurement (TA500A/TA500C)

This mode uses a semiconductor laser sensor to measure rotational speed without physical contact.

1. Ensure the tachometer is in a non-contact RPM mode (indicated by a specific icon on the display, typically a target symbol).
2. Attach a reflective tape (not included, but commonly used with such devices) to the rotating object.
3. Point the laser beam from the tachometer at the reflective tape on the rotating object. The effective measurement distance is 50-500 mm.
4. Press the "TEST" button. The measurement symbol on the display will flash, and the RPM reading will appear.
5. Release the "TEST" button to stop measurement.

Figure 4.1: Detail of the semiconductor laser sensor used for non-contact RPM measurements. The effective distance for measurement is between 50mm and 500mm.

4.4 Contact Measurement (TA500B/TA500C)

This mode uses physical contact with the rotating object via an attached accessory.

1. Attach the appropriate contact accessory (e.g., cone or wheel) to the tachometer's shaft.
2. Ensure the tachometer is in a contact measurement mode (indicated by a contact icon on the display, typically a 'T' or similar).
3. Gently press the contact accessory against the center of the rotating object or surface.
4. Press the "TEST" button. The measurement symbol on the display will flash, and the RPM or linear speed reading will appear.
5. Release the "TEST" button to stop measurement.

Figure 4.2: The TASI TA500C tachometer demonstrating a contact measurement on a fan blade. The display shows the measured RPM.

Figure 4.3: A user holding the TASI TA500B tachometer, performing a contact measurement. The digital display shows a reading of 798.5 RPM.

4.5 MAX/MIN/HOLD Functions

• GAOL: Press the "HOLD" button to freeze the current reading on the display. Press it again to resume live measurement.
• MAX / MIN: During measurement, press the "MAX" button to display the maximum recorded value. Press "MAX" again to display the minimum recorded value. Press a third time to return to live measurement.

Figure 4.4: The tachometer display indicating the MAX/MIN function is active, showing the maximum recorded RPM value.

5. Cumail suas

5.1 Glanadh

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Keep the sensor lens clean for accurate non-contact measurements.

5.2 Stòradh

When not in use for extended periods, remove the batteries to prevent leakage. Store the tachometer in a cool, dry place, away from direct sunlight and extreme temperatures. The included cloth bag can be used for protection during storage and transport.

5.3 Ath-nuadhachadh bataraidh

Cuir bataraidhean ùra an àite nuair a nochdas comharra bataraidh ìosal air an taisbeanadh gus dèanamh cinnteach gum bi iad ag obair gu ceart agus gun stad.

6. A ’dèanamh trioblaid

• Chan eil an inneal a’ dol air: Thoir sùil air stàladh a’ bhataraidh agus dèan cinnteach nach eil na bataraidhean air an leigeil ma sgaoil. Cuir an àite iad ma tha sin riatanach.
• Leughaidhean mì-chruinn:
  • For non-contact measurement, ensure the reflective tape is properly applied and the laser is aimed correctly. Verify the measurement distance is within 50-500 mm.
  • For contact measurement, ensure the contact accessory is firmly attached and making proper contact with the rotating object.
  • Ensure the correct measurement mode and units are selected.
• Tha an taisbeanadh bàn no a’ priobadh: Low battery power may be the cause. Replace batteries.

7. Sònrachaidhean

8. Barantas agus Taic

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer. Keep your purchase receipt as proof of purchase.
