Ro-ràdh
This manual provides detailed instructions for the safe and effective operation of your Tolifo X-180 RGB LED Video Light. The X-180RGB is a 180W RGB COB continuous output lighting solution designed for photography and video recording, featuring a Bowens Mount, 2.4G wireless control, and smartphone application control. It offers a wide color temperature range from 2700K to 6500K, with high color rendering (CRI 97+) and television lighting consistency (TLCI 98+).
Image: The Tolifo X-180 RGB LED Video Light in use, demonstrating its lighting capabilities.
Susbaint pacaid
Dèan cinnteach gu bheil na nithean gu lèir a tha air an liostadh gu h-ìosal air an toirt a-steach don phacaid agad:
- 1 x X-180RGB Video Light Unit
- 1 x Refladair
- 1 x còmhdach dìon
- Cord cumhachd 1 x
Image: All components included in the Tolifo X-180 RGB LED Video Light package.
Prìomh fheartan
- Togail seasmhach: The Tolifo X-180RGB is built with a robust blend of aluminum alloy and high-strength engineering plastic, ensuring durability and a sleek design.
- High Output & Quality: Delivers an illuminance of up to 22,766Lx@1m (without reflector) and features five-color COB LEDs with a CRI exceeding 97 and TLCI exceeding 98.
- Versatile Color Modes:
- Modh HSI: Allows fine-tuning of color hue (0-360 degrees) and saturation (0%-100%).
- Modh CCT: Adjust color temperature from 2700K to 6500K and brightness from 0%-100%.
- 20 Scene Effects: Offers 20 pre-programmed lighting effects to create various atmospheric environments.
- Modhan smachd ioma-fhillte: Supports 2.4G wireless remote control (up to 30m range), smartphone app control via the Linklite app, and DMX512.
- Beinn Bowens: Standard Bowens Mount allows for easy attachment of various accessories like reflector umbrellas, softboxes, and reflector boards.
- Sgaoileadh teas èifeachdach: Features a built-in silent fan for effective heat management, extending the light's lifespan.
- Dealbhadh càirdeil don neach-cleachdaidh: Includes a handle and a U-shaped stand for easy light direction adjustment and portability.
Image: The flexible U-bracket for adjusting the light's angle.
Image: Illustration of the efficient heat dissipation system.
Image: Detail of the fish scale reflector for light shaping.
Stiùiridhean rèiteachaidh
- Stàladh: Attach the X-180RGB light unit to a compatible light stand using its U-shaped bracket. Secure it firmly.
- Reflector/Accessory Attachment: Align the included reflector or any Bowens Mount compatible accessory with the light's mouth. Twist clockwise until it locks into place.
- Ceangal cumhachd: Connect the power cord to the light unit's power input and then to a suitable AC power outlet (AC 100-240V).
- Còmhdach dìon: When not in use, ensure the protective cover is placed over the COB LED to prevent damage.

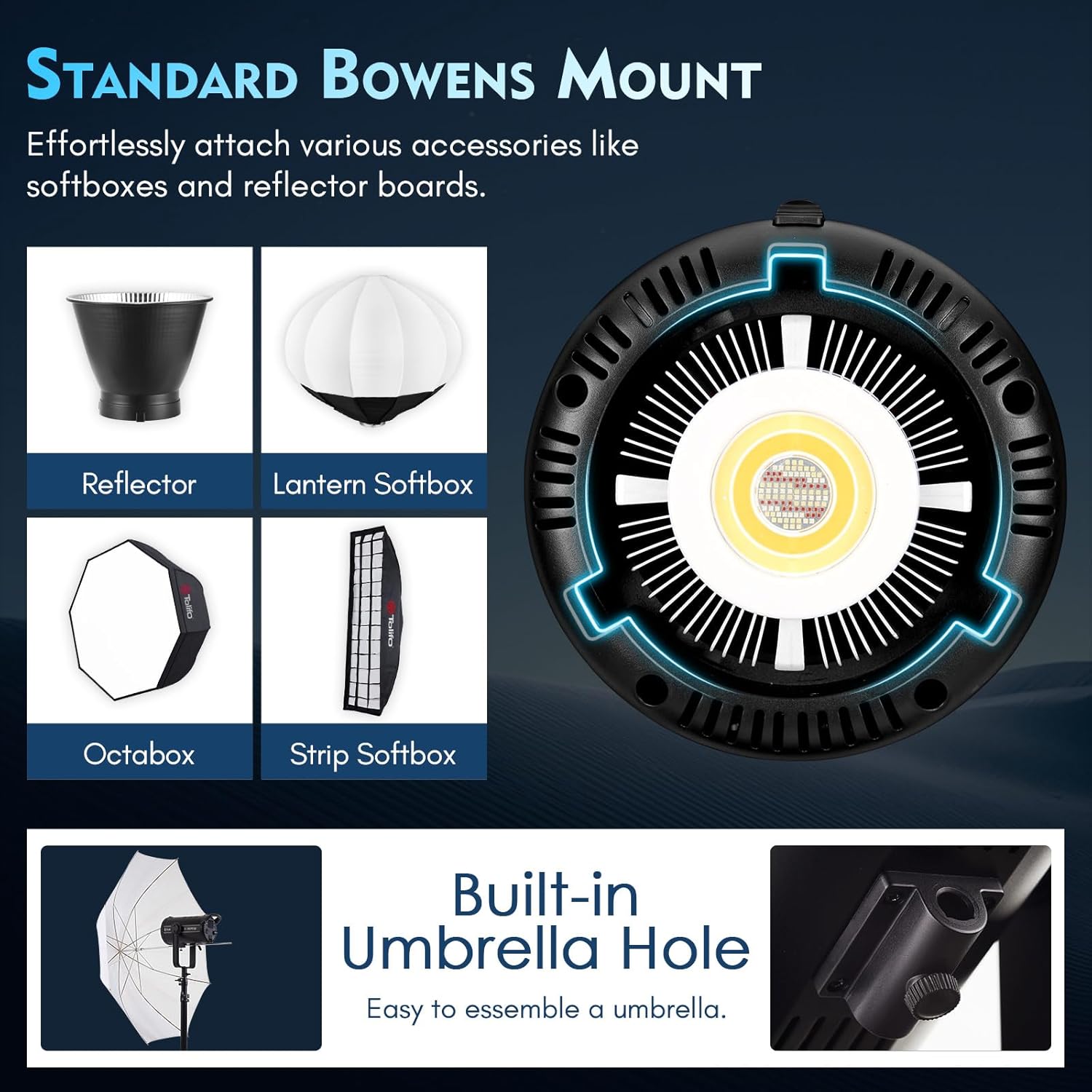

Image: The Bowens Mount for attaching various light modifiers.
Stiùireadh Obrachaidh
The Tolifo X-180RGB can be controlled via its onboard panel, 2.4G remote, or the Linklite smartphone app.
1. Onboard Control Panel
- Cumhachd air / dheth: Press the 'Power' button to turn the light on or off.
- Taghadh Modh: Use the 'CCT/HSI' button to switch between CCT (Color Temperature) mode and HSI (Hue, Saturation, Intensity) mode.
- Atharrachadh paramadair: Use the rotary knob and 'SET' button to adjust parameters such as color temperature, brightness, hue, and saturation.
- Modh FX: Press the 'FX' button to access the 20 special scene effects. Use the rotary knob to select an effect.
Image: The control panel with buttons and rotary knob for manual adjustments.
2. CCT Mode (Color Temperature)
In CCT mode, you can adjust the white light output:
- Teòthachd dath: Atharraich bho 2700K (geal blàth) gu 6500K (geal fionnar).
- Gile: Atharraich dian an t-solais bho 0% gu 100%.
Image: Visual representation of color temperature and brightness adjustments.
3. HSI Mode (Hue, Saturation, Intensity)
In HSI mode, you can access the full RGB color spectrum:
- Hue: Select any color from 0 to 360 degrees on the color wheel.
- Sàthadh: Adjust the purity or intensity of the selected color from 0% to 100%.
- dian: Control the overall brightness of the colored light.
Image: Controls for adjusting hue and saturation in HSI mode.
4. 20 Scene Effects
The light offers 20 built-in scene effects to simulate various lighting scenarios. These can be accessed via the 'FX' button on the control panel or through the app.
Ìomhaigh: Tharview of the 20 special scene effects.
5. Intelligent App Control (Linklite App)
Download the Linklite app on your smartphone or tablet to control the light remotely. The app provides comprehensive control over all lighting parameters, including CCT, HSI, and scene effects.
- Luchdaich sìos: Lorg airson 'Linklite' in the iOS App Store or Google Play Store.
- Ceangal: Follow the app's instructions to pair your device with the X-180RGB via Bluetooth.
- Smachd air astar: Adjust hue, saturation, intensity, color temperature, and activate scene effects directly from your device.
Image: The Linklite app interface for intelligent control.
6. Official Product Video: App Control Demonstration
Video: This official Tolifo video demonstrates the various control methods, including the intelligent app control, for the X-180RGB LED Video Light.
Cumail suas
- Glanadh: Use a soft, dry cloth to clean the light unit. Do not use abrasive cleaners or solvents.
- Stòradh: Store the light in a cool, dry place away from direct sunlight and moisture. Always attach the protective cover when storing.
- Fionnarachadh: Ensure the fan vents are clear of obstructions during operation to maintain proper heat dissipation.
Fuasgladh thrioblaidean
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil an solas a’ lasadh. | Power cord not connected properly; Power outlet malfunction. | Thoir sùil air ceangal a’ chàball cumhachd; Feuch socaid cumhachd eadar-dhealaichte. |
| Tha an toradh solais neo-chunbhalach no a’ priobadh. | Loose connection; Overheating; Faulty unit. | Check all connections; Ensure proper ventilation; Contact customer service if problem persists. |
| Chan eil smachd app ag obair. | Bluetooth not enabled; App not paired; Out of range. | Ensure Bluetooth is on; Re-pair the device in the app; Move closer to the light unit. |
| Light stuck on one color/setting. | Software glitch; Control panel issue. | Try restarting the light; Reset settings if available; Contact customer service. |
Sònrachaidhean
- Àireamh Modail: X-180RGB
- Toradh cumhachd: 180W
- Teòthachd dath: 2700K-6500K
- Clàr-ìnnse Dhathan (CRI): 97+
- Clàr-innse Co-sheasmhachd Solais Telebhisean (TLCI): 98+
- Soillseachadh: 22,766Lx@1m (without reflector)
- Hue Angle: 0-360 ceum
- Atharrachadh soilleireachd: 0% -100%
- Dòighean smachd: Onboard Panel, 2.4G Wireless Remote, Linklite App, DMX512
- Seòrsa Mount: Mount Bowens
- Meudan toraidh: 7.09 x 7.09 x 7.09 òirleach
- Cuideam nì: 8.23 not
- Eadar-aghaidh bathar-cruaidh: Bluetooth 2.0
Barantas agus Taic
The Tolifo X-180 RGB LED Video Light comes with a one-year warranty from the date of purchase. For any inquiries, technical assistance, or warranty claims, please contact our customer service team. Refer to your purchase documentation for specific contact details.
