1. Ro-ràdh agus Os a chionnview

This manual provides essential information for the safe and efficient operation and maintenance of your Maxima Horeca Dishwasher. Designed for professional kitchens, this powerful and fast dishwasher ensures clean dishes with minimal effort.

Prìomh fheartan:

• Professional front-loading dishwasher with robust construction.
• Two complete wash programs: 100 seconds and 190 seconds.
• Constructed entirely from stainless steel and ABS for easy cleaning.
• Quiet operation at less than 65 dB.
• Economical water consumption of only 2.8 liters per cycle.
• Includes a rinse pump.

Figear 1: Aghaidh view of the Maxima Horeca Dishwasher, showing the control panel and loading door.

2. Setup agus Stàladh

Proper installation is crucial for the dishwasher's performance and longevity. Ensure the unit is placed on a stable, level surface.

2.1 A’ dì-phapadh

Carefully remove the dishwasher from its packaging. Inspect for any damage incurred during transit. Retain packaging materials for potential future transport or service.

2.2 Ceangal uisge

Connect the supplied inlet hose to a cold water supply with appropriate pressure. Connect the drain hose to a suitable drainage system. Ensure all connections are secure to prevent leaks.

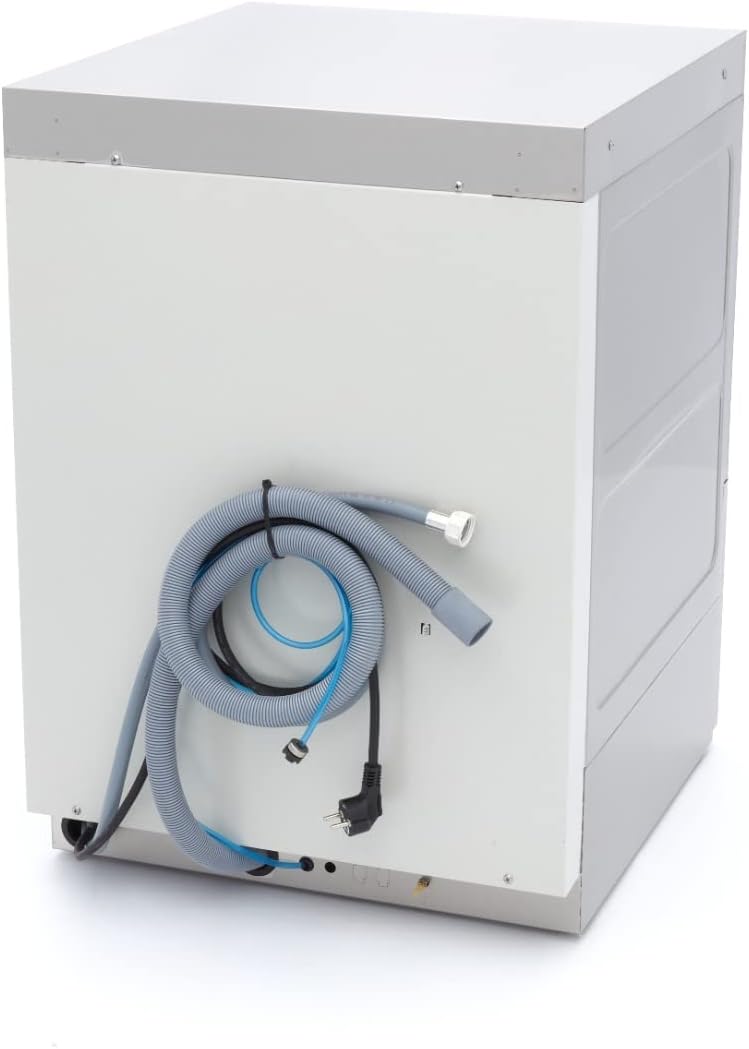

Figear 2: Cùl view of the dishwasher, illustrating the inlet and drain hose connections.

2.3 Ceangal Dealain

Connect the dishwasher to a grounded 230 V/50 Hz/1 phase electrical outlet. Ensure the electrical supply meets the dishwasher's power requirements (3560 watts).

2.4 Sgrùdaidhean Tùsail

Before first use, ensure:

• All hoses are securely connected and free from kinks.
• Tha an inneal-nigheadaireachd ìre.
• Tha an solar uisge fosgailte.

3. Stiùireadh Obrachaidh

The Maxima Horeca Dishwasher features an intuitive control panel for easy operation.

3.1 Pannal Smachd Os a chionnview

Figure 3: Close-up of the control panel, showing the power button, program selection, and indicator lights.

The control panel is IPX4-protected against water splashes and includes:

• Putan air / dheth: A 'toirt cumhachd don aonad air no dheth.
• Putan Tòisich / Stad: Initiates or pauses the wash cycle.
• Putan Taghaidh Prògram: Selects between the available wash programs.
• Solais comharra: Display the dishwasher's status, such as ready for wash or rinse program active.

3.2 A’ luchdachadh soithichean

Load dishes into the appropriate baskets. The dishwasher includes a 50 x 50 cm glass basket, a 50 x 50 cm plate basket, and a cutlery insert. Ensure dishes do not obstruct the wash arms.

Figear 4: Taobh a-staigh view of the dishwasher with the door open, showing the wash arms and space for baskets.

3.3 Selecting and Starting a Wash Program

1. Press the On/Off button to power on the dishwasher.
2. Use the Program Selection button to choose between the 100-second or 190-second wash program.
3. Brùth air a’ phutan Start/Stop gus an cearcall nighe a thòiseachadh.
4. The indicator lights will show the current status of the dishwasher.

The wash temperature is 60 °C, and the rinse temperature is 85 °C, ensuring effective cleaning and quick drying.

4. Cumail suas

Le glanadh is cumail suas cunbhalach, leudaichidh sin beatha an inneil-nigheadaireachd agad agus nì e cinnteach gum bi e cho èifeachdach 's as urrainn.

4.1 Glanadh làitheil

The dishwasher's stainless steel construction makes it easy to clean. After each use:

• Remove any food debris from the interior and filters.
• Sguab sìos na h-uachdaran a-staigh agus a-muigh le sanasamp aodach agus inneal-glanaidh tlàth.
• Ensure the wash arms are clear of obstructions. The wash arms are made of special ABS material.

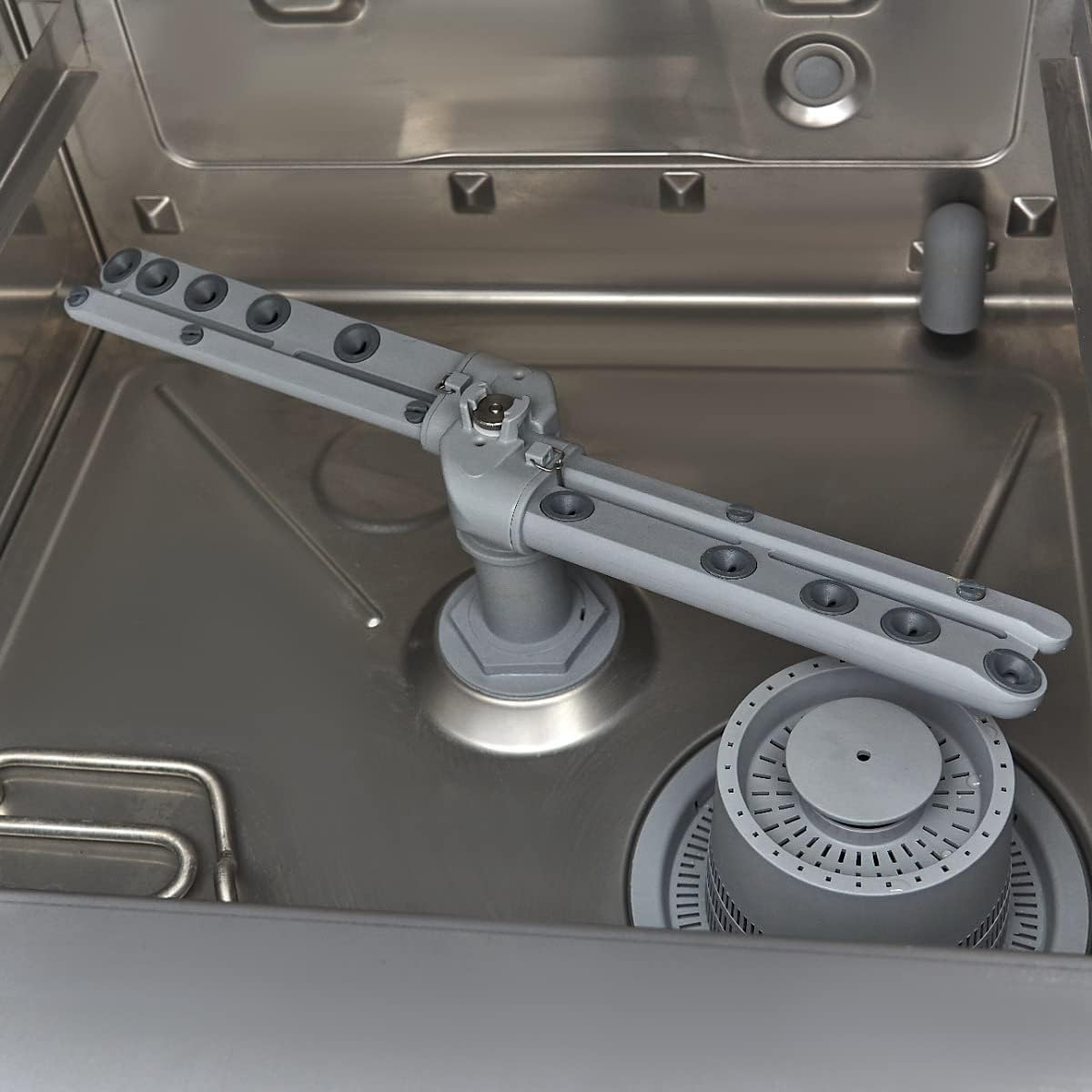

Figear 5: Taobh a-staigh view highlighting the wash arm and filter system, which should be kept clean.

4.2 Detergent Use

This dishwasher is compatible with dishwasher powder, tablets, and pods. Always follow the detergent manufacturer's instructions for dosage. Note that the dishwasher includes a rinse pump but does not have an integrated soap pump or drain pump.

4.3 A' crìonadh

Depending on water hardness, periodic descaling may be necessary. Use a commercial descaling agent suitable for dishwashers and follow its instructions carefully.

5. A ’dèanamh trioblaid

If you encounter issues with your dishwasher, consult the following common problems and solutions before contacting service.

5.1 Dishwasher Does Not Start

• Dèan cinnteach a bheil an sreang cumhachd air a phlugadh a-steach gu tèarainte.
• Ensure the On/Off button has been pressed.
• Verify that the door is fully closed and latched.
• Check the circuit breaker or fuse for the electrical supply.

5.2 Poor Washing Results

• Ensure dishes are loaded correctly and do not block wash arms.
• Check if the wash arms are clean and rotating freely.
• Verify that the correct amount of detergent is being used.
• Clean the filters to ensure proper water circulation.

5.3 Aodion Uisge

• Inspect inlet and drain hoses for secure connections and damage.
• Dèan cinnteach gu bheil an inneal-nigheadaireachd ìre.
• Check the door seal for any damage or debris.

6. Sònrachaidhean

Detailed technical specifications for the Maxima Horeca Dishwasher Model 09240040.

Figure 6: Dimensional diagram of the dishwasher, showing width, depth, and height measurements.

7. Barantas agus Taic

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts, please contact Maxima customer service or an authorized service partner.
