Prity S3W21 Wood-Fired Central Heating Stove User Manual

1. Ro-ràdh

The Prity S3W21 is a wood-fired stove designed for integration into central heating systems. This appliance features an integrated hot water boiler and an upper door for convenient access to clean the heat exchanger. Constructed with a 2 mm thick steel plate body and a 3-4 mm thick steel plate top, this model is engineered for efficient and reliable heating with solid fuels.

2. Fiosrachadh Sàbhailteachd

Read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, bodily injury, or death.

• Stàladh proifeiseanta: Installation must be performed by a qualified professional in accordance with all local and national building codes and regulations.
• Fionnarachadh: Ensure adequate ventilation for proper combustion and to prevent carbon monoxide buildup.
• Fuadaichean gu stuthan lasaichte: Maintain minimum distances from combustible materials as specified:
  • Cùl: 400 mm
  • Sides (Left and Right): 400 mm
  • Front: 800 mm (for safety information)
  • Mullach: 600mm
  • Floor: 0 mm (if non-combustible hearth is used)
• Seòrsa connaidh: Only use recommended solid fuels, primarily dry wood. Do not burn trash, plastics, or treated wood.
• Ceangal similear: Ensure the chimney system is correctly sized, installed, and regularly inspected.
• Stuthan teth: The stove surfaces become extremely hot during operation. Use protective gloves and keep children and pets away.
• Fuasgladh Ash: Dispose of ashes in a metal container with a tight-fitting lid, away from combustible materials.
• Siostam Uisge: The central heating system must be properly filled, vented, and protected against overpressure.

3. Toradh thallview

The Prity S3W21 stove is designed for efficient heating of living spaces and domestic hot water. Its robust construction ensures durability and high performance.

Figear 1: Taobh-aghaidh view of the Prity S3W21 stove, showcasing its beige and black design with multiple doors and controls.

Figear 2: Taobh a-staigh view of the combustion chamber, showing the grate and internal structure for wood burning.

Figear 3: Diagram illustrating the overall dimensions of the Prity S3W21 stove: 93 cm height, 57 cm width, and 53 cm depth.

Prìomh fheartan:

• Integrated hot water boiler for central heating.
• Upper door for easy access to clean the heat exchanger.
• Durable construction with 2 mm thick steel plate body and 3-4 mm thick steel plate top.
• Designed for high heating output.

4. Setup agus Stàladh

Proper installation is crucial for the safe and efficient operation of your Prity S3W21 stove. It is highly recommended that installation be carried out by a certified professional.

4.1 Dì-phapadh agus suidheachadh

1. Carefully unpack the stove, removing all packaging materials. Inspect for any shipping damage.
2. Place the stove on a level, non-combustible surface (e.g., concrete, tile) that can support its weight (134 kg). Ensure the floor beneath meets local building codes for load-bearing capacity.
3. Verify that the required clearances to combustible materials (as listed in Section 2) are maintained around the stove.

4.2 Ceangal simileir

The stove requires a 130 mm diameter chimney connection. Ensure the chimney system is clean, structurally sound, and properly sealed.

1. Connect the stove's flue outlet to the chimney using appropriate flue pipes and connectors.
2. Ensure all connections are airtight to prevent smoke leakage. Use high-temperature sealant if necessary.
3. The chimney must extend above the roofline according to local regulations to ensure proper draft.

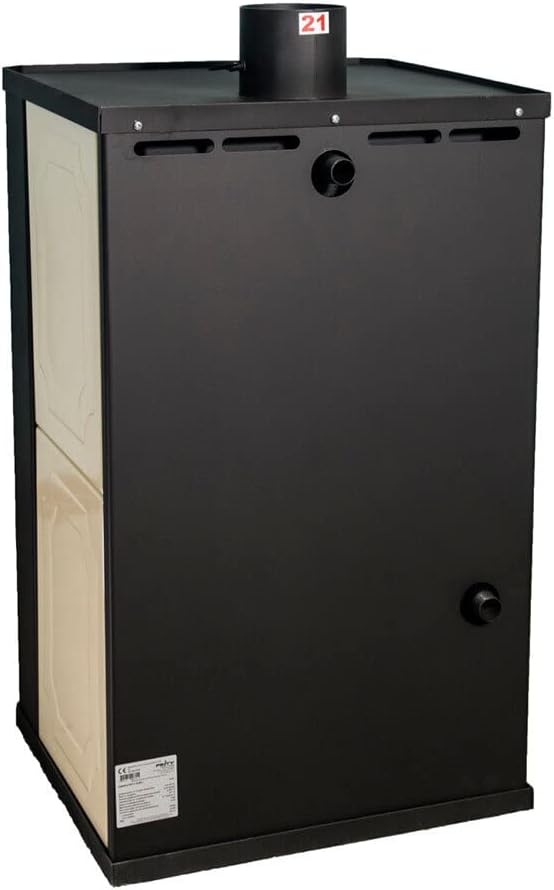

Figear 4: Cùl view of the stove, highlighting the chimney connection point and the inlets/outlets for the central heating water system.

4.3 Central Heating System Connection

The Prity S3W21 features an integrated boiler with a capacity of 29 liters. Connection to your central heating system must be performed by a qualified heating engineer.

1. Connect the boiler's flow and return pipes to your central heating system.
2. Install all necessary safety devices, including an expansion tank, pressure relief valve, and temperature gauges.
3. Fill the central heating system with water and bleed all air from the system.
4. Test the system for leaks and proper operation before initial firing.

5. Stiùireadh Obrachaidh

Follow these steps for safe and efficient operation of your wood-fired stove.

5.1 Fuel Loading

• Use only dry, seasoned wood. Moisture content should be below 20%.
• Open the combustion chamber door slowly to prevent smoke spillage.
• Place wood logs horizontally or vertically, ensuring not to overfill the chamber. Leave space for air circulation.

5.2 Aiteadh

1. Open all air inlets (primary and secondary air controls) fully.
2. Place crumpled paper or natural firelighters at the bottom of the combustion chamber.
3. Stack small pieces of kindling on top of the firelighters.
4. Light the firelighters. Once the kindling is burning well, add slightly larger pieces of wood.
5. Close the combustion chamber door once the fire is established.

5.3 Smachd Adhair

• Bun-adhair: Controls the air entering from below the grate, essential for ignition and burning solid fuels. Keep fully open during ignition, then adjust to maintain desired burn rate.
• Àrd-adhair: Controls air entering above the fuel, promoting cleaner combustion and reducing emissions. Keep open during ignition and adjust for optimal flame appearance and efficiency.
• Adjust air controls to achieve a steady, bright flame. Avoid smoldering fires, which produce more smoke and creosote.

5.4 Central Heating Operation

• Monitor the water temperature and pressure gauges on your central heating system.
• The stove's heat output to the water system will depend on the intensity of the fire. Adjust fuel loading and air controls to achieve the desired water temperature.
• Never allow the central heating system to run dry or operate without proper pressure.

6. Cumail suas

Regular maintenance ensures the longevity and efficient operation of your Prity S3W21 stove.

6.1 Toirt air falbh Ash

• Remove ashes regularly, typically daily or every few days, depending on usage.
• Ensure the stove is cool before removing ashes.
• Use a metal shovel and place ashes in a metal container with a tight-fitting lid. Store the container away from combustible materials.

6.2 Cleaning the Combustion Chamber and Heat Exchanger

• Periodically brush down the interior walls of the combustion chamber to remove soot and creosote buildup.
• Utilize the upper door for easy access to clean the heat exchanger surfaces. Remove any ash or soot deposits to maintain optimal heat transfer efficiency.

6.3 Glanadh Simileir

• The chimney and flue pipes should be inspected and cleaned at least once a year, or more frequently if heavy usage or wet wood is burned.
• Creosote buildup in the chimney is a fire hazard. Professional chimney sweeping is recommended.

6.4 Sgrùdadh Coitcheann

• Regularly check door seals for wear and tear. Replace if necessary to maintain airtightness.
• Inspect all connections to the central heating system for leaks or corrosion.
• Ensure all air controls operate smoothly.

7. A ’dèanamh trioblaid

This section addresses common issues you might encounter with your Prity S3W21 stove.

• Smoke Spillage into Room:
  Adhbharan a dh'fhaodadh a bhith ann: Poor chimney draft, blocked chimney, door opened too quickly, wet wood.
  Fuasglaidhean: Check chimney for blockages, ensure chimney is warm before loading, open door slowly, use dry wood.
• Toradh teas bochd:
  Adhbharan a dh'fhaodadh a bhith ann: Wet wood, insufficient air supply, creosote buildup in heat exchanger/chimney, undersized stove for space.
  Fuasglaidhean: Use dry wood, ensure air inlets are open, clean heat exchanger and chimney, verify stove sizing.
• Fire Difficult to Start or Maintain:
  Adhbharan a dh'fhaodadh a bhith ann: Wet wood, insufficient kindling, cold chimney, inadequate air supply.
  Fuasglaidhean: Use dry kindling and wood, pre-heat chimney with paper, ensure air inlets are fully open during ignition.
• Central Heating Water Not Heating:
  Adhbharan a dh'fhaodadh a bhith ann: Insufficient fire intensity, air in the water system, pump malfunction, closed valves.
  Fuasglaidhean: Increase fire intensity, bleed air from the system, check pump operation, ensure all valves are open.
• Cus cruinneachadh creosòte:
  Adhbharan a dh'fhaodadh a bhith ann: Burning wet wood, restricted air supply, low burning temperatures.
  Fuasglaidhean: Burn only dry wood, ensure adequate air for hot, clean burn, clean chimney and flue pipes regularly.

8. Sònrachaidhean

Detailed technical specifications for the Prity S3W21 wood-fired central heating stove.

Figear 5: Energy label for the Prity S3W21, indicating an A-class energy efficiency rating and heat outputs.

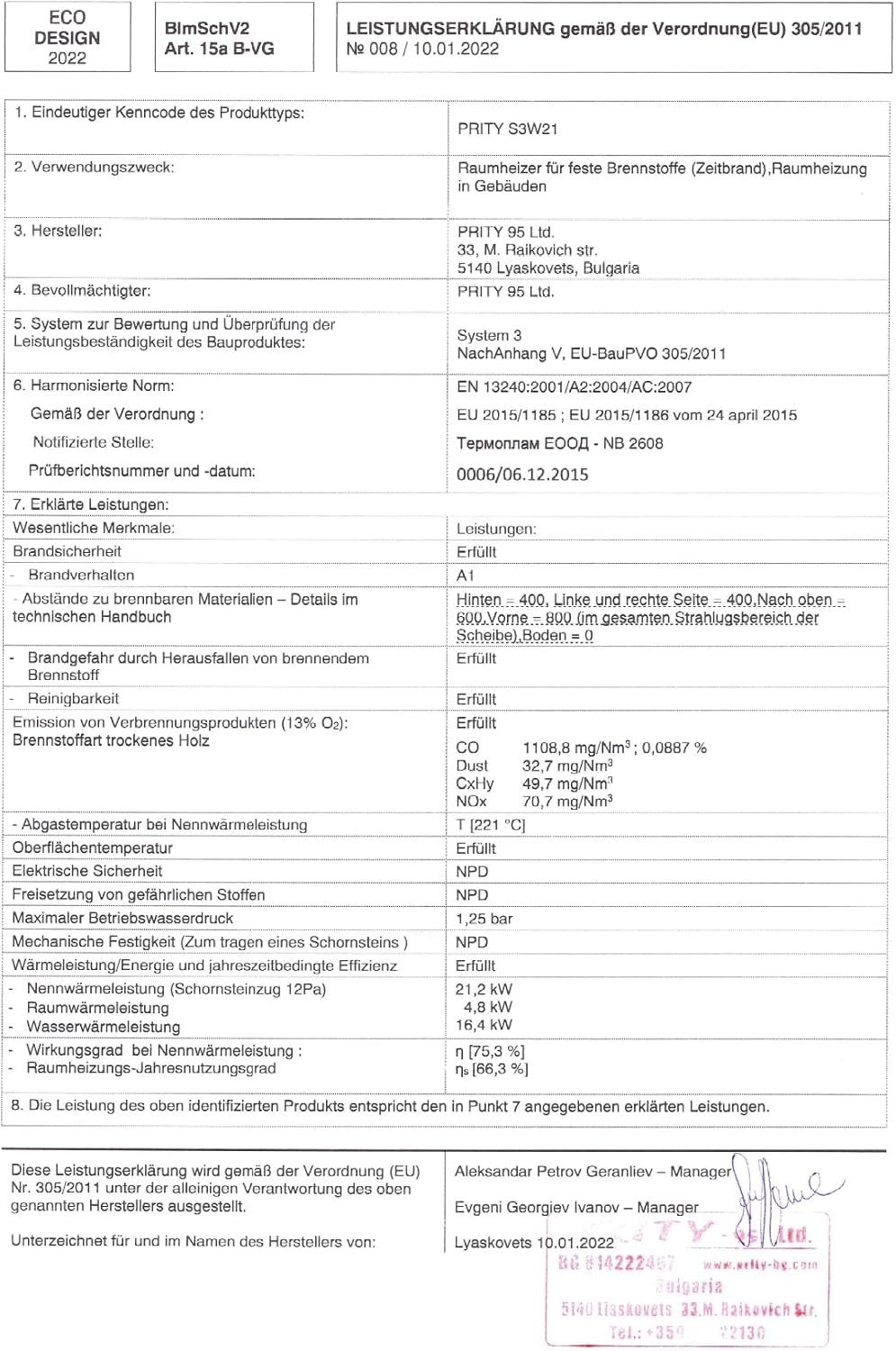

Figear 6: Declaration of Performance for the Prity S3W21, detailing essential characteristics and performance metrics.
