1. Ro-ràdh
Thank you for choosing the KoolMore BC-2DSL-BK Commercial Refrigerator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.
2. Fiosrachadh Sàbhailteachd
RABHADH: Gus cunnart teine, clisgeadh dealain no leòn a lùghdachadh, lean na ceumannan bunaiteach seo:
- Leugh a h-uile stiùireadh mus cleachd thu an inneal.
- Feumaidh an inneal seo a bhith air a chuir a-steach gu ceart agus air a shuidheachadh a rèir an Stiùireadh stàlaidh mus tèid a chleachdadh.
- Do not allow children to climb, stand, or hang on the shelves of the refrigerator. They could damage the appliance and seriously injure themselves.
- Na stòraich no na cleachd gasoline no bhalbhaichean lasanta agus lioftaichean faisg air an inneal seo no inneal sam bith eile.
- Dèan cinnteach gu bheil an inneal ceangailte ri socaid dealain le talamh ceart.
- Anns an toradh seo tha ceimigean a tha aithnichte do Stàit California a dh’ adhbhraicheas aillse agus lochdan breith no cron gintinn eile.
- The unit is ETL Listed for Safety and Sanitation and NSF compliant to ANSI 7 Standard for commercial refrigerators.
3. Pasgan-susbaint
Dèan cinnteach gu bheil a h-uile nì anns a’ phacaid:
- KoolMore BC-2DSL-BK Commercial Refrigerator Unit
- 4 Sgeilpichean
- Shelves Clips
- 2 Leveling Feet (additional to pre-installed)
- Leabhar-làimhe stiùiridh
4. Suidhich
4.1 Suidheachadh
Place the refrigerator on a flat, stable surface. Ensure adequate ventilation around the unit. The exterior dimensions are approximately 35.4"L x 20.5"W x 35.4"H. Allow sufficient space for air circulation around the back and sides of the unit.
Figear 1: Aghaidh view of the KoolMore BC-2DSL-BK Commercial Refrigerator with key dimensions.
4.2 Ìreachadh
The unit is equipped with adjustable feet for height flexibility. Use these to ensure the refrigerator is perfectly level, which is crucial for proper door operation and cooling efficiency.

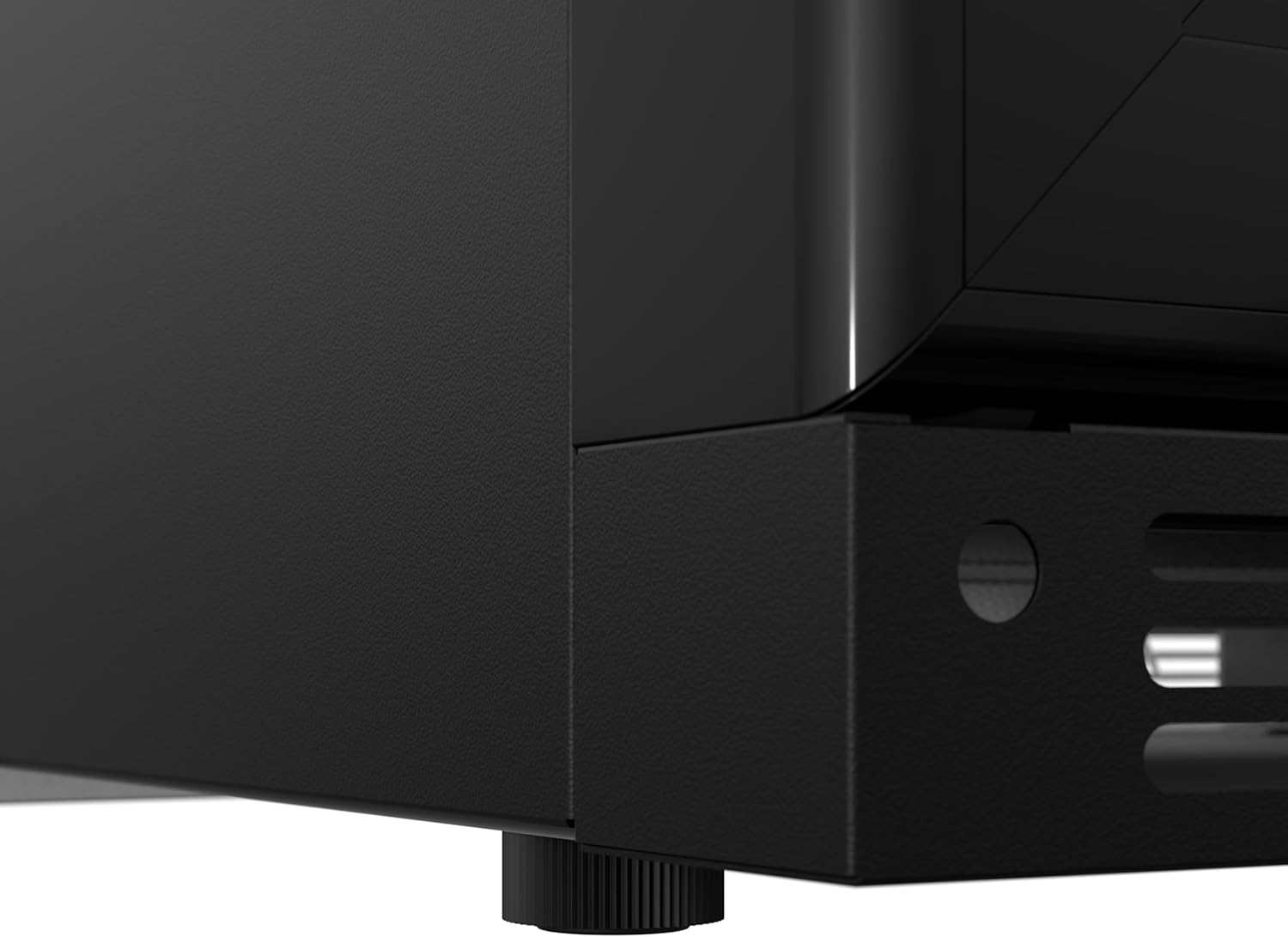

Figure 2: Adjustable leveling feet for stability.
4.3 Stàladh sgeilp
Install the four adjustable wire shelves using the provided shelf clips. Position them according to your storage needs. The shelves are removable for cleaning or to accommodate larger items.

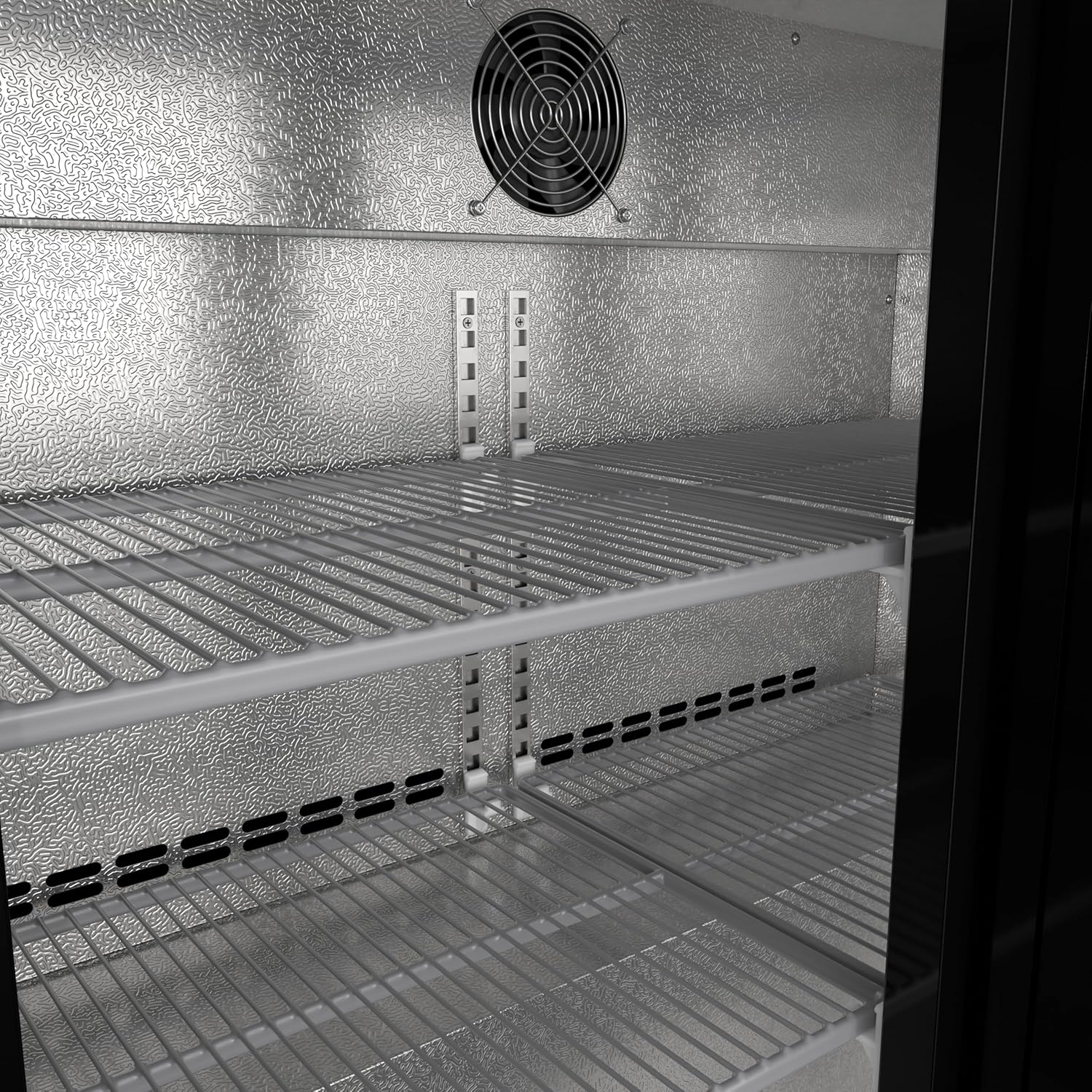

Figure 3: Interior of the refrigerator with adjustable shelves.
4.4 Ceangal cumhachd
Connect the refrigerator to a dedicated 115 Volt, Type A - 2 pin (North American) grounded electrical outlet. Avoid using extension cords. Allow the unit to stand upright for at least 2 hours before plugging it in to allow refrigerants to settle.
Figear 4: Cùl view of the unit, showing the power cord connection area.
5. Stiùireadh Obrachaidh
5.1 Smachd Teòthachd Didseatach
The refrigerator features an external digital temperature display and controls. The temperature range is 35-46 Fahrenheit (approximately 1.7-7.8 Celsius). Use the 'SET' button and arrow keys to adjust the desired temperature.
Figure 5: Digital temperature display and control panel.
5.2 Solas LED
The unit includes LED lighting with an independent switch to illuminate the interior. This enhances product visibility. The switch is typically located near the control panel or inside the unit.
Figure 6: Interior LED lighting for product display.
5.3 Sliding Doors and Locks
The refrigerator is equipped with double sliding glass doors for easy access and space efficiency. Each door has a lock to secure contents when the unit is not in use.

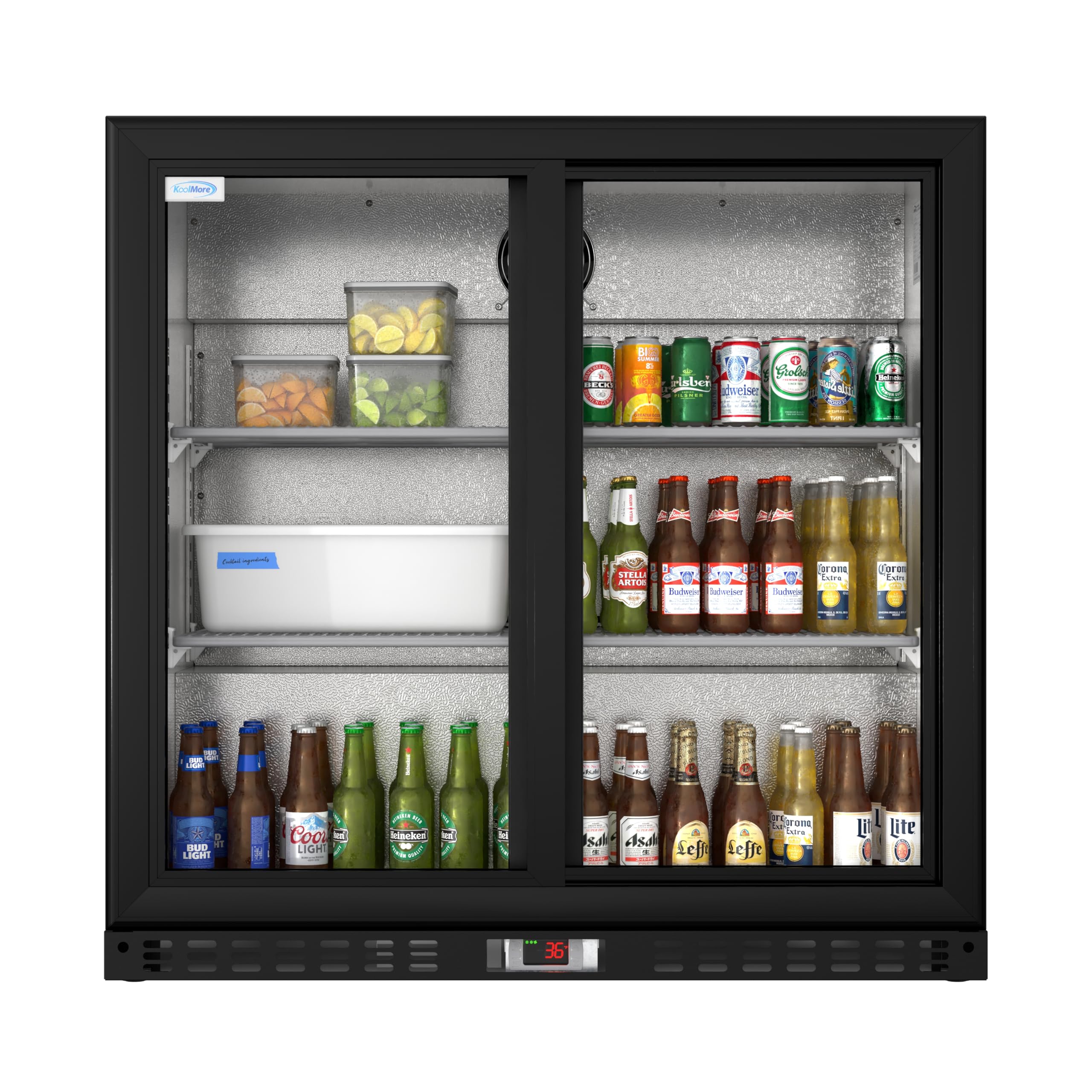

Figure 7: Double sliding glass doors.
5.4 Gnìomh Dì-reothadh Fèin-ghluasadach
This cooler features an Auto Defrost Function sensor that detects the temperature and automatically switches into auto defrost mode when the temperature reaches freezing point. This prevents ice build-up inside the refrigerator that can cause drinks to freeze.
Bhidio 1: Tharview of the KoolMore Double Door Back Bar Cooler, highlighting features like auto defrost and LED lighting.
6. Cumail suas
6.1 Glanadh
Regular cleaning is essential for optimal performance and hygiene. Disconnect the power before cleaning. Clean the interior and exterior surfaces with a mild detergent and warm water. The unit has a self-evaporating water pan, which reduces the need for manual draining.
6.2 A’ dì-ghalarachadh
The refrigerator is equipped with an automatic defrost system. Manual defrosting is generally not required. If excessive ice build-up occurs, ensure the doors are sealing properly and the ambient temperature is within operating limits.
7. A ’dèanamh trioblaid
If you experience issues with your refrigerator, consult the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil reòthadair ag obair | No power to the unit; power cord unplugged; circuit breaker tripped. | Thoir sùil air a’ cheangal cumhachd; dèan cinnteach gu bheil an socaid ag obair; ath-shuidhich am briseadair cuairte. |
| Unit is not cooling sufficiently | Temperature setting too high; door not closed properly; excessive door openings; unit overloaded; poor ventilation. | Adjust temperature setting; ensure doors seal tightly; reduce frequency of door openings; do not overload; ensure adequate space around unit for ventilation. |
| Fuaim cus | Aonad gun a bhith rèidh; pàirtean sgaoilte; bacadh air an neach-leantainn. | Adjust leveling feet; check for loose components and tighten if necessary; ensure fan is clear of obstructions. Note: Some operational noise from the compressor and fans is normal. |
| Uisge air an làr | Drain pan overflowing; drain hose clogged. | Check and clear drain hose if necessary. Ensure unit is level. |
8. Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Ainm Modail | BC-2DSL-BK |
| Meudan toraidh (D x W x H) | 20.5" x 35.4" x 35.4" |
| Comas | 7.4 troighean ciùbach |
| Dath | Dubh |
| Àireamh nan dorsan | 2 (Sliding Glass Doors) |
| Siostam dì-losgadh | fèin-ghluasadach |
| Voltage | 115 Volt |
| Reothadair | R-290 no R-600A |
| Seòrsa stàlaidh | Saorsa |
| Feartan sònraichte | Adjustable Shelves, Automatic Defrost, Digital Controller, Lockable, Quiet |
| Teisteanasan | ETL Listed, NSF compliant to ANSI 7 Standard |
9. Barantas agus Taic
9.1 Fiosrachadh Barantais
This KoolMore refrigerator comes with a Pàirtean 1 bliadhna agus barantas Làbarach. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact KoolMore customer service.
9.2 Taic teachdaiche
For technical assistance, parts, or service inquiries, please contact KoolMore customer support. Contact information can typically be found on the manufacturer's weblàrach no air pacaigeadh an toraidh.
