This manual provides detailed instructions for the installation, operation, and maintenance of your Paulmann 94533 Plug & Shine Flarea LED Outdoor Light. Please read these instructions carefully before use and retain them for future reference.
The 200 mm high Plug & Shine Flarea bollard light is designed to provide glare-free light accents, serve as orientation, and illuminate paths with a pleasant warm white light. Its IP65 protection ensures resistance against jet water, making it suitable for various outdoor applications.
Image: Paulmann 94533 Plug & Shine Flarea LED Outdoor Light, 200mm height, black metal finish.
Fiosrachadh Sàbhailteachd
- Dèan cinnteach gu bheil an solar cumhachd air a dhì-cheangal mus tèid a stàladh no a chumail suas.
- This product operates on a 24V DC low-voltage system for maximum safety.
- The luminaire is rated IP65, providing protection against jet water.
- Installation should be performed according to local electrical codes and regulations.
- Do not attempt to modify the product in any way not described in this manual.
Susbaint pacaid
Dèan cinnteach gu bheil na pàirtean uile an làthair mus tòisich an stàladh:
- 1x Paulmann 94533 Flarea LED Bollard Light (with integrated LED module)
- Mounting spike
- Leabhar-stiùiridh (an sgrìobhainn seo)
- Note: Additional Plug & Shine system components like cables and transformers are sold separately.

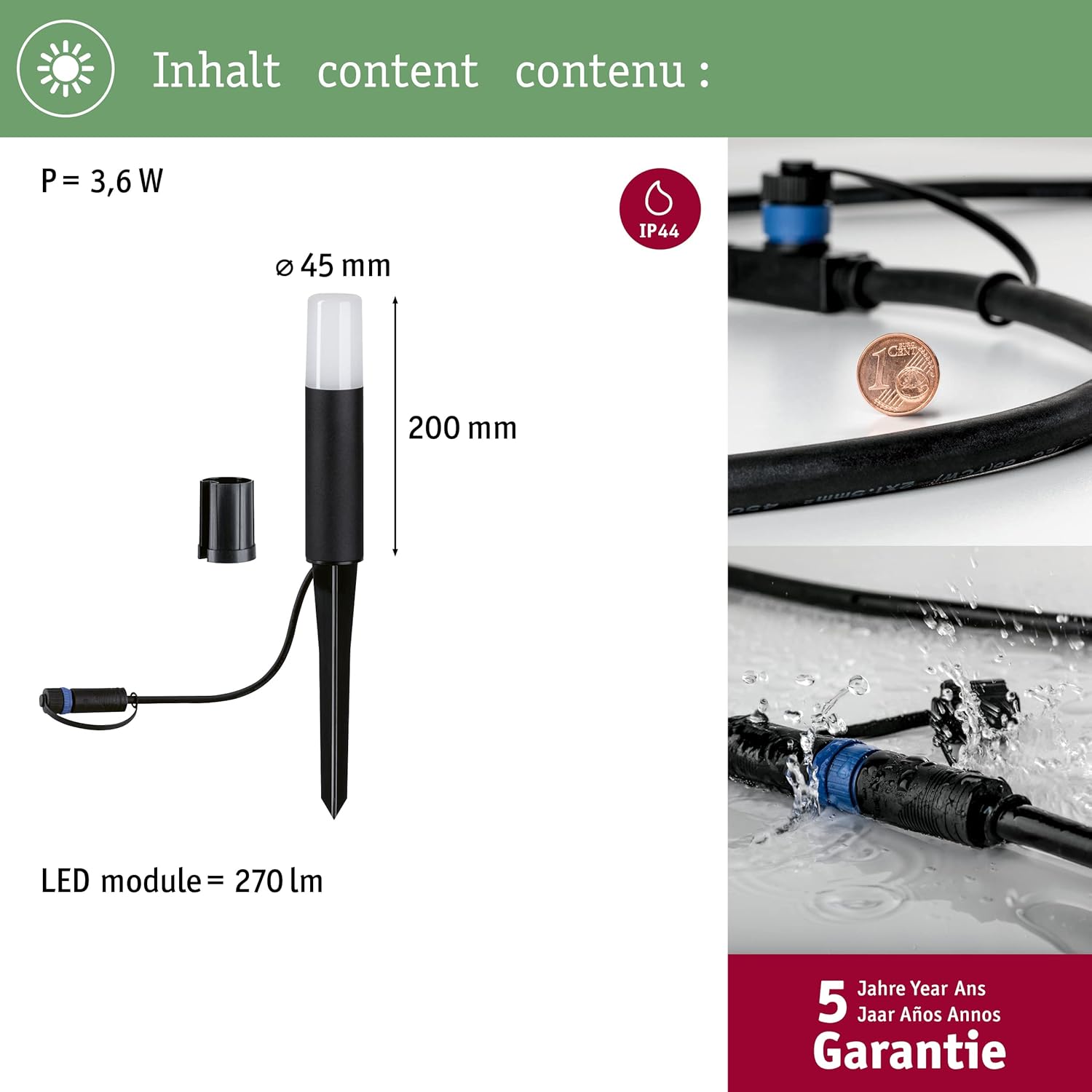

Image: Product dimensions (45mm diameter, 200mm height), 3.6W power, 270lm LED module. Note: While the image indicates IP44, the product specifications confirm an IP65 rating for this model.
Stàladh agus stàladh
The Paulmann Plug & Shine system is designed for easy, safe, and DIY installation without specialized knowledge.
1. Siostam thairisview
The Plug & Shine system consists of a transformer, connection cables, and luminaires. This Flarea bollard light is a luminaire component.
Image: Diagram illustrating the modular Plug & Shine system with transformer, cables (1in-2out, 1in-3out, 1in-7out), and various light fixtures.
2. Suidheachadh an t-Solais
- Choose a location in your garden or pathway where you want to provide illumination.
- Ensure the location allows for proper cable routing from your Plug & Shine main cable.
- The light is designed for ground installation using its integrated spike.
Image: Close-up of the light's spike being inserted into the ground next to a paved area, showing discreet cable routing.
3. Connecting to the Plug & Shine System
- Locate an available connector on your Plug & Shine main cable.
- Align the connector from the Flarea light with the connector on the main cable.
- Push the connectors together firmly until they click into place.
- Ensure the connection is secure and the waterproof seal is engaged.
Image: Close-up of the waterproof Plug & Shine cable connection, demonstrating its robust design and a Euro cent coin for scale, highlighting the compact size of the cable.
The Plug & Shine system is designed for ease of use: Plug the light into the cable, Deàrrsadh by connecting the cable to the transformer, and you're ready!
Image: Visual guide for the Plug & Shine system: 1. Select light, 2. Assemble cable, 3. Choose transformer. Indicates "Easy! Safe! Do it yourself!"
Stiùireadh Obrachaidh
Cumhachd air / dheth
Once connected to a Plug & Shine transformer and power source, the light will illuminate. The system can be controlled via a Plug & Shine controller (sold separately) or by connecting/disconnecting the transformer from the main power supply.
Gnìomh Dimming
This Flarea light is dimmable. If you have a compatible Plug & Shine controller (e.g., Zigbee-enabled), you can adjust the brightness of the light according to your preference. Refer to your controller's manual for specific dimming instructions.
Feartan aotrom
- Teòthachd dath: 3000 Kelvin (Warm White)
- Luminous Flux: 270 lumens
- Provides a pleasant, non-glaring illumination suitable for pathways and garden accents.
Image: A garden path and surrounding landscape beautifully illuminated by multiple Paulmann Plug & Shine warm white lights, creating an inviting atmosphere.
Cumail suas
Glanadh
- Ensure the light is disconnected from power before cleaning.
- Sguab an luminaire le bog, damp aodach. Na cleachd luchd-glanaidh sgudail no solventan.
- The IP65 rating protects against water jets, but avoid directing high-pressure water directly at the light for extended periods.
Ath-nuadhachadh modal LED
The integrated LED module is designed to be replaceable by the end-user without damaging the luminaire. Contact Paulmann customer support or an authorized dealer for replacement modules.
Resistance Àrainneachdail
The Flarea light is made from durable metal and is resistant to chlorinated water, making it suitable for areas near swimming pools.
Image: Outdoor setting with lights around a swimming pool, highlighting the product's resistance to chlorinated water and high-quality material construction.
Fuasgladh thrioblaidean
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Cha bhith solas a ’tionndadh. | Chan eil cumhachd aig an inneal-atharrachaidh. Loose connection in the Plug & Shine system. Modúl LED lochtach. | Check power outlet and transformer. Ensure all Plug & Shine connectors are firmly seated. Replace the LED module if necessary. |
| Tha an solas a’ priobadh no tha e lag. | Insufficient power from the transformer (too many lights). Ceangal sgaoilte. Modúl LED lochtach. | Check transformer wattage comas. Verify all connections. Cuir an àite am modal LED. |
| Chan eil an dorchachadh ag obair. | Incompatible controller. Controller not properly paired. | Ensure you are using a compatible Plug & Shine dimmable controller. Refer to your controller's manual for pairing instructions. |
If you continue to experience issues, please contact Paulmann customer support.
Sònrachaidhean
| Feart | Mion-fhiosrachadh |
|---|---|
| Modail Àireamh | 94533 |
| Brand | Pòlman |
| Meudan toraidh (L x W x H) | 4.5 x 4.5 x 20 cm (45L x 45l x 200H millimeters) |
| Cuideam | 277 gram |
| Dath | Dubh |
| Stuth | Meatailt |
| Stoidhle | Flarea |
| Seòrsa Stòr Solais | LED |
| Àireamh nam bulbaichean | 1 (aonaichte) |
| Dètage | 3.6 watt |
| Luminous Flux | 270 lumens |
| Teòthachd dath | 3000 Kelvin (Warm White) |
| Voltage | 24 bholt (DC) |
| Dimmable | Tha |
| Modh smachd | Touch (via compatible controller) |
| Pròtacal ceangail | Zigbee (with compatible controller) |
| Rangachadh IP | IP65 (Jet water protected) |
| Clas dìon | III |
| Clas Èifeachdas Cumhachd | G |
| Seòrsa stàlaidh | Ground spike / Wall mount (as part of Plug & Shine system) |
| Cleachdadh | A-muigh |
Barantas agus Taic
Fiosrachadh Barantais
This Paulmann Plug & Shine Flarea LED Outdoor Light comes with a Barantas 5-bliadhna. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use.
Taic Luchd-cleachdaidh
For technical assistance, troubleshooting, or warranty inquiries, please visit the official Paulmann weblàrach-lìn no cuir fios chun roinn seirbheis teachdaiche aca.
- Pòlman Weblàrach: www.paulmann.com
- Thoir iomradh air an weblàrach-lìn airson fiosrachadh conaltraidh roinneil.
