1. Ro-ràdh
The Vasco E-Volve E-V Control Unit is designed to provide precise and efficient temperature regulation for your heating element. This unit allows users to manage their heating system effectively, ensuring comfort and energy savings. Please read this manual thoroughly before installation and operation to ensure safe and correct usage.

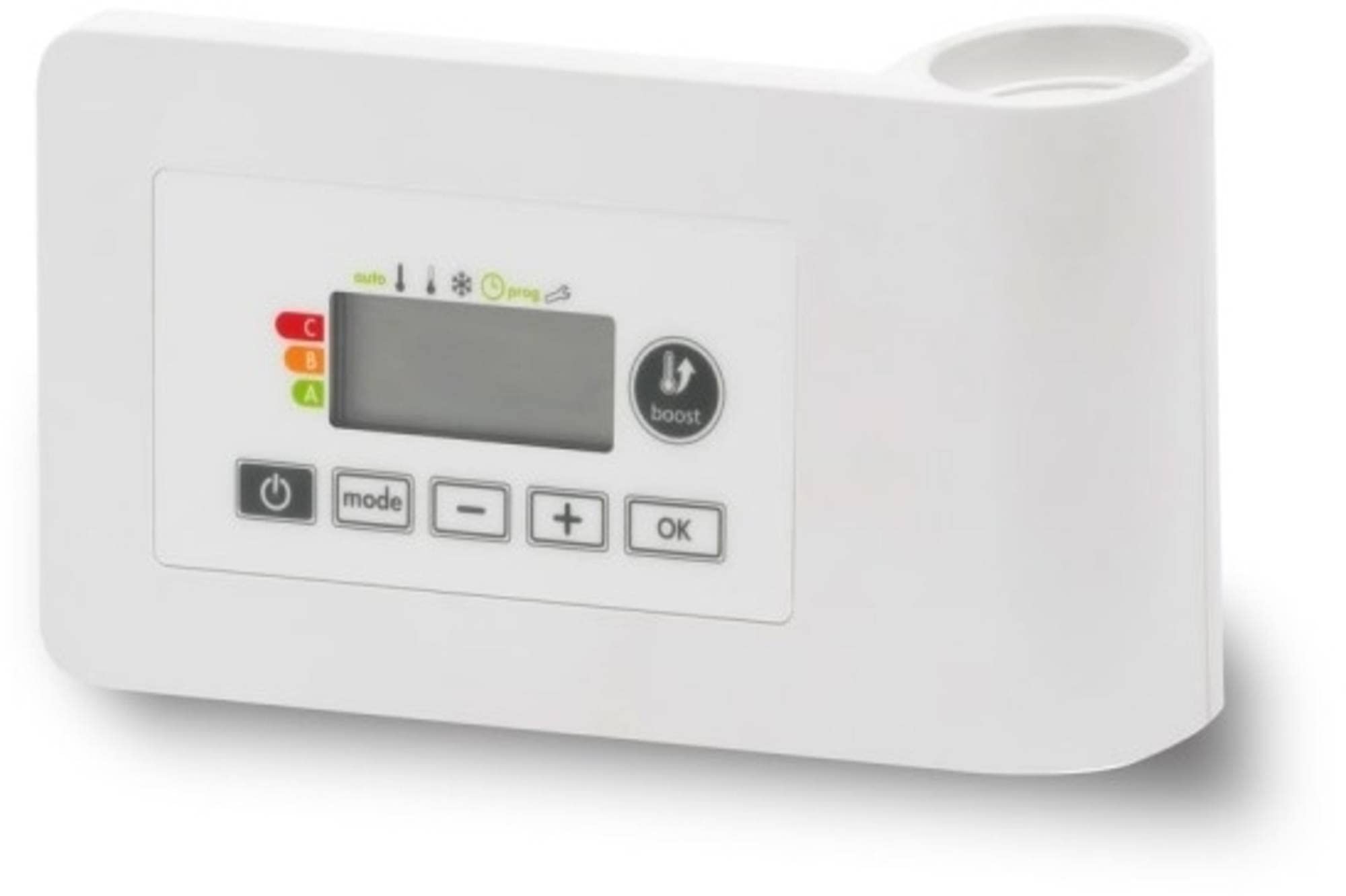

Image of the Vasco E-Volve E-V control unit, showing its front panel and display. This unit is designed for integration with a heating element.
2. Fiosrachadh Sàbhailteachd
Cùm na ceumannan sàbhailteachd a leanas an-còmhnaidh gus casg a chur air dochann no milleadh air an inneal:
- Dèan cinnteach gu bheil an solar cumhachd air a dhì-cheangal mus dèanar stàladh, cumail suas no glanadh sam bith.
- Feumaidh dealanach teisteanasach an stàladh a dhèanamh a rèir chòdan is riaghailtean dealain ionadail.
- Do not expose the control unit to water or excessive moisture.
- Na feuch ri an aonad fhosgladh no a chàradh thu fhèin. Thoir aire do luchd-obrach teisteanasach airson a h-uile seirbheis.
- Cùm stuthan pacaidh a-mach à ruigsinneachd chloinne.
3. Pasgan-susbaint
Dèan cinnteach gu bheil a h-uile nì anns a’ phacaid:
- Vasco E-Volve E-V Control Unit
- Bathar-cruaidh stàlaidh (sgriuban, plugaichean balla)
- Leabhar-làimhe cleachdaiche (an sgrìobhainn seo)
If any items are missing or damaged, please contact your retailer or Vasco customer support.
4. Setup agus Stàladh
Follow these steps for proper installation of your Vasco E-Volve E-V Control Unit:
- Tagh Àite: Select a suitable location for the control unit, away from direct heat sources, drafts, or direct sunlight, to ensure accurate temperature readings.
- Cumhachd dì-cheangail: Before beginning any electrical work, ensure the main power supply to the heating element circuit is switched off at the fuse box or circuit breaker.
- Stàladh: Use the provided mounting hardware to securely attach the control unit to the wall. Ensure it is level and firmly fixed.
- Uèir: Connect the control unit to the heating element and power supply according to the wiring diagram provided with your specific heating element and local electrical regulations. This step requires a qualified electrician.
- Cumhachd air: Once all connections are secure and verified, restore power to the circuit. The unit should power on and display initial settings.
5. Stiùireadh Obrachaidh
The Vasco E-Volve E-V Control Unit offers intuitive operation for managing your heating element.
5.1. Gnìomhan Bunaiteach
- Cumhachd air / dheth: Brùth am putan cumhachd gus an aonad a thionndadh air no dheth.
- Atharrachadh teòthachd: Use the '+' and '-' buttons to increase or decrease the desired temperature. The display will show the set temperature.
- Taghadh Modh: If available, press the 'Mode' button to cycle through different operating modes (e.g., Comfort, Eco, Frost Protection). Refer to the on-screen icons for current mode indication.
5.2. Taisbeanaidhean Taisbeanaidh
The unit's display provides important information:
- Teòthachd làithreach: Shows the ambient temperature detected by the unit.
- Suidhich Teòthachd: Indicates the desired temperature you have selected.
- Comharra teasachaidh: An icon (e.g., flame symbol) illuminates when the heating element is active.
- Comharra modh: Icons or text indicating the currently selected operating mode.
6. Cumail suas
Proper maintenance ensures the longevity and optimal performance of your control unit.
- Glanadh: Gently wipe the unit's surface with a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical sprays, as these can damage the casing no co-phàirtean dealanach.
- Chan eil feum air bataraidhean: This unit does not require batteries for operation.
- Sgrùdadh: Periodically check the unit and its connections for any signs of wear or damage. If any issues are observed, contact a qualified technician.
7. A ’dèanamh trioblaid
If you encounter issues with your Vasco E-Volve E-V Control Unit, refer to the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil cumhachd aig an aonad. | No power supply; loose wiring. | Check the circuit breaker. Ensure all wiring connections are secure. Consult a qualified electrician. |
| Heating element not responding to unit. | Incorrect wiring; unit in incorrect mode; heating element fault. | Verify wiring connections. Check the operating mode. Test the heating element independently if possible. |
| Leughadh teòthachd ceàrr. | Unit placed near heat source/draft; sensor obstruction. | Relocate the unit if possible. Ensure no objects are blocking the sensor. |
| Tha an taisbeanadh bàn no a’ priobadh. | Power fluctuation; internal fault. | Cycle power to the unit. If the problem persists, contact support. |
If the problem persists after attempting these solutions, please contact Vasco customer support or a qualified technician.
8. Sònrachaidhean
- Modail: E-Volve E-V
- Bataraidhean a dhìth: Chan eil
- ASIN: B09C46RCD3
- Iomradh neach-dèanamh: SW160340
- A’ chiad cheann-latha ri fhaighinn: 6 an Cèitean, 2021
9. Barantas agus Taic
The Vasco E-Volve E-V Control Unit is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Vasco weblàrach-lìn airson teirmichean is cumhaichean barantais mionaideach.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact your retailer or Vasco customer support. Have your product model and purchase date ready when contacting support.
