ONE Light 10105TR/W Trimless GU10 50W Recessed Spotlight User Manual

1. Ro-ràdh

Thank you for choosing the ONE Light 10105TR/W Trimless GU10 50W Recessed Spotlight. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference. This product complies with EN60598-1 and other specific standards.

2. Stiùireadh Sàbhailteachd

• Always disconnect the power supply at the main circuit breaker before installation, maintenance, or bulb replacement.
• Bu chòir do dhealanair teisteanasach an stàladh a dhèanamh a rèir a h-uile còd is riaghailt dealain ionadail.
• Tha an toradh seo air a dhealbhadh airson cleachdadh a-staigh a-mhàin. Do not install in wet or damp àiteachan.
• Ensure the ceiling material can support the weight of the fixture.
• Na bi nas àirde na an wat as àirdetage of 50W for the GU10 bulb.
• Avoid touching the bulb directly with bare hands, as oils can reduce bulb life.
• Cùm stuthan lasanta air falbh bhon inneal solais.

3. Pasgan-susbaint

Dèan cinnteach gu bheil na pàirtean uile an làthair mus tòisich an stàladh:

• 1x Recessed Spotlight Housing (White Aluminum)
• Bathar-cruaidh stàladh
• Corda dealain
• Pad adhesive

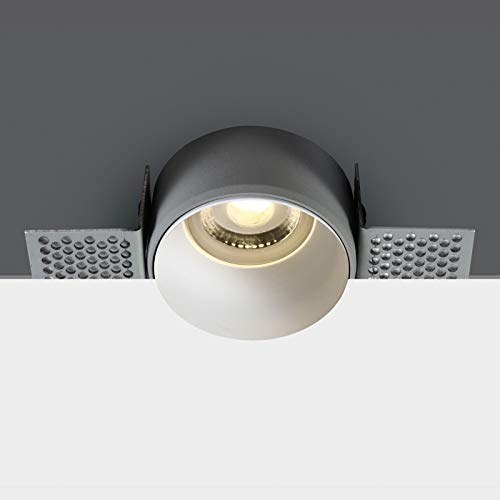

Image 1: Components of the ONE Light Trimless Recessed Spotlight, showing the mounting bracket and the light housing.

4. Setup agus Stàladh

This trimless recessed spotlight requires careful installation to achieve a seamless finish. Professional installation is recommended.

4.1 Dimensions and Preparation

Before cutting, ensure the chosen location avoids joists, pipes, or electrical wires. Refer to the dimensional diagram for precise cutout requirements.

Image 2: Dimensional diagram of the ONE Light Trimless Recessed Spotlight, indicating a 60mm diameter and 40mm height.

4.2 Ceumannan stàlaidh

1. Cuir dheth an cumhachd: Dèan cinnteach gu bheil am prìomh sholar cumhachd don àite stàlaidh air a chuir dheth aig a’ bhriseadair cuairte.
2. Ullaich Fosgladh na Mullaich: Using the provided dimensions (60mm diameter), cut a precise hole in the ceiling. For trimless installation, additional plastering work around the fixture may be required after mounting the housing.
3. Ceanglaichean uèir: Connect the electrical cord from the spotlight housing to your main electrical wiring. Ensure all connections are secure and insulated according to local electrical codes.
4. Taigheadas Mount: Insert the spotlight housing into the ceiling opening. Use the provided mounting hardware to secure the housing firmly in place. For a trimless finish, the housing should be flush with the ceiling surface, ready for plastering.
5. Install GU10 Bulb: Once the housing is securely installed and any finishing work is complete, insert a GU10 bulb (max 50W) into the lamp holder. Twist to lock it in place.
6. Co-chruinneachadh Deireannach: Insert the inner light component into the outer housing.
7. Thoir air ais cumhachd: Cho luath ‘s a bhios an stàladh deiseil agus na ceanglaichean uile tèarainte, ath-thòisich an cumhachd aig a’ bhriseadair cuairte.

5. Stiùireadh Obrachaidh

The ONE Light 10105TR/W spotlight operates via a standard wall switch connected to its electrical circuit. This fixture is gun lasachadh.

5.1 Ath-chur Bulb

Gus am bulb GU10 a chur na àite:

1. Cuir dheth an cumhachd: Always disconnect power at the circuit breaker before replacing the bulb.
2. Leig le fuarachadh: Let the old bulb cool down completely before touching it.
3. Remove Bulb: Gently push the bulb upwards and twist it counter-clockwise to release it from the GU10 base.
4. Cuir a-steach am bulb ùr: Align the pins of the new GU10 bulb with the slots in the lamp holder. Push upwards and twist clockwise to secure it. Ensure the new bulb is a GU10 type and does not exceed 50W.
5. Thoir air ais cumhachd: Thoir air ais cumhachd aig an inneal-brisidh.

6. Cumail suas

The ONE Light 10105TR/W spotlight requires minimal maintenance.

• Glanadh: Ensure the power is off and the fixture is cool. Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Gun phàirtean le seirbheis cleachdaiche: Other than bulb replacement, there are no user-serviceable parts inside the fixture. Do not attempt to disassemble the unit.

7. A ’dèanamh trioblaid

If you encounter issues with your spotlight, refer to the following common problems and solutions:

• Chan eil an solas a’ tionndadh air:
  • Check if the power supply to the fixture is on at the circuit breaker and wall switch.
  • Ensure the GU10 bulb is correctly installed and not faulty. Try replacing it with a known working bulb.
  • Verify electrical connections are secure (consult a qualified electrician if unsure).
• Crioban Solais:
  • Ensure the GU10 bulb is fully seated and twisted into the base.
  • The bulb may be faulty or nearing the end of its life. Replace the bulb.
  • Check for loose wiring connections (consult a qualified electrician).

8. Sònrachaidhean

Image 3: EU Energy Label for the luminaire, indicating compatibility with bulbs of various energy classes from A++ to E.

9. Barantas agus Taic

This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the point of purchase or contact your retailer. For technical support or inquiries, please reach out to your seller or the ONE Light customer service department.
