Braun Series 7 70-N1000 Electric Shaver

1. Ro-ràdh

Thank you for choosing the Braun Series 7 70-N1000 Electric Shaver. This device is engineered for a smooth and efficient shave, featuring 360° Flex adaptation and AutoSense technology. Designed for both wet and dry use, it offers convenience and performance. Please read this manual thoroughly before first use to ensure safe operation and optimal results. Keep this manual for future reference.

2. Stiùireadh Sàbhailteachd Cudromach

Nuair a bhios tu a’ cleachdadh inneal dealain, bu chòir ceumannan bunaiteach a leantainn an-còmhnaidh, a’ toirt a-steach na leanas:

• Uisge agus Dealain: This appliance is suitable for use in a bath or shower. For safety reasons, the shaver can only be operated cordless. Do not immerse the charging stand or power cord in water.
• Solar cumhachd: Use only the special cord set provided with your appliance. Do not use with a damaged foil or cord.
• Clann: Faodar an inneal seo a chleachdadh le clann aois 8 bliadhna agus nas sine agus daoine le comasan corporra, mothachaidh no inntinn nas lugha no dìth eòlas agus eòlas ma chaidh stiùireadh no stiùireadh a thoirt dhaibh a thaobh cleachdadh an inneil ann an dòigh shàbhailte agus ma thuigeas iad na cunnartan. an sàs. Chan fhaod clann cluich leis an inneal. Chan fhaod clann glanadh agus cumail suas luchd-cleachdaidh a dhèanamh mura h-eil iad nas sine na 8 agus fo stiùir.
• Teòthachd: Do not expose the shaver to temperatures above 50°C (122°F) for extended periods.
• Milleadh: If the appliance is damaged, do not use it. Contact an authorized Braun service center for repair.

3. Toradh thallview agus Co-phàirtean

Your Braun Series 7 70-N1000 electric shaver comes with several components designed for a complete shaving experience.

3.1 Clàr-innse bogsa

• Braun Series 7 Electric Shaver (Model 70-N1000)
• Cùis Siubhail
• Smart Plug (for automatic 100-240 voltagatharrachadh)
• Brusg glanaidh

3.2 Shaver Components

Familiarize yourself with the main parts of your shaver:

• Flexible Shaving Head: Adapts 360° to facial contours.
• Foil and Cutter Block: The shaving elements that capture and cut hair.
• Putan Cumhachd: Gus an inneal-bearraidh a thionndadh air agus dheth.
• Taisbeanadh LED: Shows battery status, cleaning indicator, and travel lock.
• Trimmer mionaideachd: (If included as an attachment or integrated) For shaping sideburns and mustaches.

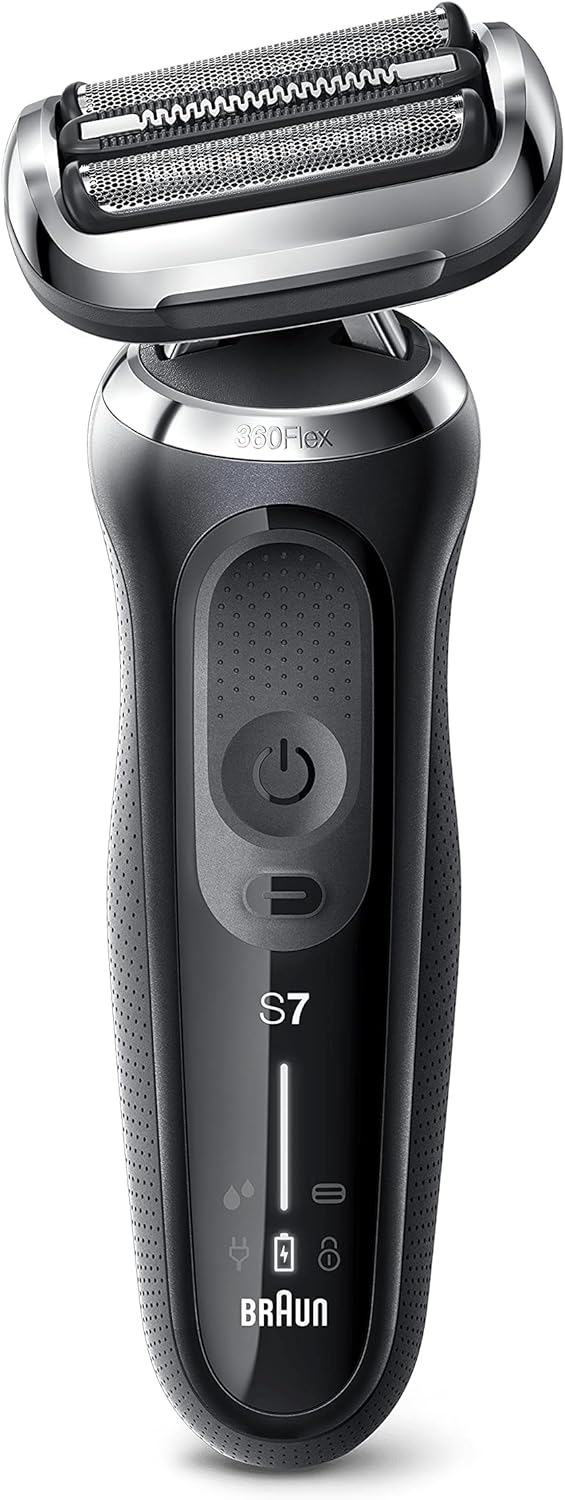

Figear 1: Aghaidh view of the Braun Series 7 electric shaver. This image displays the Braun Series 7 electric shaver from the front. Visible features include the flexible shaving head with foil and cutter block, the power button, and LED indicators for battery status and cleaning.

Figure 2: Braun Series 7 shaver with its retail box and travel case. This image shows the complete package: the Braun Series 7 electric shaver, its original retail packaging, and a protective travel case. These are the primary components included with your purchase.

4. Suidhich

4.1 Cìs tòiseachaidh

1. Before using your shaver for the first time, connect it to the power outlet using the provided Smart Plug.
2. Charge the shaver for approximately 1 hour to ensure a full charge. The LED display will indicate charging progress and a full battery. A full charge provides up to 50 minutes of cordless shaving.
3. A 5-minute quick charge is sufficient for one shave.

4.2 Attaching/Detaching Attachments (if applicable)

If your model includes a precision trimmer attachment or other EasyClick accessories, ensure the shaver is turned off before attaching or detaching them. Simply click the attachment onto the shaver head until it locks into place. To remove, pull the attachment off.

5. Stiùireadh Obrachaidh

5.1 A’ cur cumhachd air/dheth

• To turn the shaver on, press the power button once.
• To turn the shaver off, press the power button again.

5.2 Molaidhean airson Bearradh

Airson na toraidhean as fheàrr, lean an stiùireadh seo:

• Bearradh tioram: Ensure your face is dry before shaving. Hold the shaver at a right angle (90°) to your skin and shave against the direction of hair growth.
• Bearradh fliuch: You can use the shaver with foam or gel for a refreshing shave. Apply shaving foam/gel to your face, then shave as usual. Rinse the shaver head under running water during and after use.
• 360° Flex Adaptation: The shaver head automatically adapts to your facial contours, ensuring maximum skin contact for a close shave. Apply gentle pressure.
• Teicneòlas AutoSense: The shaver reads your beard density and adjusts its power accordingly, removing more hairs in every stroke, even with dense beards.

Figure 3: Illustration of the 360° Flex head movement. This image illustrates the 360 Flex adaptation feature of the Braun Series 7 shaver, showing how the head pivots to maintain contact with facial contours. The travel case is also visible.

5.3 Using the Precision Trimmer

If your shaver has an integrated precision trimmer, slide it upwards to activate. Use it for precise shaping of sideburns, mustaches, or for pre-trimming longer hairs before shaving.

6. Glanadh agus Cumail suas

Bidh glanadh cunbhalach a’ dèanamh cinnteach à coileanadh agus slàinteachas as fheàrr airson do bearradair.

6.1 Daily Cleaning (Rinsing)

1. Às dèidh gach bearradh, cuir dheth an inneal-bearraidh.
2. Hold the shaver head under warm running water until all residue is rinsed away. You can use liquid soap for a more thorough clean.
3. Shake off excess water and let the shaver head air dry.

6.2 Thorough Cleaning (Brush)

1. Ensure the shaver is turned off and disconnected from the power supply.
2. Remove the foil and cutter block.
3. Use the provided cleaning brush to remove any loose hairs from the shaver head and the inner housing. Do not use the brush on the foil as it may damage it.
4. Reattach the foil and cutter block.

6.3 SmartCare Center (if applicable)

If your Series 7 model includes a SmartCare Center, refer to its separate instruction manual for detailed cleaning and charging procedures. The SmartCare Center automatically cleans, lubricates, dries, and charges your shaver at the touch of a button.

6.4 Pàirtean an Raiseadair a Chur nan Àite

To maintain 100% shaving performance, replace the foil and cutter block every 18 months, or when worn. Replacement parts are available from Braun retailers or service centers. The shaver's LED display may indicate when replacement is due.

7. A ’dèanamh trioblaid

If you encounter issues with your Braun Series 7 shaver, consult the following table:

8. Sònrachaidhean Teicnigeach

• Brand: Braun
• Ainm a' mhodail: Sreath 7.
• Àireamh Modail: 70-N1000S
• Stòr cumhachd: Cumhachdaichte le bataraidh (Li-Ion)
• Beatha bataraidh: Up to 50 minutes of shaving
• Cìs luath: 5 mionaidean airson aon bearradh
• Uisge-dhìonach: 100% waterproof for Wet & Dry use
• Feartan sònraichte: 360° Flex Adaptation, AutoSense Technology
• Cuideam nì: 353 gram
• Stuth lann: Stàilinn nach meirg
• Seòrsa Ceann: Foil (Testine a lamina)

9. Barantas agus Taic Luchd-ceannach

Your Braun Series 7 shaver comes with a manufacturer's warranty. For detailed warranty information, terms, and conditions, please refer to the warranty card included in your product packaging or visit the official Braun website. For customer support, service, or to purchase replacement parts, please contact Braun customer service or visit their official weblàrach:

Oifigeil Braun Weblàrach: www.braun.com

Please have your model number (70-N1000S) and proof of purchase ready when contacting support.
