1. Ro-ràdh agus Os a chionnview
The Ring Automotive RSC804 is a 4A smart battery charger and maintainer designed for a wide range of 6V and 12V vehicle batteries. It is compatible with Lead Acid, Gel, Calcium, EFB, and AGM battery types, including those found in START/STOP vehicles. This device ensures your battery remains in optimal condition by preventing overcharging and automatically transitioning to a long-term maintenance mode once fully charged. Its user-friendly design features one-button operation and a clear, backlit LCD display for easy monitoring of the charging process.
The RSC804 incorporates essential safety features such as reverse polarity and short-circuit protection, providing a secure and reliable charging experience.
2. Fiosrachadh Sàbhailteachd
Please read all safety instructions before using the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Cuir ort dìon-sùla agus aodach dìona an-còmhnaidh nuair a bhios tu ag obair le bataraidhean.
- Ensure adequate ventilation in the charging area to prevent the accumulation of explosive gases.
- Do not smoke or allow sparks or flames near the battery or charger.
- Disconnect the AC power supply from the charger before connecting or disconnecting the battery leads.
- Na cuir cosgais air bataraidh reòta no millte.
- The charger is equipped with reverse polarity and short-circuit protection. However, always ensure correct polarity connections (positive to positive, negative to negative) to prevent damage.
- Keep the charger away from water and moisture. The unit is IP65 weatherproof, but direct submersion should be avoided.
- Na feuch ri an charger fhosgladh no atharrachadh. Thoir aire do luchd-obrach teisteanasach airson a h-uile seirbheiseachadh.
3. Dè tha sa bhogsa
Nuair a dh’fhosglas tu am pasgan, dèan cinnteach gu bheil na pàirtean uile an làthair:
- Ring Automotive RSC804 Smart Battery Charger
- Connectors with battery clamps
- O-ring terminals for long-term connection
- Leabhar-làimhe cleachdaiche

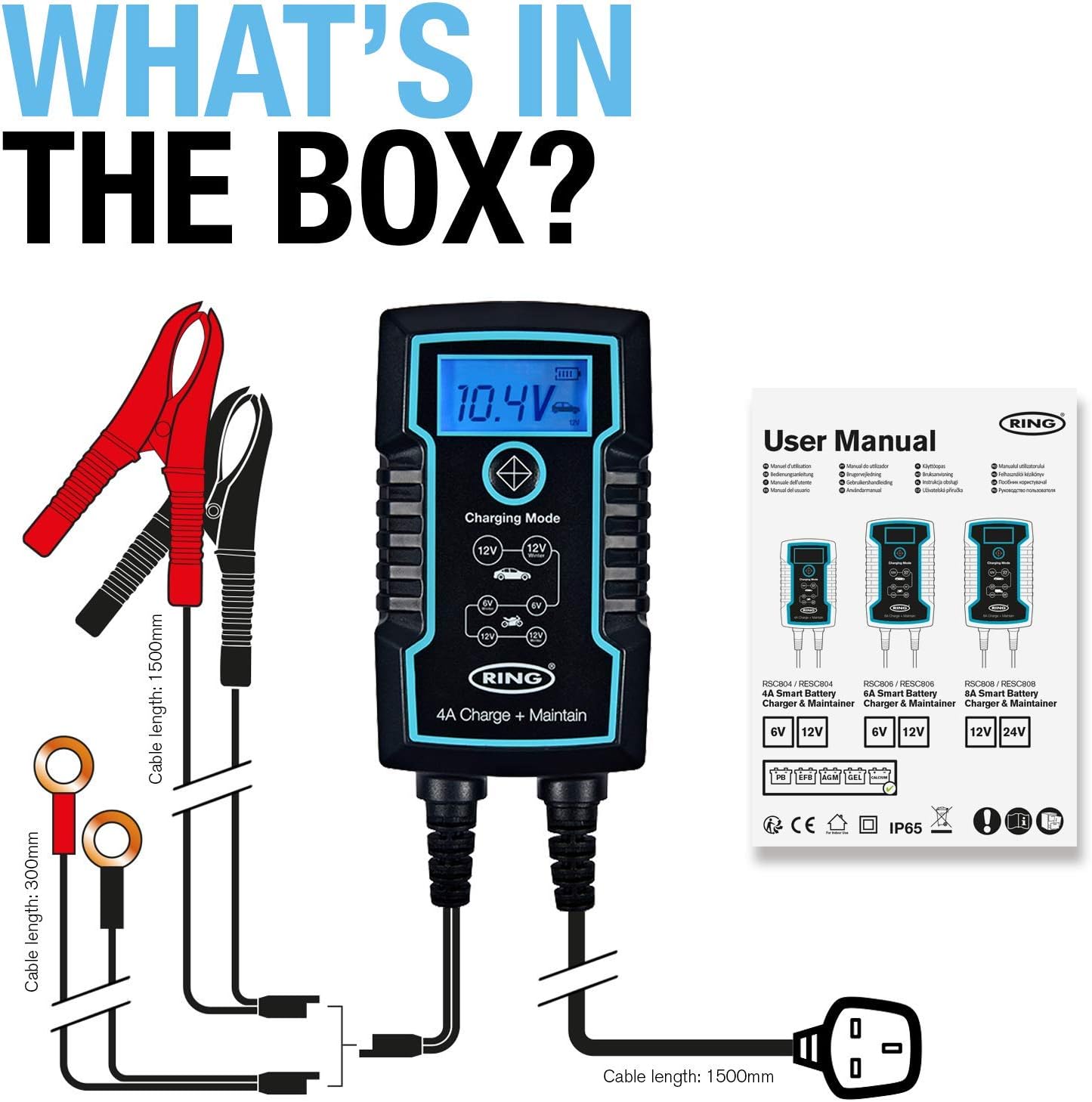

Image: Contents of the Ring Automotive RSC804 box, showing the charger, battery clamps, O-ring terminals, and user manual.
4. Stiùireadh Stèidheachaidh
Follow these steps to safely set up your battery charger:
- Ullaich am Bataraidh: Ensure the battery terminals are clean and free from corrosion. If necessary, clean them with a wire brush.
- Ceangail ris a’ Bhataraidh:
- A’ cleachdadh Clamps: Ceangail an dearg (dearbhach) clamp to the positive (+) battery terminal. Connect the black (negative) clamp ris a’ cheann-uidhe àicheil (-) bataraidh. Dèan cinnteach gu bheil ceangal tèarainte ann.
- Using O-Ring Terminals (for long-term connection): Attach the red O-ring terminal to the positive (+) battery post and the black O-ring terminal to the negative (-) battery post. Secure them with the battery nuts.
- Ceangail ri cumhachd: Once the battery leads are securely connected, plug the charger's AC power cord into a suitable 230V mains outlet.
- Sgrùdadh tòiseachaidh: The charger's LCD display will illuminate, indicating it is powered on and ready for operation.
Image: Ring Automotive RSC804 charger connected to a car battery using clamps, illustrating a typical setup.
Image: Close-up of the RSC804 charger connected to a car battery, demonstrating proper terminal attachment.
5. Stiùireadh Obrachaidh
Operating the RSC804 charger is straightforward:
- Cumhachd air: After connecting the charger to the battery and mains power, the charger will automatically power on.
- Tagh Modh Cosgais: Use the single button on the charger to cycle through the available charging modes. The backlit LCD display will show the selected mode (e.g., 6V, 12V Car, 12V Motorcycle). Select the mode appropriate for your battery type and voltage.
- Cum sùil air adhartas cosgais: The LCD display provides real-time information including:
- Bataraidh Voltage: A’ taisbeanadh an voltage den bataraidh.
- Adhartas cosgais: An icon or indicator shows the battery's charging status.
- Modh Taghte: Confirms the active charging program.
- Cumail suas fèin-ghluasadach: Once the battery reaches full charge, the RSC804 will automatically switch to a maintenance (trickle charge) mode. This prevents overcharging and keeps the battery optimally charged for extended periods.
- A' dì-cheangal: To disconnect the charger, first unplug the AC power cord from the mains outlet. Then, disconnect the negative (-) battery lead, followed by the positive (+) battery lead.

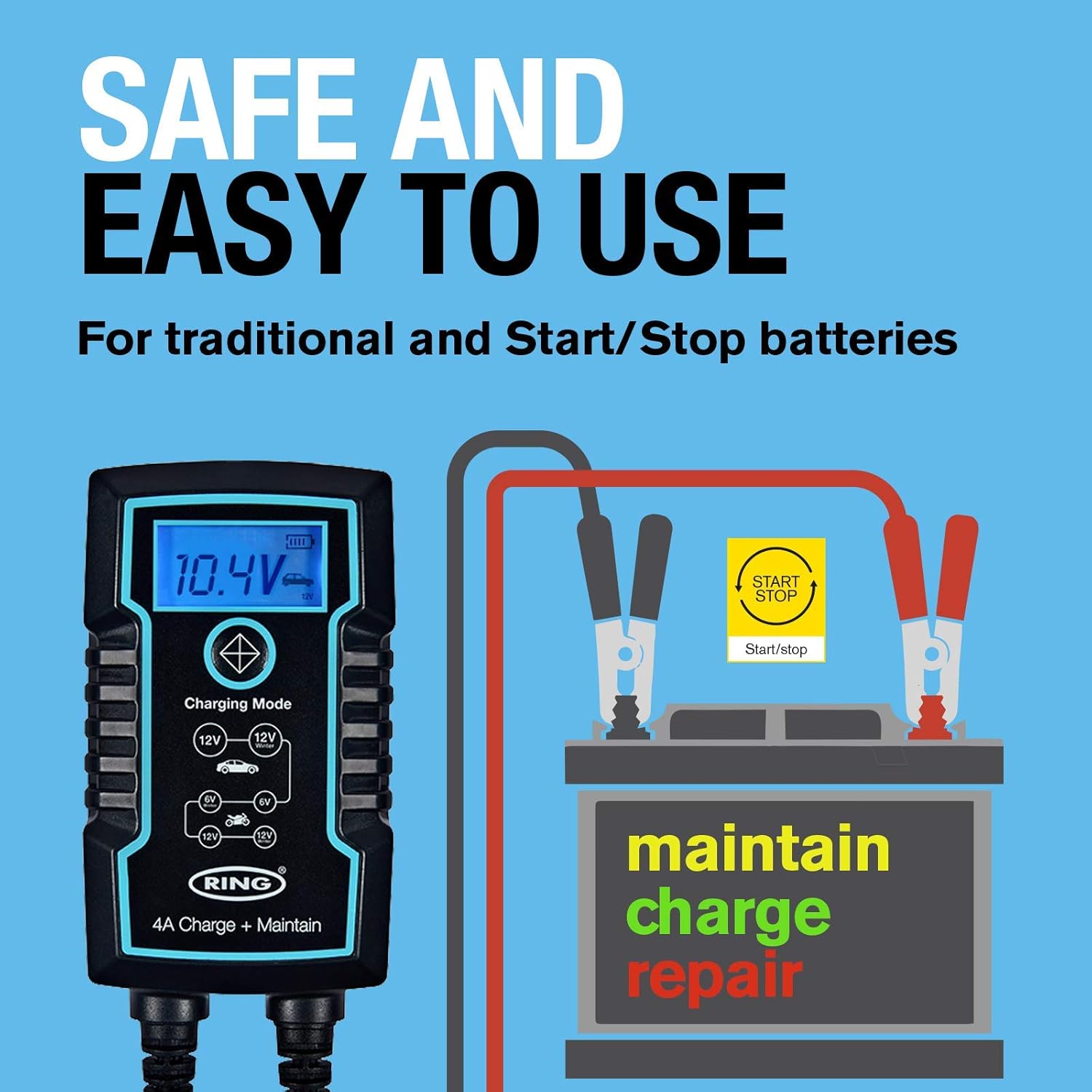

Ìomhaigh: Mion-fhiosrachadh view of the RSC804's backlit LCD display, highlighting voltage, charge progress, and mode selection.
Image: The RSC804 charger in operation, displaying 12.0V and indicating maintenance mode, conveniently hanging from a vehicle's hood.
6. Cumail suas
Proper maintenance ensures the longevity and reliable performance of your RSC804 charger:
- Glanadh: Periodically wipe the charger's casing with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Sgrùdadh càball: Regularly inspect the power cord and battery leads for any signs of damage, cuts, or fraying. Do not use the charger if any cables are damaged.
- Stòradh: Store the charger in a cool, dry place when not in use. Keep it away from direct sunlight, extreme temperatures, and moisture.
- Crìochnachaidhean Bataraidh: Ensure battery terminals remain clean for optimal connection.
Image: The RSC804 charger's rugged and weatherproof (IP65) design, suitable for various environments.
7. A ’dèanamh trioblaid
If you encounter issues with your RSC804 charger, refer to the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Chan eil an charger a’ dol air. | Gun chumhachd AC, socaid lochtach, càball cumhachd millte. | Check mains power supply. Try a different outlet. Inspect power cord for damage. |
| Charger connected but not charging. | Incorrect battery connection, wrong mode selected, deeply discharged battery. | Ensure correct polarity and secure connections. Select the appropriate 6V or 12V mode. For deeply discharged batteries, the charger may take some time to initiate charging. |
| Error message or indicator light. | Reverse polarity, short circuit, internal fault. | Disconnect immediately. Recheck battery connections for correct polarity. If error persists, contact customer support. |
| Bataraidh gun a bhith a’ cur làn-chosgais air. | Battery fault, incorrect mode, charger fault. | Have the battery tested by a professional. Ensure the correct charging mode is selected. If the battery is confirmed good, contact customer support. |
If troubleshooting steps do not resolve the issue, please contact Ring Automotive customer support for further assistance.
8. Sònrachaidhean
| Sònrachadh | Luach |
|---|---|
| Modail Àireamh | RSC804 |
| Input Voltage | 230 volt AC |
| Toradh Voltage | 6V / 12V DC |
| Ìre làithreach (Amplinn) | 4 Amps |
| Dètage | 60W |
| Co-fhreagarrachd bataraidh | Lead Acid, Gel, Calcium, EFB, AGM |
| Àireamh de phuirt | 1 |
| Cuideam nì | 760 gram |
| Dath | Dubh |
| Feartan dìon | Reverse Polarity, Short-Circuit, Overcharging |
| Rangachadh dìon-aimsir | IP65 |
9. Barantas agus Taic
This Ring Automotive product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Ring Automotive website. In case of product defects or operational issues not resolved by the troubleshooting guide, please contact Ring Automotive customer support. Have your model number (RSC804) and proof of purchase ready when contacting support.
For the most up-to-date support information and contact details, please visit the official Ring Automotive weblàrach.
