Dioche 24V 350W Brushless Motor Controller Instruction Manual

1. Toradh thallview

The Dioche 24V 350W Brushless Motor Controller is designed to provide stable speed and sensitive control for braking and direction changes in electric bicycles and scooters. Its aluminum alloy shell offers excellent heat dissipation, protecting the internal circuitry from thermal overloading. The durable wires and interfaces are designed for long-term reliability and feature clear labels for straightforward installation.

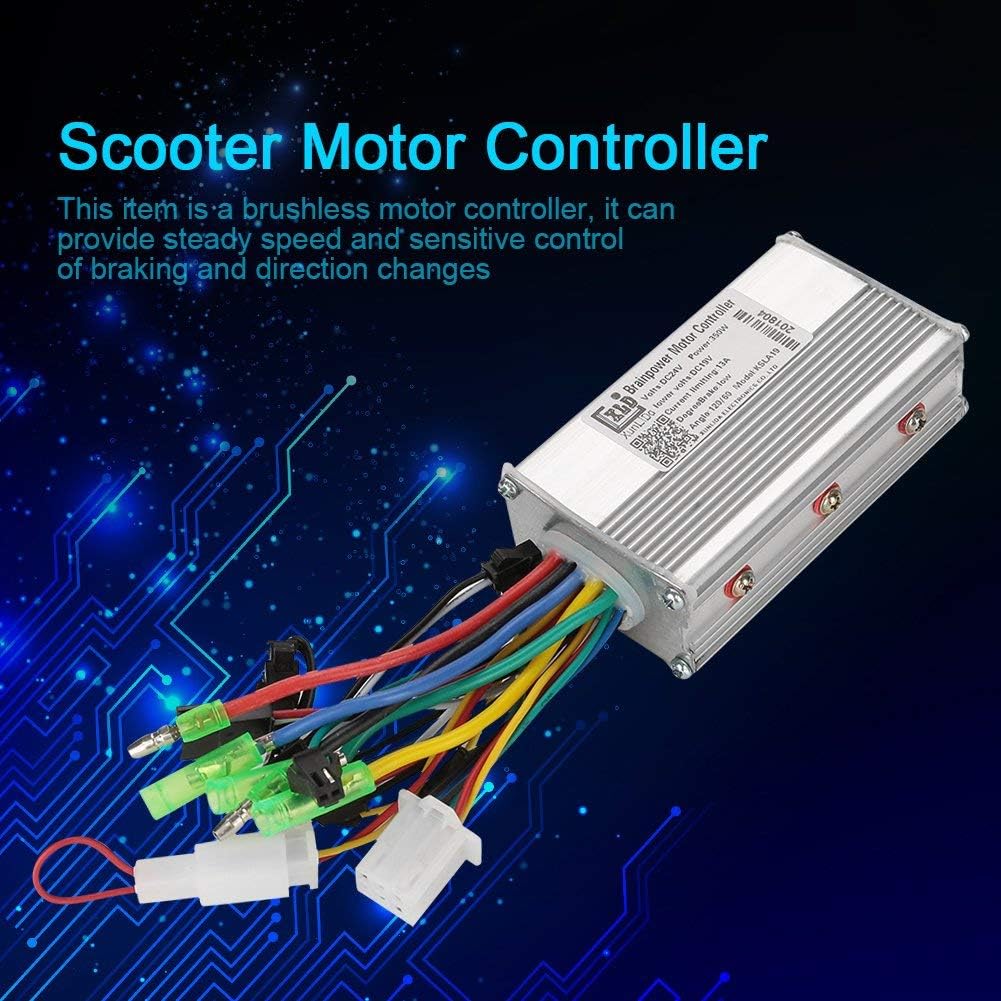

Image 1.1: The Dioche 24V 350W Brushless Motor Controller, showcasing its compact design and array of connection wires.

2. Sònrachaidhean

3. Fiosrachadh Sàbhailteachd

• Always disconnect power before installation, maintenance, or troubleshooting.
• Dèan cinnteach gu bheil a h-uile ceangal tèarainte agus air a insaladh gu ceart gus casg a chur air cuairtean goirid.
• Do not expose the controller to water or extreme temperatures.
• Dèan cinnteach gu bheil an voltage and power ratings of your motor and battery are compatible with this controller.
• Iarr cuideachadh proifeasanta mura h-eil thu cinnteach mu cheumannan stàlaidh sam bith.

4. Setup agus Stàladh

Carefully follow these steps to install your brushless motor controller. Refer to the labels on the controller's interfaces and the provided diagrams for correct connections. Incorrect wiring can damage the controller or other components.

Image 4.1: Detailed wiring diagram for the Dioche Brushless Motor Controller, showing labeled connectors for various functions.

Ceumannan ceangail:

1. Motor Cables (A, B, C): Connect the three thick motor phase wires (typically green, yellow, blue) from the controller to the corresponding motor phase wires. Ensure colors match.
2. Sensor Talla: Connect the Hall sensor wire bundle (usually a 5-wire connector) from the controller to the motor's Hall sensor connector.
3. Ceangal Bataraidh:
   • Battery Positive Electrode: Connect the red wire from the controller to the positive terminal of your 24V battery.
   • Battery Negative Electrode: Connect the black wire from the controller to the negative terminal of your 24V battery.
4. Speed Steering Handle (Throttle): Connect the throttle connector (typically a 3-wire connector) to the speed control handle.
5. Breic Comasach Ìosal: Connect the brake signal wire(s) to your brake levers. This connection typically cuts power to the motor when brakes are applied.
6. Assist Sensor (PAS): If your electric bicycle has a pedal-assist system, connect the assist sensor wire to the corresponding connector.
7. Intelligent Identification (Self-Learning Wires): These two wires (often white or green) are used for initial motor direction setup. Connect them, power on, and the motor will spin. If it spins in the wrong direction, disconnect, reconnect, and power on again. Once the correct direction is established, disconnect and leave them disconnected.
8. Gnìomh Turas-mara: If your system supports a cruise control function, connect the cruise function wires.

After all connections are made, double-check each wire against the labels and diagrams before applying power.

Ìomhaigh 4.2: Sealladh dlùth view of various connectors and the controller's identification label, aiding in correct wiring.

5. Stiùireadh Obrachaidh

1. Ensure all connections are secure and the battery is charged.
2. Turn on the main power switch of your electric vehicle.
3. Use the speed steering handle (throttle) to control the motor's speed.
4. Apply brakes as needed; the controller will cut power to the motor when the brake signal is received.
5. If equipped, engage the cruise function for maintaining a constant speed.

6. Cumail suas

• Cùm an rianadair glan agus saor bho dhuslach is sprùilleach.
• Regularly inspect all wire connections for looseness or damage.
• Avoid exposing the controller to direct sunlight for prolonged periods or to environments with high humidity.
• Na feuch ri an rianadair c fhosgladhasing, as this may void any warranty and could lead to damage.

7. A ’dèanamh trioblaid

• Motair gun fhreagairt: Check battery charge, ensure all power connections are secure, and verify throttle connection. Re-check the intelligent identification wires if motor direction was an issue.
• Cumhachd eadar-amail: Inspect all wiring for loose connections or damaged insulation. Ensure the battery is providing consistent voltage.
• Overheating Controller: Ensure the controller is mounted in a location with adequate airflow. Verify that the motor is not drawing excessive current due to a fault or overload.
• Brakes Not Cutting Power: Check the low potential brake wire connection and ensure the brake levers are functioning correctly.

8. Barantas agus Taic

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and duration, please refer to the documentation provided at the time of purchase or contact your retailer.

For technical support or inquiries, please contact the seller or manufacturer directly. Provide your product model number and purchase details for efficient assistance.
