FSP 400W Micro ATX Power Supply (FSP400-60GHS(85)-R1) User Manual

1. Ro-ràdh

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your FSP 400W Micro ATX Power Supply (Model FSP400-60GHS(85)-R1). This power supply unit is designed for compact small form factor PC systems, offering 400 watts of power output with 80 Plus Bronze certification for high efficiency. It is compatible with Intel and AMD CPU systems and standard PC configurations.

Please read this manual thoroughly before installation and operation to ensure proper usage and to prevent damage to the unit or other components.

2. Fiosrachadh Sàbhailteachd

RABHADH: Power supplies contain high voltagna pàirtean. Na fosgail an solar cumhachd casing. Chan eil pàirtean sam bith a dh’ fhaodas an neach-cleachdaidh a chàradh a-staigh. A’ fosgladh a’ chasing will void the warranty and poses a risk of electric shock.

• Ensure the power supply is disconnected from the AC power outlet before installation or maintenance.
• Stàlaich an solar cumhachd ann an àite le deagh fhionnarachadh.
• Do not operate the power supply in high humidity or extreme temperature environments.
• Use only the cables provided with the power supply.
• Dèan cinnteach gu bheil na càbaill uile ceangailte gu tèarainte mus cuir thu cumhachd air an t-siostam.
• This product is designed for use in personal computers. Do not use it for any other purpose.

3. Pasgan-susbaint

Dearbhaich gu bheil na nithean gu lèir a tha air an liostadh gu h-ìosal an làthair sa phacaid agad:

• FSP 400W Micro ATX Power Supply (FSP400-60GHS(85)-R1)
• Corda cumhachd AC
• SFX to PS2 Bracket
• Leabhar-làimhe cleachdaiche
• Mounting Screws (typically included with PC cases, but sometimes with PSUs)

Figure 3.1: Package Contents. Shows the power supply unit, user manual, various power cables, an AC power cord, and an SFX to PS2 adapter bracket.

4. Toradh thallview

The FSP400-60GHS(85)-R1 is a compact power supply designed for small form factor systems. Key features include an 80mm cooling fan with thermal sensing technology and an energy-saving 1-watt standby mode.

4.1 Physical Layout

Figear 4.1: Ceàrnach view of the FSP 400W Micro ATX Power Supply, highlighting the fan grille, power switch, and AC power input.

Figear 4.2: Cùl view of the power supply, detailing the main power switch and the AC power input socket.

Figear 4.3: Mullach view of the power supply, showing the protective grille over the 80mm cooling fan.

4.2 Ceangalaichean Toraidh

The power supply includes various connectors to power your system components:

Figure 4.4: Diagram illustrating the types and quantities of output connectors available on the FSP400-60GHS(85)-R1 power supply.

• Main 24 Pin (1): For motherboard power.
• P4 | EPS 4+4 Pin (1): For CPU power.
• PCI-E 8 Pin (6+2) (1): Airson cairtean grafaigeachd.
• Molex 4 Pin (3): For older peripherals and fans.
• Serial ATA 15 Pin (3): For SATA hard drives and SSDs.
• FDD 4 Pin (1): For floppy disk drives or other legacy devices.

5. Setup agus Stàladh

Before beginning installation, ensure your computer system is powered off and disconnected from the AC power outlet. It is recommended to wear an anti-static wrist strap to prevent electrostatic discharge (ESD) damage to components.

5.1 A’ stàladh an t-solair cumhachd

1. Ullaich a’ chùis: Open your computer case. Identify the power supply mounting area.
2. A’ cur an PSU air dòigh:
   • For SFX cases: Insert the FSP400-60GHS(85)-R1 directly into the SFX power supply bay and secure it with screws.
   • For standard ATX cases: Attach the included SFX to PS2 bracket to the power supply. Then, mount the power supply with the bracket into the ATX power supply bay and secure it with screws.

Figure 5.1: The FSP 400W Micro ATX Power Supply shown with the SFX to PS2 adapter bracket installed, ready for mounting in a standard ATX case.

Figure 5.2: Illustration demonstrating how the SFX power supply fits into a PS2 (ATX) case using the provided adapter bracket.

5.2 càball ceangail

Connect the appropriate cables to your motherboard and components. Refer to your motherboard and component manuals for specific connection points.

1. Cumhachd a’ Bhùird-mhàthar: Connect the 24-pin ATX connector to the corresponding socket on your motherboard.
2. Cumhachd CPU: Connect the 4+4-pin EPS/ATX 12V connector to the CPU power socket on your motherboard.
3. Cumhachd Cairt Grafaigean: If your graphics card requires external power, connect the 6+2-pin PCI-E connector(s) to the graphics card.
4. Innealan stòraidh: Connect SATA power connectors to your SATA hard drives, SSDs, and optical drives.
5. Iomallaichean: Use Molex 4-pin connectors for case fans or other legacy peripherals as needed.
6. Riaghladh càbaill: Sligheich na càbaill gu grinn gus dèanamh cinnteach gu bheil sruth-adhair ceart anns a’ chùis.

Once all internal connections are made, close your computer case.

5.3 Ceangal Taobh a-muigh

1. Connect the AC power cord to the power supply's AC inlet.
2. Cuir ceann eile a’ chàball cumhachd AC a-steach do socaid balla le talamh no dìonadair borb.
3. Ensure the power switch on the back of the power supply is in the "OFF" (O) position before plugging it in.

6. Stiùireadh Obrachaidh

6.1 A’ cur cumhachd air an t-siostam agad

1. After all connections are secure, flip the power switch on the back of the power supply to the "ON" (I) position.
2. Brùth am putan cumhachd air cùis a’ choimpiutair agad gus an siostam a thòiseachadh.

6.2 Thermal Control System

The FSP400-60GHS(85)-R1 features an 80mm cooling fan with thermal sensing technology. This system automatically adjusts the fan speed based on the internal temperature of the power supply, optimizing cooling performance while minimizing noise.

6.3 Energy Saver Standby Mode

This power supply is designed with an energy-saving 1-watt standby mode, reducing power consumption when the system is in a low-power state or turned off but still connected to AC power.

7. Cumail suas

Nì cumail suas ceart cinnteach gum mair an solar cumhachd agad fad-beatha agus gum bi e ag obair gu math.

• Glanadh: Periodically clean the exterior of the power supply and its fan grille to prevent dust buildup. Use a soft, dry cloth or compressed air. Ensure the power supply is disconnected from AC power before cleaning.
• Fionnarachadh: Ensure that the power supply's fan and ventilation openings are not obstructed. Good airflow is crucial for cooling.
• Ionracas càball: Thoir sùil cunbhalach air na càbaill cumhachd uile airson comharran caitheamh, sgàineadh no milleadh sam bith. Cuir càbaill millte nan àite sa bhad.

Do not attempt to open the power supply unit for internal cleaning or repair. This will void the warranty and can be dangerous.

8. A ’dèanamh trioblaid

Ma thachras tu ri duilgheadasan leis an t-solar cumhachd agad, thoir sùil air na duilgheadasan agus na fuasglaidhean cumanta a leanas:

8.1 No Power to System

• Thoir sùil air Cumhachd AC: Dèan cinnteach gu bheil an càball cumhachd AC air a phlugaigeadh gu tèarainte a-steach don t-solar cumhachd agus do socaid balla a tha ag obair.
• Switch cumhachd: Verify that the power switch on the back of the power supply is in the "ON" (I) position.
• Ceanglaichean a-staigh: Confirm that the 24-pin ATX and 4+4-pin EPS/ATX 12V connectors are firmly seated in the motherboard.
• Cuairt ghoirid: Disconnect all peripheral power cables (SATA, Molex, PCI-E) and attempt to power on. If the system powers on, a short circuit may exist in one of the connected components or cables. Reconnect them one by one to identify the faulty component.

8.2 System Instability or Random Shutdowns

• Overload: Ensure your system's power requirements do not exceed the 400W capacity of the power supply.
• Fionnarachadh: Check for proper airflow within the case and ensure the power supply's fan is not obstructed. Overheating can cause instability.
• Ceanglaichean càball: Re-check all power connections to ensure they are secure. Loose connections can lead to intermittent power delivery.

8.3 Fuaim Cus Luchd-leantainn

• Cruinneachadh Dust: Clean the fan grille and fan blades with compressed air.
• Bacaidh: Ensure no cables or foreign objects are interfering with the fan's rotation.
• Àrainneachd Obrachaidh: High ambient temperatures can cause the thermal control system to increase fan speed. Ensure adequate room ventilation.

If troubleshooting steps do not resolve the issue, contact FSP customer support or your retailer for assistance.

9. Sònrachaidhean

Detailed technical specifications for the FSP400-60GHS(85)-R1 power supply:

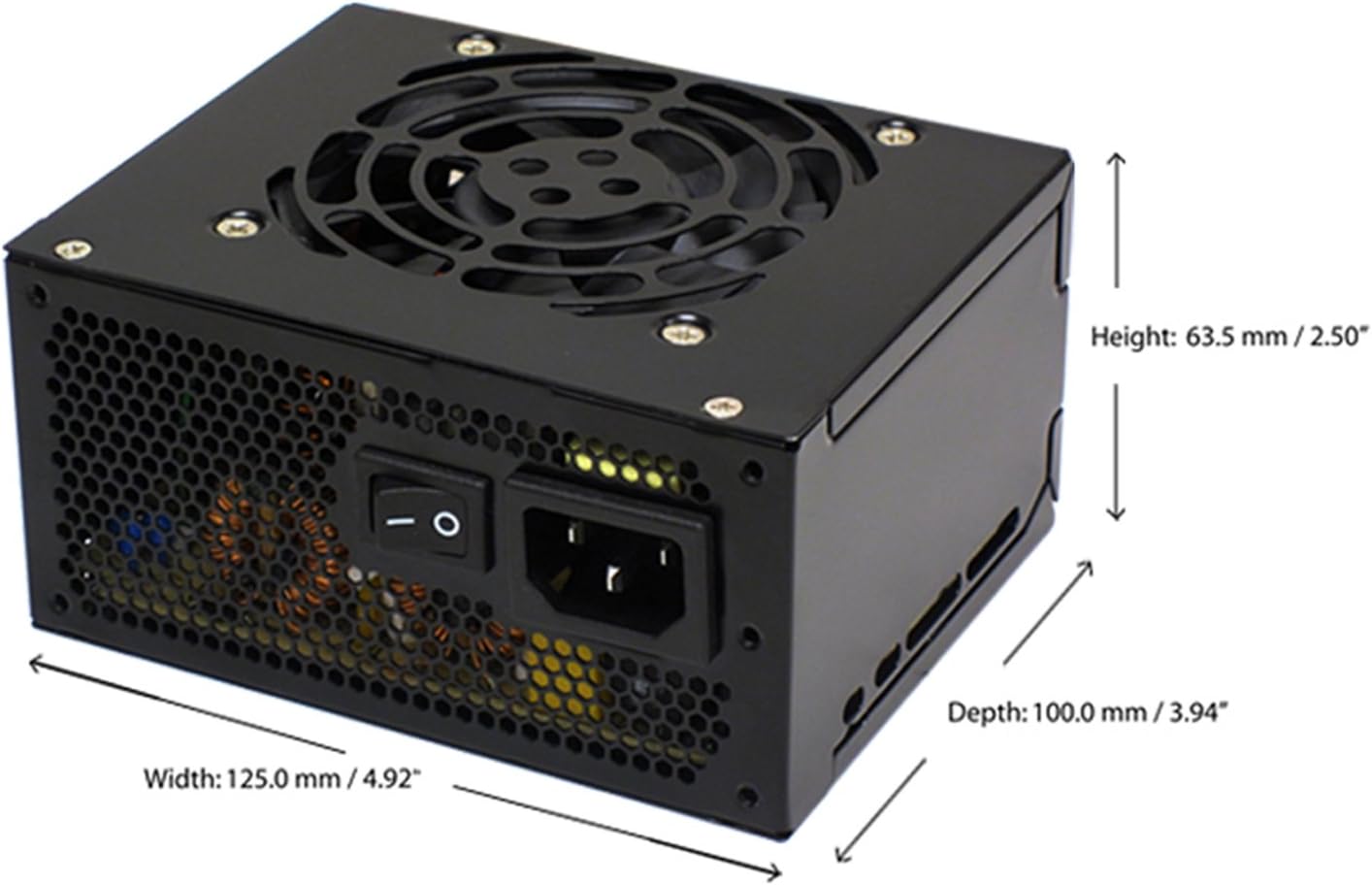

Figure 9.1: Physical dimensions of the FSP 400W Micro ATX Power Supply.

Figure 9.2: Illustrative diagram showing typical cable lengths for the power supply connectors.

10. Fiosrachadh Barantais

The FSP 400W Micro ATX Power Supply (FSP400-60GHS(85)-R1) is covered by a Barantas an neach-dèanamh 3-bliadhna. This warranty guarantees the quality and performance of the product for the specified period from the date of purchase.

The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accidents, misuse, abuse, natural disasters, or unauthorized modifications or repairs. Opening the power supply casincuiridh g am barantas às aonais buaidh.

For warranty claims or service, please retain your proof of purchase and contact FSP customer support.

11. Taic teachdaiche

If you require further assistance, have questions, or need to report an issue that cannot be resolved using the troubleshooting guide, please contact FSP customer support.

• FSP Weblàrach: Visit the official FSP weblàrach airson fiosrachadh mu thoraidhean, ceistean cumanta, agus goireasan taic.
• Fiosrachadh conaltraidh: Refer to the FSP website or your product packaging for the most current customer service contact details (phone, email, or support portal).

When contacting support, please have your product model number (FSP400-60GHS(85)-R1) and proof of purchase readily available.
