1. Ro-ràdh
The Axxess Metra AX-ADXSVI-GM3 is an Auto Detect XSVI Interface Wiring Harness designed for specific GM vehicles from 2000-2013. This harness facilitates the installation of an aftermarket radio by providing essential outputs such as accessory power, retained accessory power (RAP), and navigation outputs (parking brake, reverse, and V.S.S.). It is intended for use in non-amplified systems or when replacing an ampsiostam sgaoilidh.
Nota Cudromach: This harness must be used in conjunction with the AX-ADXSVI interface (sold separately). When using this harness, all factory chimes will be lost.

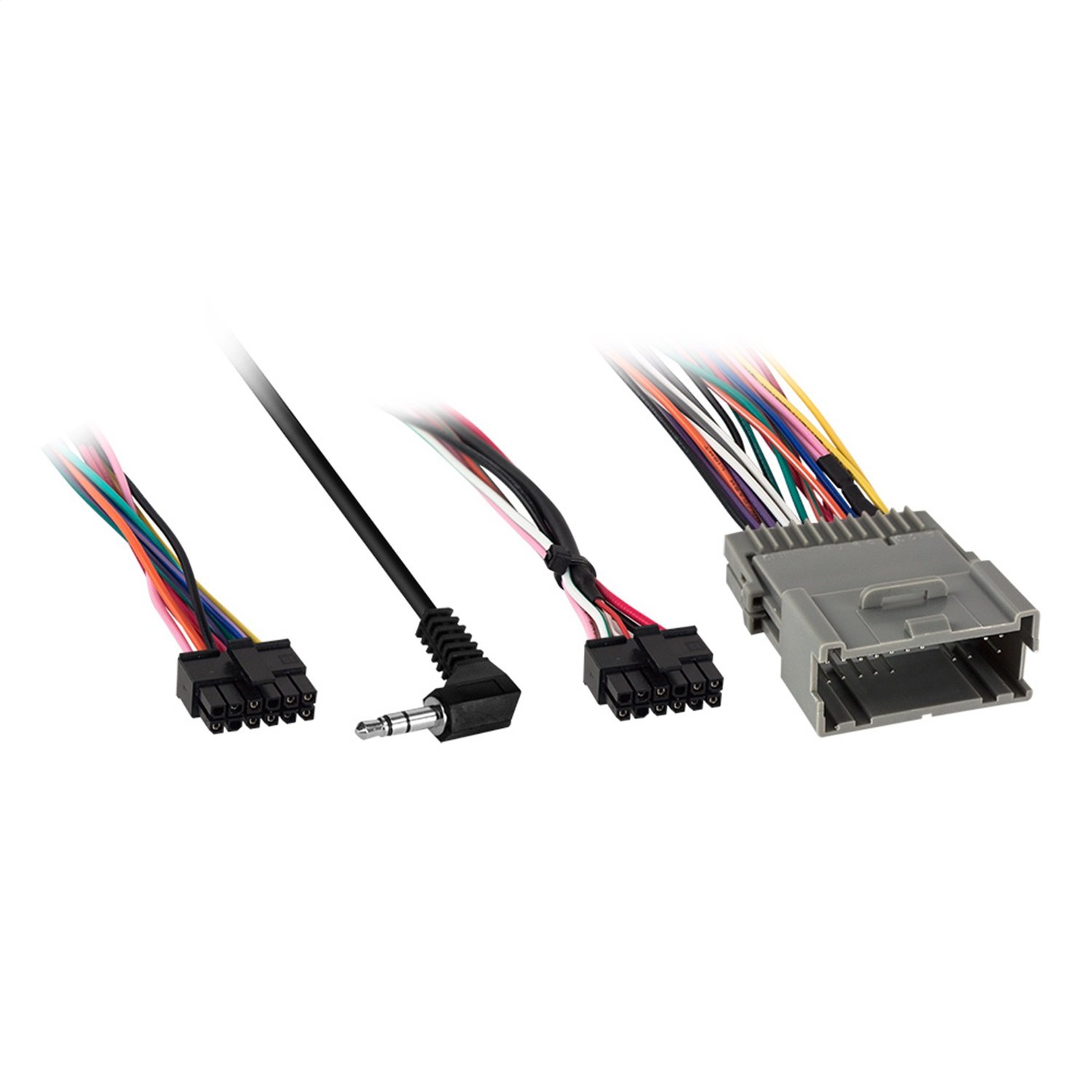

Image 1.1: The Metra AX-ADXSVI-GM3 wiring harness. This image displays the main harness component with its various connectors, designed to integrate an aftermarket radio into compatible GM vehicles.
2. Co-chòrdalachd charbadan
The AX-ADXSVI-GM3 harness is compatible with the following GM vehicles:
- Buic: Allure/Lacrosse (2005-2009), Century (2004-2005), Rainier (2004-2007), Regal (2004), Rendezvous (2002-2007), Terraza (2005-2008)
- Cadillac: Escalade/Escalade EXT/ESV (2003-2006)
- Chevrolet: Avalanche/Silverado/SSR/Suburban/Tahoe (2003-2006), Cavalier/Impala/Monte Carlo/Venture (2000-2005), Colorado (2004-2012), Corvette (2005-2013), Express (2003-2007), Kodiak (2003-2009), Malibu (2001-2003), Trailblazer (2002-2009), Uplander (2005-2008)
- GMC: Canyon (2004-2012), Envoy (2002-2009), Savanna/Sierra (2003-2007), TopKick C4500-C8500 (2005-2009), Yukon/Yukon XL (2003-2006)
- Hummer: H2 (2003-2007), H3/H3t (2006-2010)
- Isuzu: Ascender/H-Series (2003-2008), I-Series (2006-2008)
- Seann-mhobail: Alero (2001-2004), Bravada (2002-2004), Intrigue (2002), Silhouette (2000-2004)
3. Prìomh fheartan
The AX-ADXSVI-GM3 wiring harness offers the following functionalities:
- Provides accessory (12 volt 10 amp) power.
- Retains R.A.P. (retained accessory power).
- Designed for use in non-amplified systems or when replacing an ampsiostam sgaoilidh.
- Provides NAV outputs (parking brake, reverse, and V.S.S.).
- Includes a prewired ASWC-1 harness (ASWC-1 sold separately).
4. Setup agus Stàladh
Professional installation is highly recommended for this product. Incorrect installation can lead to damage to the vehicle's electrical system or the product itself. Always refer to the vehicle's service manual for specific wiring diagrams and safety precautions.
Ceumannan stàlaidh coitcheann:
- Sàbhailteachd an toiseach: Disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent short circuits and electrical damage.
- Thoir air falbh Rèidio Factaraidh: Carefully remove the factory radio from the dashboard. This may require specialized tools or knowledge of dashboard disassembly.
- Comharraich Uèirleadh Carbaid: Locate the factory wiring harnesses connected to the original radio.
- Connect AX-ADXSVI Interface: Connect the AX-ADXSVI-GM3 harness to the AX-ADXSVI interface (sold separately) as per the instructions provided with the interface.
- Rèidio iar-mhargaidh uèir: Connect the wires from the AX-ADXSVI-GM3 harness to the corresponding wires on your aftermarket radio's harness. Ensure all connections are secure and properly insulated (e.g., using crimp connectors or solder and heat shrink).
- Ceangail ris a’ chàr: Plug the AX-ADXSVI-GM3 harness into the vehicle's factory wiring harness.
- Siostam deuchainn: Before reassembling the dashboard, reconnect the vehicle's negative battery terminal and test the aftermarket radio's functionality, including power, audio, retained accessory power, and navigation outputs.
- Ath-thionndaidh: Once all functions are verified, carefully reassemble the dashboard and secure the aftermarket radio.
5. Stiùireadh Obrachaidh
The AX-ADXSVI-GM3 harness operates automatically once correctly installed and connected to the AX-ADXSVI interface and your aftermarket radio. It provides the necessary electrical signals for the aftermarket radio to function correctly within your vehicle's system.
- Cumhachd accessory: The harness provides a 12-volt, 10-amp accessory output, which turns on and off with the vehicle's ignition, allowing the aftermarket radio to power up and shut down correctly.
- Cumhachd Goireasan Glèidhte (RAP): This feature maintains power to the aftermarket radio for a short period after the ignition is turned off, typically until a door is opened, mimicking the factory radio's behavior.
- Navigation Outputs: The harness provides dedicated outputs for parking brake, reverse, and vehicle speed sense (V.S.S.) signals. These are crucial for aftermarket navigation systems or head units that require these inputs for proper operation and safety features.
6. Cumail suas
The AX-ADXSVI-GM3 wiring harness is designed for a long service life and typically requires no routine maintenance after proper installation. To ensure continued reliable operation:
- Ensure all connections made during installation are secure and free from corrosion.
- Avoid exposing the harness to excessive moisture or extreme temperatures beyond typical automotive conditions.
- Do not attempt to modify or cut the harness wires, as this can void the warranty and lead to system malfunctions.
7. A ’dèanamh trioblaid
If you encounter issues after installing the AX-ADXSVI-GM3 harness, consider the following troubleshooting steps:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Aftermarket radio has no power. | Incorrect wiring connections; Blown fuse; AX-ADXSVI interface not connected or faulty. | Verify all wiring connections between the harness, interface, and radio. Check vehicle and radio fuses. Ensure the AX-ADXSVI interface is properly connected and functioning. |
| Retained Accessory Power (RAP) does not function. | Incorrect wiring; Vehicle not supported for RAP retention; Conflict with other aftermarket wiring. | Double-check the RAP wire connection. Confirm vehicle compatibility for RAP retention with the AX-ADXSVI interface. Ensure no other aftermarket wiring is interfering with the RAP signal. |
| Navigation outputs (parking brake, reverse, V.S.S.) are incorrect or not working. | Incorrect connection to aftermarket radio; AX-ADXSVI interface not providing signals. | Verify the specific navigation output wires are correctly connected to the aftermarket radio's corresponding inputs. Ensure the AX-ADXSVI interface is correctly configured and receiving vehicle data. |
| Factory chimes are still present or other unexpected behavior. | Harness not fully compatible or incorrect installation. | Note that factory chimes will be lost when using this harness. If unexpected behavior occurs, re-verify all connections and ensure the correct harness and interface are used for your specific vehicle model and year. |
If these steps do not resolve the issue, contact a qualified automotive electronics installer or Axxess technical support for further assistance.
8. Sònrachaidhean
- Modail: AX-ADXSVI-GM3
- Brand: Axxess (by Metra)
- Stuth: Copar
- Meudan nì (L x W x H): 9.25 x 4.25 x 2.5 òirleach
- Seòrsa ceangail: Aswc-1 (prewired harness included)
- Seòrsa càball: Uidheam Uèiridh
- Co-phàirtean air an toirt a-steach: Axxess AX-ADXSVI 00-13 GM Harness
- Accessory Power Output: 12 Volt, 10 Amp
- Feartan: Retains R.A.P., Provides NAV outputs (parking brake, reverse, V.S.S.)
- UPC: 086429287109
9. Barantas agus Taic
Fiosrachadh Barantais:
For specific warranty details, including coverage period and terms, please refer to the documentation provided with your purchase or contact Axxess/Metra customer service directly. Keep your proof of purchase for warranty claims.
Taic Teicnigeach:
If you require technical assistance with the installation or operation of your AX-ADXSVI-GM3 harness, please contact Axxess/Metra technical support. Contact information can typically be found on the manufacturer's weblàrach no ann am pasgan toraidh.
Goireasan air-loidhne: Visit the official Axxess or Metra weblàrach airson ùrachaidhean toraidh, ceistean cumanta, agus goireasan taic a bharrachd.
