1. Ro-ràdh
This manual provides detailed instructions for the safe and efficient operation of your VOLTCRAFT 8210 Function Generator. The 8210 is a versatile instrument combining a sweep function, function generator, pulse generator, and frequency counter into a single unit. It is designed for professional use, generating various waveforms with precision.
2. Stiùireadh Sàbhailteachd
Please read these safety instructions carefully before operating the device to prevent injury and damage. Keep this manual for future reference.
- Ceangail an inneal an-còmhnaidh ri ionad cumhachd stèidhichte.
- Na obraich an inneal ann am fliuch no damp cumhachan.
- Dèan cinnteach gu bheil fionnarachadh ceart ann gus casg a chuir air cus teasachadh.
- Na fosgail an inneal casing; chan eil pàirtean sam bith a dh’ fhaodas an neach-cleachdaidh a chàradh a-staigh. Thoir sùil air luchd-obrach teisteanasach airson an t-seirbheis.
- Dì-cheangail an cumhachd mus glan no mus gluais thu an aonad.
- Seachain a bhith a’ cur a-steach voltages exceeding the specified maximum input ratings.
3. Toradh thallview
The VOLTCRAFT 8210 is a versatile 4-in-1 instrument designed for various electronic testing and development applications. It integrates the functionalities of a sweep function generator, a standard function generator, a pulse generator, and a frequency counter.
Prìomh fheartan:
- Four-in-one functionality: Sweep function, function generator, pulse generator, and frequency counter.
- Raon tricead: Generates signals from 0.1 Hz to 10 MHz.
- Cunntas tricead: Measures frequencies from 2 Hz to 100 MHz.
- Waveform Generation: Produces professional-grade rectangular, triangular, and sawtooth signals.
- Toradh Ampaotrom: As àirde amplitude of 20 Vpp (10 Vpp into 50 ohms).

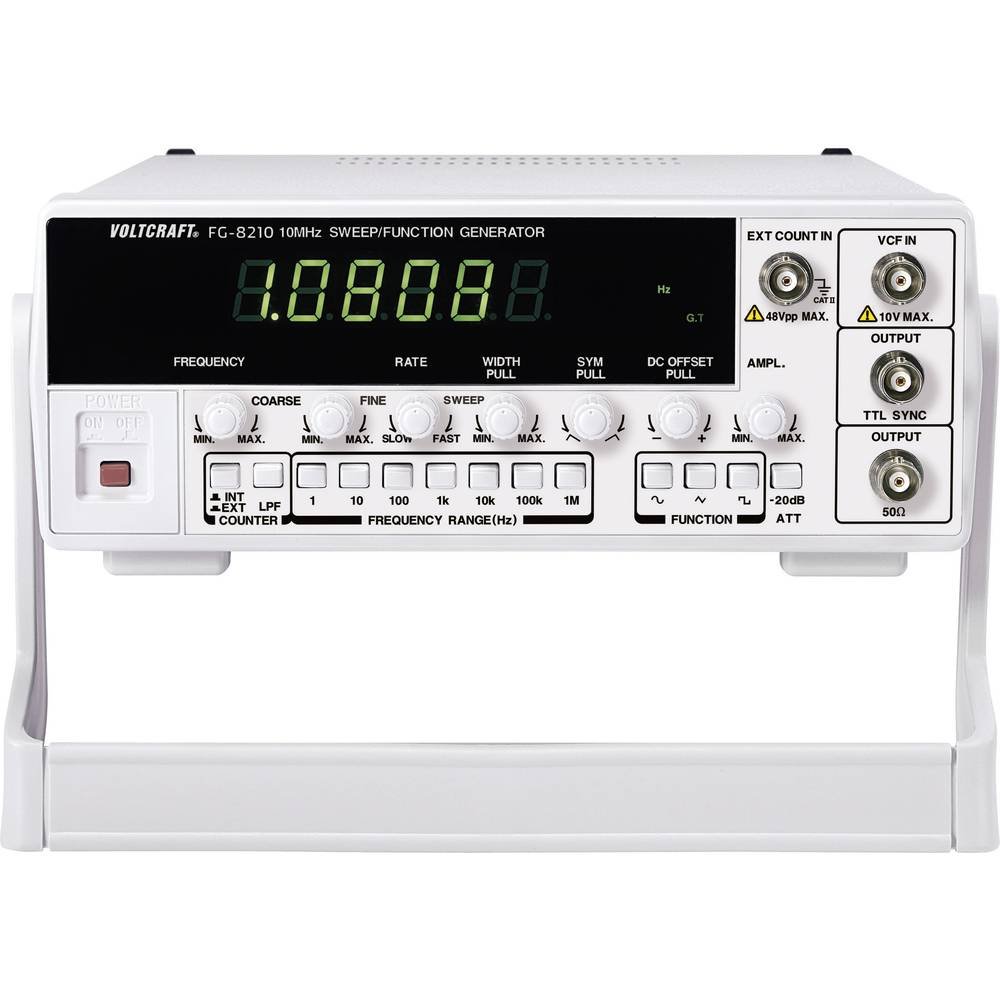

Dealbhan toraidh:
Bhideothan Oifigeil Bathar:
Chan eil bhideothan toraidh oifigeil bhon neach-reic rim faighinn airson an leabachadh an-dràsta.
4. Suidhich
- A' dì-phapadh: Carefully remove the function generator from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or transport.
- Suidheachadh: Place the unit on a stable, flat surface with adequate ventilation around it. Avoid placing it near heat sources or in direct sunlight.
- Ceangal cumhachd: Connect the provided power cord to the power input on the rear panel of the 8210 and then to a suitable grounded AC power outlet. Ensure the power switch is in the OFF position before connecting.
- Cumhachd tùsail air adhart: Flip the power switch to the ON position. The display should illuminate, indicating the unit is receiving power.
- Ceanglaichean toraidh: Connect your test leads or cables to the appropriate output terminals (e.g., BNC connectors for main output, TTL output) on the front panel, depending on your application.
5. Stiùireadh Obrachaidh
This section details the basic operation of the VOLTCRAFT 8210 for its primary functions.
5.1. Function Generator Mode
- Select Waveform: Use the dedicated buttons (e.g., Sine, Square, Triangle) on the front panel to select the desired output waveform.
- Suidhich tricead: Adjust the frequency using the frequency control knob and range buttons. The display will show the current frequency.
- Atharraich Ampaotrom: Cleachd an amplitude knob to set the desired output voltage peak-to-peak (Vpp). Monitor the output with an oscilloscope for precise adjustment.
- DC Offset: If available, use the DC offset control to add a DC bias to the output signal.
- Ceangail Toradh: Connect the main output (e.g., BNC) to your circuit or device under test.
5.2. Sweep Function Mode
The sweep function allows the output frequency to vary automatically over a specified range.
- Activate Sweep: Press the "Sweep" button to enable this mode.
- Set Start/Stop Frequencies: Use the frequency controls to define the lower and upper limits of the sweep range.
- Adjust Sweep Rate: Set the sweep duration or rate using the dedicated control.
- Toradh Monitor: Observe the sweeping signal on an oscilloscope to verify the settings.
5.3. Frequency Counter Mode
The built-in frequency counter measures external signals.
- Select Counter Input: Connect the external signal to the designated frequency counter input terminal.
- Activate Counter: Press the "Counter" or "Freq. Meas." button to switch to frequency measurement mode.
- Tricead Leughaidh: The display will show the frequency of the input signal.
6. Cumail suas
Proper maintenance ensures the longevity and accuracy of your VOLTCRAFT 8210.
- Glanadh: Cleachd clò bog, tioram airson taobh a-muigh an aonaid a ghlanadh. Airson salachar stòlda, cleachd clò beagan tioram.amp Faodar clò le inneal-glanaidh tlàth a chleachdadh, a’ dèanamh cinnteach nach tèid leaghan a-steach don inneal. Na cleachd innealan-glanaidh sgrìobach no fuasglaidhean.
- Stòradh: When not in use for extended periods, store the unit in a dry, dust-free environment, preferably in its original packaging.
- Calibration: Periodic calibration by qualified service personnel is recommended to maintain measurement accuracy, especially for critical applications.
7. A ’dèanamh trioblaid
If you encounter issues with your VOLTCRAFT 8210, refer to the following common problems and solutions:
| Trioblaid | Adhbhar a dh’fhaodadh a bhith ann | Fuasgladh |
|---|---|---|
| Gun chumhachd/Dhùin an taisbeanadh | Power cord disconnected, power switch off, faulty outlet. | Check power cord connection, ensure power switch is ON, test outlet with another device. |
| Gun chomharradh toraidh | Output cable disconnected, amplitude set to zero, incorrect function selected. | Verify output cable connection, increase amplitude, ensure correct waveform/function is selected. |
| Incorrect frequency reading (counter) | Signal too weak, incorrect input range, noisy signal. | Ensure signal amplitude is sufficient, check input range settings, use shielded cables. |
Ma mhaireas an duilgheadas às dèidh dhut na fuasglaidhean seo fheuchainn, cuir fios gu taic luchd-cleachdaidh.
8. Sònrachaidhean
The following are the technical specifications for the VOLTCRAFT 8210 Function Generator:
- Dèanadair: VOLTCRAFT
- Àireamh Modail: 8210
- Cuideam nì: 3 cileagram
- Number of items in package: 1
- Bataraidhean air an toirt a-steach: Chan eil
- Bataraidhean a dhìth: Chan eil
- ASIN: B00EPLFP46
- First Available Date on Amazon.fr: 15 Gearran 2014
- Pàirtean a bharrachd rim faighinn: Fiosrachadh ri fhaighinn mu phàirtean a bharrachd
9. Barantas agus Taic
Information regarding specific warranty terms and conditions for the VOLTCRAFT 8210 Function Generator is not available in the provided product data. Please refer to the documentation included with your purchase or contact VOLTCRAFT customer support directly for warranty details and technical assistance.
For further support, visit the official VOLTCRAFT weblàrach no cuir fios chun na h-ionadan seirbheis ùghdarraichte aca.
