Ro-ràdh
This manual provides comprehensive instructions for the safe and efficient operation of your Memorex MVDP1078 Portable DVD Player. Designed for both home and travel, this device features an 8-inch widescreen TFT LCD display and supports various disc formats including DVD, CD, MP3 CD, and Picture CD. Please read this manual thoroughly before using the player and retain it for future reference.
Feartan toraidh
- 8-inch widescreen TFT LCD display for clear viewing.
- Compatible with DVD, DVD+R/RW, DVD-R/RW, CD-R/RW, CD+R/RW, MP3 CD, and Picture CD formats.
- Built-in stereo speakers for audio playback.
- On-screen graphical user interface for easy navigation.
- Anti-shock protection ensures smooth DVD playback during movement.
- Zoom function for detailed viewing.
- Rechargeable Lithium-Ion battery pack providing up to 2 hours of playback.
- Includes wireless remote control for convenient operation.
- Jack headphone airson èisteachd prìobhaideach.
- AC/DC Adaptor for home and car use.
Susbaint pacaid
Dèan cinnteach gu bheil a h-uile nì anns a’ phacaid:
- Memorex MVDP1078 Portable DVD Player
- Wireless Remote Control
- Adaptor Cumhachd AC / DC
- Car Power Adapter (DC)
- Càball Fuaime/Bhidio (AV)
- Leabhar-làimhe cleachdaiche
Suidhich
1. A 'cur cosgais air a' Bhataraidh
Before initial use, fully charge the built-in Lithium-Ion battery. Connect the AC/DC power adapter to the DC IN 9V port on the player and plug the other end into a standard wall outlet. The charging indicator light will illuminate. A full charge typically takes approximately 3-4 hours and provides up to 2 hours of playback.
2. A ’ceangal ri cumhachd
For continuous operation or to charge the battery, use the provided AC/DC adapter. For in-car use, connect the car power adapter to the DC IN 9V port and the vehicle's 12V power outlet.
3. External Connections (Optional)
To connect the player to an external display or audio system, use the supplied AV cable. Connect one end to the AV OUT port on the player and the other end to the corresponding AV IN ports on your television or audio receiver.
Stiùireadh Obrachaidh
1. A ’toirt cumhachd air / dheth
Sleamhnachadh an CUMHACHD tionndadh gu ON position to turn on the player. The screen will illuminate. To turn off, slide the switch to the AIRSON suidheachadh.
2. Inserting and Removing Discs
- Open the disc compartment cover gently.
- Place a disc onto the spindle with the label side facing up. Ensure the disc is securely seated.
- Close the disc compartment cover until it clicks into place.
- To remove a disc, open the cover, gently press the center spindle, and lift the disc.
3. Smachdan Ath-chluich Bunasach
- CLUICH/STAD (►/−): Press to start or pause playback.
- STAD (■): Press once to stop playback temporarily, press twice to stop completely and return to the disc menu.
- LEUM (◀◀ / ►►): Press to skip to the previous or next track/chapter.
- FAST FORWARD/REWIND (►►► / ◀◀◀): Press and hold to fast forward or rewind through content.
4. Seòladh clàr-taice
Cleachd an ARROWS DÙTHCHAIL (Up, Down, Left, Right) and A steach button on the player or remote to navigate disc menus and settings.
5. Volume Adjustment
Atharraich an tomhas-lìonaidh a ’cleachdadh an TOIRT +/- buttons on the player or remote control.
6. A 'cleachdadh Fòn-cluaise
Plug standard 3.5mm headphones into the CEANN-FHOCAIL jack for private listening. The built-in speakers will automatically mute.
7. Gnìomh Zoom
During DVD playback, press the SÙM button on the remote to cycle through different zoom levels. Use directional arrows to move the zoomed area.
Cumail suas
1. Glanadh an Aonaid
Wipe the exterior of the player with a soft, dry cloth. Do not use liquid cleaners or abrasive materials. Keep the disc compartment free of dust and debris.
2. Cùram Bataraidh
To prolong battery life, avoid fully discharging the battery frequently. Recharge the battery regularly, even if the player is not in use for extended periods. Store the player in a cool, dry place.
3. Cùram Diosc
Handle discs by their edges. Store discs in their cases to prevent scratches. Clean dirty discs with a soft, lint-free cloth, wiping from the center outwards.
Fuasgladh thrioblaidean
Ma thachras tu ri duilgheadasan leis a’ chluicheadair agad, thoir sùil air na duilgheadasan agus na fuasglaidhean cumanta a leanas:
| Trioblaid | Adhbhar / Fuasgladh a dh’fhaodadh a bhith ann |
|---|---|
| Chan eil an cluicheadair a’ tionndadh air. |
|
| Chan eil an diosg a’ cluich / mearachd "Gun diosg". |
|
| Gun fhuaim no meud ìosal. |
|
| Poor picture quality or distorted image. |
|
Sònrachaidhean
| Ainm Brand | Memorex |
| Modail Àireamh | MVDP1085 |
| Meudan toraidh | 5.8 x 12.5 x 10.3 òirleach |
| Cuideam nì | 1 not |
| Meud taisbeanaidh | 8-inch widescreen TFT LCD (diagonal) |
| Cruthan diosc le taic | DVD, DVD+R/RW, DVD-R/RW, CD-R/RW, CD+R/RW, MP3 CD, Picture CD |
| Seòrsa bataraidh | Lithium-Ion rechargeable |
| Beatha bataraidh | Suas ri 2 uairean a thìde |
| Dath | Dubh |
Barantas agus Taic
Memorex products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included with your product or visit the official Memorex weblàrach. Cùm do chuidhteas ceannach mar dhearbhadh ceannach airson tagraidhean barantais.
Bathar seachadview

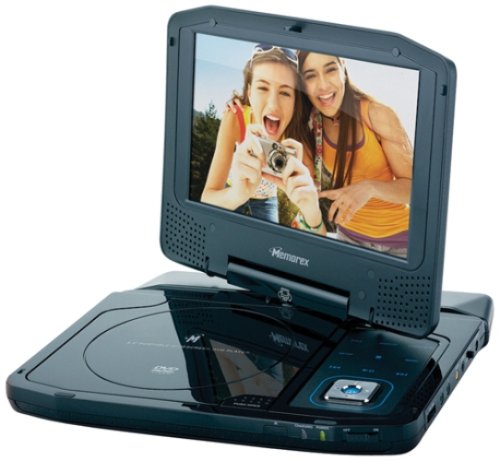

Image: The Memorex MVDP1078 Portable DVD Player shown with its 8-inch screen open, displaying the disc compartment and control buttons. The player is black with a sleek finish.
